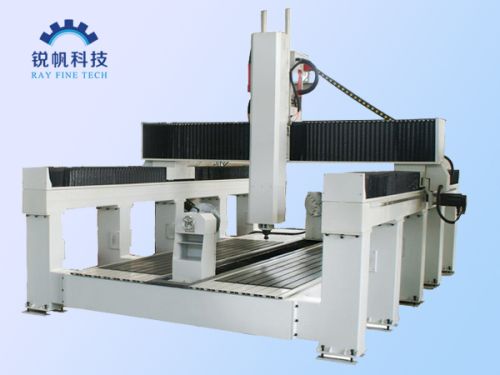

Foam Mold CNC Machine

We are offering foam mold cnc machine.
pefromance:
features:
1. imported widen square-shaped orbit, two-line sliding track, heavy bearing, high precision and high power.
2. z working area can up to 1000mm, extensive processing area, suitable for the large thick materials processing.
3. intelligent anti-transgress-process protection system. This function can prevent machine from crashing when the design zone is beyond the process zone.
4. intelligent processing, traveling and cutting speed control. It can increase the efficiency, so improves the quality of finished products.
application
the foam mold cnc machine is mainly used for the following two industrial fields.
firstly, molds industrial: it engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds, aviation and train wood molds.
secondly, musical instrument industry: engrave 3-d large instruments and shaping
technical specifications:
model rf-2040-f
xy working area 2000x4000mm
z working area >500mm
table size 2200x4500mm
max travel speed 8m-30mmin
processor dspfrequency 100mhz
interface pci card or usb handle
command g code*.u00*.mmg*.plt
surroundings for software windows982000xp
power(not include the spindle) 1500-2000w
working voltage ac220v50hz
spindle power rate 2.2-6.6kw
spindle rotating speed 1800-24000rpmmin
drive motor steper or servo
