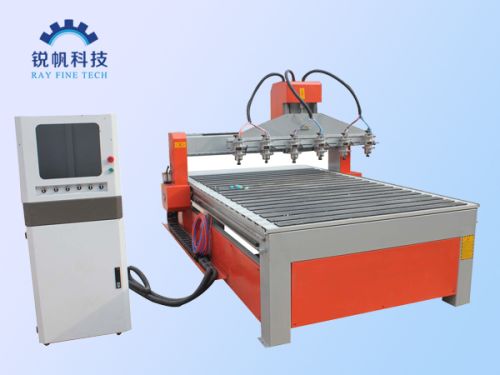

Multi Head CNC Router Machine

We are offering multi head cnc router machine.
Features:
it can be used to engravecarve on both flat and cylinder objects because the table is flexible.
Welded with big and steel tube work more stable without vibration.
Multi-heads working at the same time more efficiency
model
rf-1525-6
structure
welded with big steel tube
no.of spindle
4 spindle heads
x, y axis travelling area
325mm(single head)*4-1800mm
z axis travelling area
200mm
machine size
1800*2080mm
x-y-z movement
high precision ball screw drivegemany
guide
linear squaretaiwan
max.speed
20mmin
max.working speed
15mmin
working precision
0.02mm
repositioning accuracy
0.025mm
engraving command
g code * u00* mmg* plt
software environment
windows982000xp
working voltage
ac220v50-60hz, 2-phase
main spindle power
1.5kw*4 water-cooled motor
main spindle speed
0-24000rpm
driver motor
stepper motor
software
type 3, artcut , artcam software
control system
dsp offline control system
collet
er20-12.7mm,6mm,3.175mm
