Link Electric ( Shenzhen ) Co., Ltd

• MOQ 1 Set(s)
• Measurement PrincipleMECD techonology
• Size 356×75×89 mm

Main Advantages • Non-radioactive source • Low maintenance (calibration every 2 years) and no wear parts • No cross sensitivity to moisture • Unaffected by background contamination • No consumables • High sensitivity for detecting leaks down to 0.1 ppm • Fast response time of 1 second • No influence due to important leaks or 100 % SF6 concentrations • Light weighted and easy to operate Technical Specifications ★Measurement Principle MECD techonology ★Measurement Units Measures in ppm or ml/s Range: 0~1, 000 ppm ★Sensitivity 1 ppm ★Accuracy ± 2 % ★Response T90 = 1 sec. ★Repeatability ★Supply Rechargeable battery ★Alarm Audio and visual ★Temperature Storage: -10 to 60 °C Operating: 0 to 45 °C ★Dimension 356×75×89 mm ★Weight 870g

• MOQ 1 Set(s)

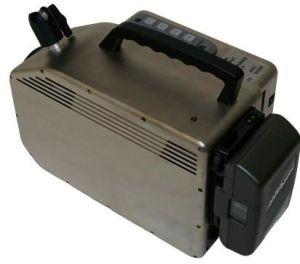

• Measurement PrinciplePhoto-acoustic Spectroscopy
• Dimensions 600×240×210mm

Technical Specification： Measurement Principle： Photo-acoustic Spectroscopy Measurement Gas： SF6 Measurement distance： 0.5~20 m Sensitivity： ≤1×10-6 scc/sec @ 2 m Temperature： -25℃~+55℃ Spectral Range: 10.5 microns FOV： level≥900 perpendicularity≥ 600 F number f/2.38 at 8 microns Focal Length 70 mm at 8 microns Instantaneous Field of View 0.4 mrad Field of View 7.3o x 5.5o Spatial Resolution 320 x 240 pixels Variable Integration 10 discrete settings Minimum leak rate: (

• Volume324*140*326mm
• Relative humidityMaximum 90% RH, without condensation

• MOQ 1 Set(s)

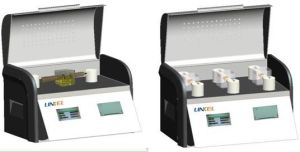

• AdvantagesStable test voltage; not affected by line voltage variations
• Dimension530×460×330mm

• MOQ 1 Set(s)
• AdvantagesCompact, lightweight
• Dimensions500×350×80mm

• MOQ 1 Set(s)
• Size285×195×80mm
• Measurement PrincipleNegatives ion capturing

Main Advantages • Non-radioactive source • Low maintenance (calibration every 2 years) and no wear parts • No cross sensitivity to moisture • Unaffected by background contamination • No consumables • High sensitivity for detecting leaks down to 0.1 ppm • Fast response time of 1 second • No influence due to important leaks or 100 % SF6 concentrations • Light weighted and easy to operate Technical Specification ★Measurement Principle Negatives ion capturing (NIC) ★Measurement Units Measures in ppm, Can be switched to ml/s Range: 0~5, 000 ppm ★Sensitivity 0.1 ppm ★Accuracy ± 2 % ★Response T90 = 1 sec. ★Repeatability ★Operation Rechargeable battery (> 8 hours operation) Recharge between 100~265 AC V 50~60Hz ★Alarm Audio and visual ★Temperature Storage: -10 to 60 °C Operating: 0 to 45 °C ★Dimension Console: 285×195×80mm Handgun: 210×110×90mm ★Weight Console: 2.5 kg Handgun: 0.5 kg

• MOQ 1 Set(s)
• size524× 428 × 206 mm
• featuresFast measuring in the field

• MOQ 1 Set(s)
• Main AdvantagesRapid Response
• Size356 x 75 x 89 mm
