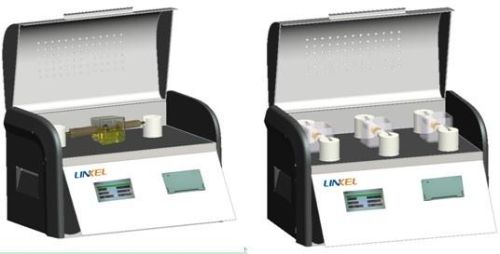

Fully Automatic Oil Dielectric Breakdown Tester

Main Advantages
*Electromagnetic screening - nearby electronic appliances are not affected by any interference
*Selectable test voltages up to 80 kVrms，accurate0.1Kv
*Stable test voltage; not affected by line voltage variations
*User friendly with self-explanatory menu guide and language selection
*Numeric input of sample number and ambient temperature
*Quick breakdown detection and current break time of
*Recall of individual breakdown values
*LCD display or print the results
Directions:
●Model:ODB80, The maximum test voltage 80KVrms，
Single Measurable cup；
●Model:ODB803, The maximum test voltage 80KVrms，
Three Measurable cups；
●Model:ODB100, The maximum test voltage 100KVrms，
Single Measurable cup；
●Model:ODB1003, The maximum test voltage 100KVrms， Three Measurable cups
●Work Voltage:AC90V~240V,50~60Hz,optional
●Power Consumption: 200VA
●Store Temperature: -20℃~ +50℃
●Work Temperature: 0℃~40℃
●Dimension(w*h*d): 530×460×330mm,with lid
●Weight: 32Kg(with test vessel)
