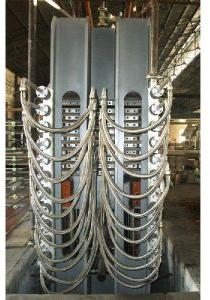

1.hot press plate size:2450x1250x52mm10 sheetsrn2.opening size:100mmrn3.hydraulic pistons:4 unitsdiameter 260mmstroke 1000mmrn4.pressure capacity:600 tonsrn5.hydraulic system:hand and automatic controlrn6.hydraulic system allowed pressure:25mparn7.low pressure pump:250ml/rev11kw motorrn8.high pressure pump:10ml/rev5.5kw motorrn9.heating medium:steam or heat transfer oils.

1.function:press melamine paper onto mdf particle boardrn2.production capacity:1200 sheets in 10 hoursrn3.board loading direction:from 2600mm side of the machinern4.hot platen size:1400x2600x120mmrn5.quantity of hot platens:2 sheetsrn6.quantity of floors:single floorrn7.distance between hot platens:300mmrn8.hydraulic cylinders: 6 units diameter 320mm 2 units diameter 110mmrn9.pressure capacity: 1200 tonsrn10.stroke of hydraulic cylinders: 300mmrn11. Hydraulic cylinders place: top rn12. Hydraulic system pump: 10ml/rev prefill valve manifold blockrn13. Limit pressure: 25 m parn14. Control method: manual and automatic controlrn15. Hot platen closing time: about 5 secondsrn16. Motor power: 5.5kwrn17. In feed method: frequency control loading carrn18. Out feed method: roller bracketrn19. Frame style: combination frame two groups of frames

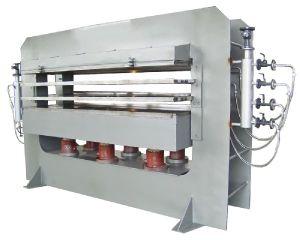

1. Function: press wood veneer onto mdf door panelrn2. Hot press plates size: 2500x1300x42mmrn3. Quantity of hot press plates: 4 sheetsrn4. Quantity of layers: 3 layersrn5. Quantity and diameter of hydraulic rams: 4 units of diameter 140mm rn6. Nominal pressure: 160 tonsrn7. Distance between the hot press plates: 130 mmrn8. Stroke of cylinder: 700 mmrn9. Hydraulic system: semi-automatically controlledrn10. Pressure of hydraulic system: 25mparn11. Main pump: 100:100 double vane pump 7.5kw motorrn12. Pressurized pump: 10ml/rev 5.5kw motorrn13. No load closing time: 13 secondsrn14. Heating medium: in the hot platen heat transfer oil heater or steamrn15. Main frame steel: 20mm 12mmrn16. Frame style: welding framern17. Total weight: 8000kgrn18. Cross beams: 450mm 450mm 300mmrn19. Machine size: 2960x1300x2026mm

1. Quantity of layers: 4 layersrn2. Quantity and diameter of cylinder: 4 units 320mmrn3. Pressure capacity: 400tonsrn4. Stroke of cylinder: 800 mmrn5. Hydraulic system: manually/automatically controlledrn6. Pressure of hydraulic system: 25mparn7. Main motor: 11kwrn8. Pressurized motor: 5.5kwrn9. Main pump: shanghai aviation 250 pumprn10. Pressurized pump: 10ml/revrn11. Heating platen: 2500x1300x52mmrn12. Separation between layers: 200mmrn13. Main frame steel thickness: 40mm22mm12mmrn14. Movable crossbeam: 2500x1300x300mmrn15. Topbottommovable crossbeam: 900800400mmrn16. Heating medium in the hot platen: steam or heat transfer oilrn17. Dimensions: 3460x1300x3878mm

1. Hot press plates size: 2700x1370x52 mmrn2. Quantity of hot press plates: 16 sheetsrn3. Quantity of layers: 15 layersrn4. Hydraulic cylinders: 4 units diameter 280 mmrn5. Pressure capacity: 600 tonsrn6. Separation between layers: 70 mmrn7. Stroke of cylinder:1050 mmrn8. No-load closing time: 30 srn9. Hydraulic system control method: automatic control and hand controlrn10. Hydraulic system limit pressure: 25 mpa (working pressure: 20mpa)rn11. Low pressure pump: 250ml/rev 11kw motorrn12. High pressure pump: 10ml/rev 5.5kw motorrn13. Heating medium in the press plates: steamrn14. Top bottom middle crossbeam: 1000 mm 1000 mm 400 mmrn15. Frame structure: fixed with bolts two portal framesrn16. Size of main frame: 3560x1370x4900 mmrn17. Main frame steel plate thickness: 30 mm 12 mmrn18. Gross weight: 39000 kg
