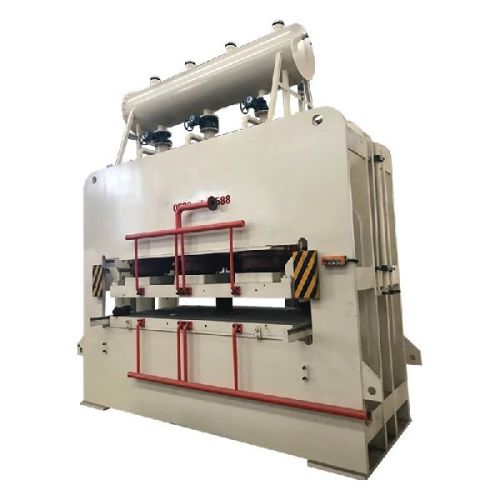

1.function:press melamine paper onto mdf particle boardrn2.production capacity:1200 sheets in 10 hoursrn3.board loading direction:from 2600mm side of the machinern4.hot platen size:1400x2600x120mmrn5.quantity of hot platens:2 sheetsrn6.quantity of floors:single floorrn7.distance between hot platens:300mmrn8.hydraulic cylinders: 6 units diameter 320mm 2 units diameter 110mmrn9.pressure capacity: 1200 tonsrn10.stroke of hydraulic cylinders: 300mmrn11. Hydraulic cylinders place: top rn12. Hydraulic system pump: 10ml/rev prefill valve manifold blockrn13. Limit pressure: 25 m parn14. Control method: manual and automatic controlrn15. Hot platen closing time: about 5 secondsrn16. Motor power: 5.5kwrn17. In feed method: frequency control loading carrn18. Out feed method: roller bracketrn19. Frame style: combination frame two groups of frames
