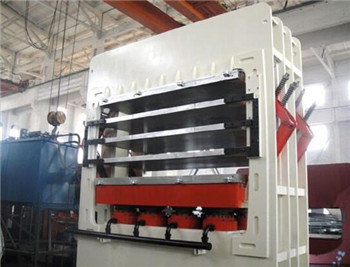

BY21-4x8/800-4 Molded MDF Door Skin Hot Press Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

1. Quantity of layers: 4 layersrn2. Quantity and diameter of cylinder: 4 units 320mmrn3. Pressure capacity: 400tonsrn4. Stroke of cylinder: 800 mmrn5. Hydraulic system: manually/automatically....

View More Details

Send Enquiry

Company Information

Linyi Zhonghe Imp Exp Co Ltd

linyi

View Number

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 2016

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

1. Quantity of layers: 4 layersrn2. Quantity and diameter of cylinder: 4 units 320mmrn3. Pressure capacity: 400tonsrn4. Stroke of cylinder: 800 mmrn5. Hydraulic system: manually/automatically controlledrn6. Pressure of hydraulic system: 25mparn7. Main motor: 11kwrn8. Pressurized motor: 5.5kwrn9. Main pump: shanghai aviation 250 pumprn10. Pressurized pump: 10ml/revrn11. Heating platen: 2500x1300x52mmrn12. Separation between layers: 200mmrn13. Main frame steel thickness: 40mm22mm12mmrn14. Movable crossbeam: 2500x1300x300mmrn15. Topbottommovable crossbeam: 900800400mmrn16. Heating medium in the hot platen: steam or heat transfer oilrn17. Dimensions: 3460x1300x3878mm
