Loly (guangzhou) Co. Ltd.

• MOQ 1 Set(s)
• Brand NameTAIMES

We are offering taimes t8s solvent printer model: t8s-km1024-42pl-8h printing quality: 360dpi printing speed: draft mode 180x720dpi 2pass @ 160sqmh production mode 240x720dpi 2pass @ 120sqmh quality mode 240x1080dpi 3pass @ 80sqmh machine dimension: l4, 601 x w884 x h1, 303 mm; net weight: 540kgs (1, 190lbs) package dimension: l4, 810 x w1010 x h1550mm; gross weight: 680kgs (1, 499lbs); two units in one 20 feet container with 2000l taimes k42 inks four units in one 40 feet container with 4000l taimes k42 inks the advantage of excellent machine frame work specially designed left and right steel side boards for t8s, thickness 8mm, weight 27kgs, bending resist rate is up to 235mpa. It enables machine body bear for maximum 2 tons weight, so as to effectively resist vibration when the carriage is moving fastly, make sure each ink dot drops accurately. 1.konica minolta km1024-42pl14pl（km1024lnbkm1024mnb） printheads, more options taimes t8s printer is applied with konica minolta km1024 super wide printhead, 8 heads cover over 144mm printing width, completely promotes gorgeous colors and hurricane speed. 2.imported 400w panasonic ac servo motor system 3. Ultra wide imported italian megadyne belts with the width 22.23 mm 4.2000w segmented infrared drying system 5.aluminum step large synchronous wheel, much higher resolution and makes high quality. 6.taiwan double slider make the carriage move steady 7.t8s series machine upgraded to a new large ink bottle and high-power ink pump: store more ink, printing more smoothly; more rapid refill ink, longer life 8.the new t8s adopts sliding moisturizing shelf, effectively protects printheads, practical and convenient 9.professional take up system improve work efficiency.

• MOQ 1 Set(s)
• Brand NameTAIMES

We are offering solvent printer. Model: t8s-km1024-14pl-8h printing quality: 720dpi printing speed: draft mode 360x360dpi 2pass @ 104sqmh production mode 360x1080 3pass @ 68sqmh quality mode 360x1080 3pass @ 68sqmh machine dimension: l4, 601 x w884 x h1, 303 mm; net weight: 540kgs (1, 190lbs) package dimension: l4, 810 x w1010 x h1550mm; gross weight: 680kgs (1, 499lbs); two units in one 20 feet container with 2000l taimes k42 inks four units in one 40 feet container with 4000l taimes k42 inks the advantage of excellent machine frame work specially designed left and right steel side boards for t8s, thickness 8mm, weight 27kgs, bending resist rate is up to 235mpa. It enables machine body bear for maximum 2 tons weight, so as to effectively resist vibration when the carriage is moving fastly, make sure each ink dot drops accurately. 1.konica minolta km1024-42pl14pl（km1024lnbkm1024mnb） printheads, more options taimes t8s printer is applied with konica minolta km1024 super wide printhead, 8 heads cover over 144mm printing width, completely promotes gorgeous colors and hurricane speed. 2.imported 400w panasonic ac servo motor system 3. Ultra wide imported italian megadyne belts with the width 22.23 mm 4.2000w segmented infrared drying system 5.aluminum step large synchronous wheel, much higher resolution and makes high quality. 6.taiwan double slider make the carriage move steady 7.t8s series machine upgraded to a new large ink bottle and high-power ink pump: store more ink, printing more smoothly; more rapid refill ink, longer life 8.the new t8s adopts sliding moisturizing shelf, effectively protects printheads, practical and convenient 9.professional take up system improve work efficiency

• MOQ 1 Set(s)
• Brand NameTAIMES

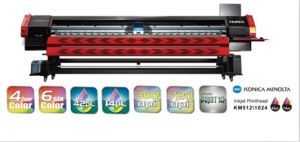

We are offering taimes t5 series solvent printer. model: t5-km512-42pl14pl-8h printing quality: 360dpi720dpi t5-km512-42pl-8h printing speed: draft mode : 180x720dpi 2pass @ 80sqmh production mode: 240x720dpi 2pass @ 60sqmh quality mode : 240x1080dpi 3pass @ 40sqmh machine dimension: l4, 360x w790 x h1, 170 mm; net weight: 420kgs (926lbs) package dimension: l4, 760 x w1000 x h1570 mm; gross weight: 560kgs (1, 235lbs); four units(arm seperated) in one 20 feet container with 2000l taimes k42 inks eight units(arm seperated) in one 40 feet container with 4000l taimes k42 inks (1)new upgrade version tower shaped gear external fixator, one-batch forming, much higher resolution printing, make sure the belt transport more stable, further optimize (2)suction fan layer angle more large, can turn angle according to the material’s angle, can put a large additional area of material under heating up and drying. (3)the waste ink bottle with overflow alarm system (4) in order to improve the anti-interference ability of machine, we upgrade to match it with anti-interference circular in 4 different place. (5)feeding up gear protective cover: protecting the operator or engineer physical security (7) optimize industry common standard t shape frame structure. Machine frames process main bottom frame was wholly milled by german imported 6 meter planer type milling machine, which error is only less than 0.05mm. Double layer trusses welding, bending resistance is far more better than thin metal bending beam. Therefore, taimes printers are able to work more stable and long life than other machines. (8)powerful functions units, ensure machine output stably and effectively all the time.

• MOQ 1 Set(s)
• Brand NameTAIMES

We offer taimes t5-km512-14pl-8h solvent printer. printing model: t5-km512-14pl-8h printing quality: 360dpi720dpi t5-km512-14pl-8h printing speed： draft mode: 360x1080dpi 3pass @ 56sqmh production mode :360x1440dpi 4pass @ 42sqmh quality mode: 720x1440dpi 4pass @ 22sqmh machine dimension: l4, 360x w790 x h1, 170 mm; net weight: 420kgs (926lbs) package dimension: l4, 760 x w1000 x h1570 mm; gross weight: 560kgs (1, 235lbs); four units(arm seperated) in one 20 feet container with 2000l taimes k42 inks eight units(arm seperated) in one 40 feet container with 4000l taimes k42 inks (1)new upgrade version tower shaped gear external fixator, one-batch forming, much higher resolution printing, make sure the belt transport more stable, further optimize (2)suction fan layer angle more large, can turn angle according to the material’s angle, can put a large additional area of material under heating up and drying. (3)the waste ink bottle with overflow alarm system (4) in order to improve the anti-interference ability of machine, we upgrade to match it with anti-interference circular in 4 different place. (5)feeding up gear protective cover: protecting the operator or engineer physical security (7) optimize industry common standard t shape frame structure. machine frames process main bottom frame was wholly milled by german imported 6 meter planer type milling machine, which error is only less than 0.05mm. Double layer trusses welding, bending resistance is far more better than thin metal bending beam. Therefore, taimes printers are able to work more stable and long life than other machines.

• MOQ 1 Set(s)
• Brand NameTAIMES

We are offering solvent printer. Product: taimes t200 solvent printer model: bluex200-km1024-42pl-16h printing quality: 360dpi printing speed: draft mode 180x720dpi 2pass @ 332sqmh production mode 240x720dpi 2pass @ 246sqmh quality mode 240x1080dpi 3pass @ 168sqmh machine dimension: l5, 500 x w1, 300 x h2, 030mm; net weight: 3000kg±15kg (6, 614lbs) package dimension: l6, 800 x w1, 800 x h2, 200mm; net weight: 3500kg±15kg (7, 715lbs); one unit in one 40 feet standard container 1.with 3 tons of high quality metal materials and countless precision components, taking 20 months, taimes invents such super production and reliable digital printing machine - bluex200. 2.bluex100 printer is applied with konica minolta km1024 super wide printhead, 16 heads cover over 288mm printing width, completely promotes gorgeous colors and hurricane speed. 3.the industry's most: 16384 printing nozzles, incredible printing speed 4.the industry's biggest: diameter 220mm rubber stepping roller 5.the industry's widest: 380mm super wide aluminum alloy printing platform 　extra front guiding roller 6.the industry's longest: over 2m vertical way drying system 7.reliable: japanese and german technology negative-pressure ink system 8.powerful: panasonic ac servo motor 9.sophisticated: german original eisle brand redactor 10.professional: ensure continuously mass production output

• MOQ 1 Set(s)
• Brand NameTAIMES

We are offering eco solvent printer. Product: taimes industrial eco-solvent printer model: t2r-km1024-6plx4h printing quality: 1440dpi printing speed: draft mode 360x1080dpi 3pass @ 48sqmh production mode 360x1440dpi 4pass @ 36sqmh quality mode 720x1440dpi 4pass @ 18sqmh machine dimension: l3, 360x w790 x h1, 170 mm; net weight: 420kgs (926lbs) package dimension: l3, 760 x w1000 x h1570 mm; gross weight: 560kgs (1, 235lbs); four units t2r (arm separated) in one 20 feet container with 4500l taimes k6 eco solvent inks twelve units t2r (arm separated) in one 40 feet container with 3500 l taimes k6 eco solvent inks 1. Really reliable industrial printhead: km1024-6pl（km1024shb) ( 8 levels grey scale. Variable sized droplet technology, three models:4pl, 12pl, 24pl. ) 2.powerful functions units, ensure machine output stably and effectively all the time 3. Real industrial mechanical design, the frame strong, stable, reliable （1）optimize industry common standard t shape frame structure. The machine body net weight is 400kgs, genuine the industrial level and more reliable. Main bottom frame was wholly milled by german imported 6 meter planer type milling machine, real high resolution mechanical structure: the girder left right be at errors of _+0.02mm (2) the whole machine is applied with stainless steel screws to lock each component firmly. They still stay firm and clean even after many years, maintain machine’s value. (3) sliding moisturizing frame for printhead (4) leadshine 200w xy axis double servo motor and driver. High precision, steadiness and long-time use. (5)steel led aluminum light for all stainless ink-waste-tank and printing platform, corrosion-resistant and durable. (6) up-grade of direct axis stepper and press roller assembly, and adopt the japanese imported ezo and nsk bearing. The structure of qualified bearing is more solid. Make the step more precise and convenient connection.
