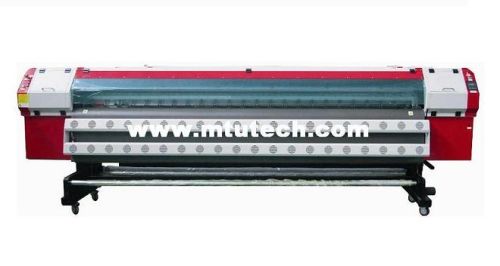

Light-duty B Konica Solvent Printer, Packaging Type : CMYK

It realizes high resolution of 1440dpi at 36 sqm for close –viewing signage. And print can be made at 65 sqm. It is perfect combination of image quality and high speed.
model kn3308lb kn3306lb kn3304lb kn2508lb kn2506lb kn2504lb kn1808lb kn1806lb kn1804lb
printing width(m) up to 3.2m/126(in) up to 2.6m/102（in） up to 2.2(m)/87(in)
print head konica-km512(42pl/14pl) konica-km512mn(42pl)
print head quantity 4*2 6*1 4*1 4*2 6*1 4*1 4*2 6*1 4*1
printing resolution hight quality720 dpi/1440dpi hight quality720 dpi
printing speed draft 160m2/h 80m2/h 80m2/h 146m2/h 74m2/h 74m2/h 122m2/h 62m2/h 62m2/h
standard 80m2/h 40m2/h 40m2/h 72m2/h 36m2/h 36m2/h 58m2/h 30m2/h 30m2/h
high quality 45m2/h 22m2/h 22m2/h 37m2/h 18m2/h 18m2/h 32m2/h 18m2/h 18m2/h
print head height 2-4mm adjustable
rip software wasatch/photoprint/maintop
dimensions(printer) l4600*w750*h1250mm/416.5kg l4110*w750*h1250mm/376kg l3410*w750*h1250mm/330.5kg
print mode uni/bi direction
media type pvc banner/vinyl coating film/mesh/fabrics/paper
heater front,middle and post equipped
ink type solvent/eco -solvent
print head controls printhead temperature and voltage are software adjustable
power single phase,220v±10%＞10a,50/60hz
work environment temperature 18.0℃-28.0℃
humidity 40%-60%rh
interface pci high speed card
printhead cleaning positive pressure print head cleaning
auto feeding and take-up equipped
