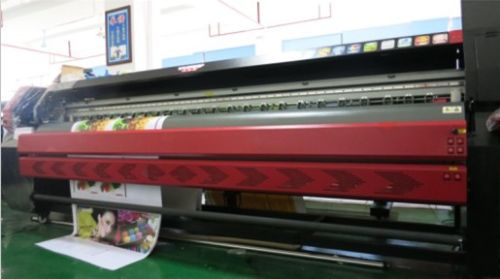

Taimes T8s-km1024-42pl-8h Solvent Printer

We are offering taimes t8s solvent printer
model: t8s-km1024-42pl-8h
printing quality: 360dpi
printing speed:
draft mode 180x720dpi 2pass @ 160sqmh
production mode 240x720dpi 2pass @ 120sqmh
quality mode 240x1080dpi 3pass @ 80sqmh
machine dimension: l4,601 x w884 x h1,303 mm; net weight: 540kgs (1,190lbs)
package dimension: l4,810 x w1010 x h1550mm; gross weight: 680kgs (1,499lbs);
two units in one 20 feet container with 2000l taimes k42 inks
four units in one 40 feet container with 4000l taimes k42 inks
the advantage of excellent machine frame work
specially designed left and right steel side boards for t8s, thickness 8mm, weight 27kgs, bending resist rate is up to 235mpa. It enables machine body bear for maximum 2 tons weight, so as to effectively resist vibration when the carriage is moving fastly, make sure each ink dot drops accurately.
1.konica minolta km1024-42pl14pl（km1024lnbkm1024mnb） printheads, more options
taimes t8s printer is applied with konica minolta km1024 super wide printhead, 8 heads cover over 144mm printing width, completely promotes gorgeous colors and hurricane speed.
2.imported 400w panasonic ac servo motor system
3. Ultra wide imported italian megadyne belts with the width 22.23 mm
4.2000w segmented infrared drying system
5.aluminum step large synchronous wheel, much higher resolution and makes high quality.
6.taiwan double slider make the carriage move steady
7.t8s series machine upgraded to a new large ink bottle and high-power ink pump: store more ink, printing more smoothly; more rapid refill ink, longer life
8.the new t8s adopts sliding moisturizing shelf,effectively protects printheads, practical and convenient
9.professional take up system improve work efficiency.
