Mulansphere Co.,Ltd.

Shanghai, China

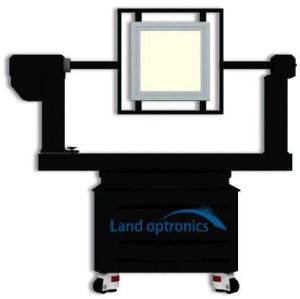

We offer Landg-1800A Goniophotometer of Rotating Luminaire. Functions: In LANDG-1800A goniophotometer, there are horizontal axis and vertical axis to drive the tested luminaire rotating in coordinate system (single pillar), or in coordinate system (double pillars). Specifications: 1) Photodetector:Fine V(λ), correction CIE-f1' less than 0.015, Temperature stabilized at 35� 2) Photometric resolution: 0.00001lx, 0.0001lx, 0.001lx (Optional) 3) Angle accuracy: 0.1°; Resolution: 0.002° 4) Max Capacity of tested luminaires:Weight:50kg Dimension:1.4m x 1.6m Power:ACDC 600V10A x 6 lines 5) Wireless reference photodetector for compenstating light fluctuation

We offer Ptfe Integrating Sphere. Specifications: 1)Internal DIA:25mm, 38mm, 50mm 2)Range of the reflectance:200nm-2500nm 3)The reflectance:90%-98% 4)The structure outside:The material always be aluminium alloy and it can be customized Features: The coating in this series is named "PTFE", the molding technique of the coating material power die casting.This coating has many advantages like reflectence, wide range of wave, easy to clean, good weather ability and so on.It is acclaimed in the area of the integrating sphere.There are three models now in our company.They are MSPD1-0025, MSPD1-0038, MSPD1-0050(1in, 1.5in, 2in). The biggest difference of the sphere between this series and other series is that the interna coating is made of the material striaghtly, and then we install the external shell to it .When doing the common sphere usually we first do the sphere shell and then spray the coating to the internal surface of the shell.So in the structure, the coating is very strong and it never drop out and goes yellow theoretically.When using thesphere, the principle is same as the common sphere. Perfornmance indictors: 1) Lifetime of machinery:10years 2) Lifetime of diffuse reflective coating:5years 3) Stability:Room temperatureHigh temperature 4) Humility:20-80%RH 5) Storage Conditiion:RainDust proof

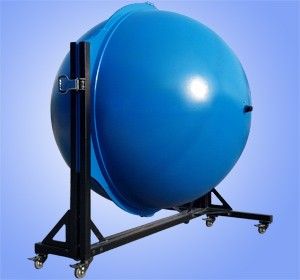

We offer Carboon Integrating Sphere. Specifications: 1) It has a great advantage that it can be segregated and be composed only through the six screws which are attached on the trestle.And after it is segregated, the width of the half sphere will be less than 800mm.So it can be conveniently transported through the narrow doorway. 2) Inside there is a multifunctional stage in the center of the sphere.This stage can install variety of lamps.The common lights like E40, E27, T5, T8, T10 and some non-target lights can be intalled on it easily. 3) The pulley construction Nowadays the circulating sphere uses foot to fix and support itself, so it becomes very inconvenient when the sphere need be transported and moved.To fix this problem we design the brand new sphere, we use pulley to replace the foot.It only need a little strength to move the new sphere.Moreover, when we are using the former we need lift our foot to intall the lamps and this will cause stumble or other problems.The brand new sphere perfectly avoids the above problems. 4） Selection of parts To meet the different demands of our customers, we provide multiple parts like import pulley, adjustable center lamppost, aluminum alloy stand, different coatings and so on. This time we design a brand new series of integrating sphere to meet the stringent requirements of the transportation.Moreover, you can decide if the sphere need a port whose diameter is 500mm to carry on the 2π measurement.

We offer Integrating Sphere. Specifications: 1) This type is not widely used in our country, it is designed for our foreign customers.And it usually be customed according to the demands of our customers.Compared with the 1M iron one which used in the domestic, it is very pretty and practical. 2) Internal DIA is 1000mm.We provide the centre stage, it can be installed both on the up and down port.Certainly, the stage is height adjustable.About the lamp fixtures, we usually provide lamp fixture like E40、E27、E14, these fixtures can be installed on the stage easily. Additionaly, if our design can't meet you demands, just tell us the demands, we have enough experience to custom a sphere. 3) Selection of parts To meet the different demands of our customers, we provide multiple parts like adjustable center lamppost, different coatings and so on.

We offer 2M Integrating Sphere. This one belongs to the High-end series, it can be compared with the imported integrating spheres.The sphere was made of aluminum alloy through spinning.On the outer surface it is the enamel paint.So the whole sphere looks very pretty and the weight of it is very small.Compared to the iron one, there is a huge upgrade on the design as well as on the details.both 2pi and 4pi can be realized on this sphere.and this type can easily be separated so the small door will be no problem. Specifications: 1) internal diameter:2000mm 2) meterial of the sphere:aluminium alloy 3) internal coating:Baso4 4) outside 2pi hole:700mm

We offer Lts-1500 Integrating Sphere Spectroradiometer (spectrometer)system. Introduction: LTS-1500 System meets the following standards: CIE NO.127, CIENO.15, SJ T 2355, GB T 7922-2003, GB T 8417-1987 and others, uses the international advanced full-spectrum method to measure the spectral power distribution of samples of various LED, includes x, y chromaticity coordinates, CCT, CRI(color rendering index), color tolerance, variation, purity, dominant wavelength, luminous flux, radiant power, luminous efficacy and other parameters. Corresponding voltage, current, power, power factor and other parameters can be also measured by applied corresponding meters. Test and data processing software has both language of English and TS Chinese, also can calculate and print all measurement parameters. Data and analysis results can be PDF and other formats reports. Advantages： (1) Integrated design, to provide professional, standardized and efficient integration services; (2) Using the most accurate spectroscopic measurements: fast CCD spectrometer with high precision, measurement in milliseconds; (3) Totally solution: equipped with 0.3m and 1.5m sphere, covering all kinds of sources and lamps test; equipped with auxiliary-lamp to text self-absorption value; (4) Automatism Design : scaling to support one-step calibration, and one-step measure; (5) Advanced technology, the sphere is made by the spinning , no butt joints, to ensure higher accurate; (6) Optional : High reliable industrial machine Specifications: (1) integrating sphere: standard 1.5m and 0.3m integrating sphere (special can be customized), with a laser-assisted devices; (2) spectral range: 380nm ~ 780nm, 1nm interval measurement and analysis; (3) Wavelength accuracy: 0.3nm; (4) Measurement speed: 3ms ~ 2000ms; (5) The CCT range: 1000K ~ 100000K, resolution better than 0.1K; (6) Flux range: 0.01lm-106 lm (integrating sphere according to size); (7) Flux Accuracy: 2%; (8) Color accuracy: ≤10K (standard light);
