Spectroradiometer Integrating Sphere

We are offering spectroradiometer integrating sphere compact system.

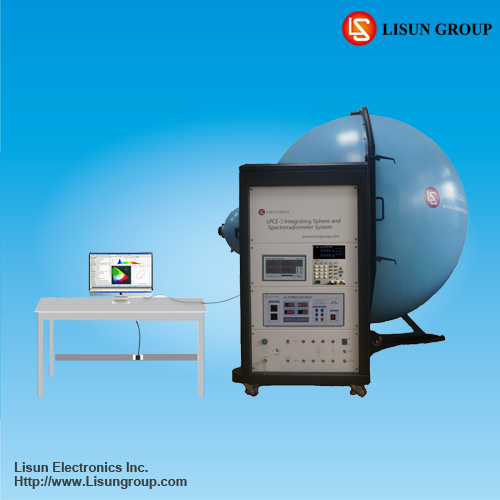

Lpce-3 is a ccd spectroradiometer integrating sphere compact system for led testing. It is suitable for photometric and colorimetric measurement of luminaries such as leds, led luminaires, energy-saving lamps, fluorescent lamps, hid lamps (high voltage sodium lamps and high voltage mercury lamps) and ccfl. The measured data meets the requirements of cie, en and lm-79 clause 9.1 for the measurement of photometry and colorimetry.
System configuration:
ccd spectroradiometer (lms-7000), optical fiber (cfo-1.5m), digital power meter (ls2008r), dc power source (dc-s series), ac power source (lsp-500vas), integrating sphere (is-1.5ma and is-0.3m), standard light source (sls-50w and sls-10w)
measures:
• colorimetric: chromaticity coordinates, cct, color ratio, peak wavelength, half bandwidth, dominant wavelength, color purity, cri, spectrum test
• photometric: luminous flux, luminous efficiency, radiant power
• electrical: voltage, current, power, power factor
specification:
• spectral range wavelength: 380nm~800nm (200~1050nm can be option)
• spectral wavelength accuracy: ±0.5nm wavelength reproducibility: ±0.5nm
• sample scanning steps: ±0.1nm
• accuracy of chromaticity coordinate (δx, δy): ±0.003
• correlated color temperature cct: 1,500k~25,000k. Cct accuracy: ±0.5%
• color rendering index range: 0~100.0, accuracy: ±(0.3%rd±0.3)
• photometric linear: ±0.5%
• stray light:
