High Precision Spectroradiometer Integrating Sphere

We are offering lpce-2 high precision spectroradiometer integrating sphere system.
Lpce-2 is an integrating sphere spectroradiometer led testing system for identifying the performance of single leds and led lamps. Led's quality should be tested by checking its photometric, colorimetric and electrical parameters. According to cie127-1997, ies lm-79-08 and ies lm-80-08, it recommends to using an array spectroradiometer with integrating sphere to test ssl products. The lpce-2 system is applied with a ccd spectroradiometer (lms-9000b or lms-9000a) and worked with a molding integrating sphere with testing holder base function which will be more circle and the test results will be more accurate than the traditional integrating sphere.
System configuration:

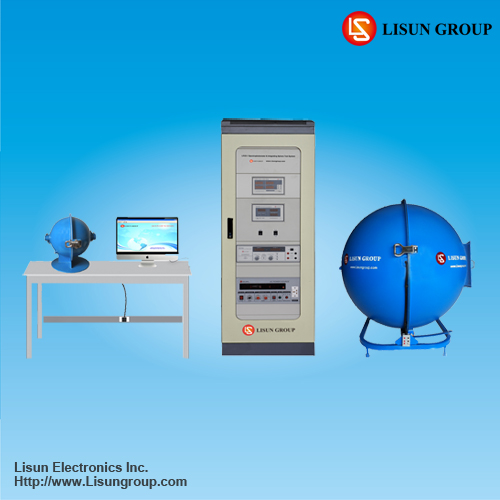

high precision ccd spectroradiometer (lms-9000b or lms-9000a), optical fiber (cfo-1.5m), digital power meter (ls2012 or ls2010), dc power source (dc series), ac power source (lsp-500var or lsp-1kvar), integrating sphere (is-1.5ma and is-0.3m), standard light source (sls-50w and sls-10w), optical path converter (ls512b), 19 inch cabinet (case-19in)
measures:
• colorimetric: chromaticity coordinates, cct, color ratio, peak wavelength, half bandwidth, dominant wavelength, color purity, cri, spectrum test
• photometric: luminous flux, luminous efficiency, radiant power, pupil flux, pupil flux efficiency, pupil factor, cirtopic flux
• electrical: voltage, current, power, power factor (option: vf, if, vr, ir)
• led optical maintenance test according to lm-80: flux vs time, cct vs time, cri vs time, power vs time, power factor vs time, current vs time and flux efficiency vs time.
