QINGDAO GUIHE TECHNOLOGY CO.,LTD

QINGDAO, China

• MOQ 1 Set(s)
• Brand NameGUIHE
• Power Supply+24~26VDC
• ApplicationPETROL STATION
• Accuracy0.3MM
• MediumFUEL
• Titles of mediumGasoline, diesel, kerosene, ethanol , water etc.
• Explosion-proof gradeExiaIIBT4 (Intrinsically safe)
• OutputDIGITAL
• Measured VariableProduct level, interface level and temperature of 5 sensors and average temperature
• Country of OriginSHANDONG
• Level Accuracy±0.3mm
• InstallationIN TANK
• Model NumberSYW-A
• PurposeTo measure product level, water level and temperature

• MOQ 1 Piece
• Measuring range600-4000mm
• Accuracy0.3

• Length0-15M
• Brand NameGUIHE
• Country of OriginChina
• Model NumberSYW-A

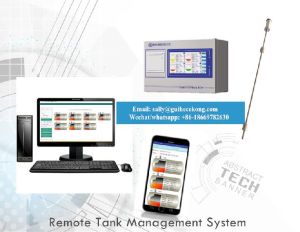

Magnetostrictive liquid level meter (tank gauging system) for gas stations produced by guihe consists of probe and touch control console. There are three different plans to satisfy different customers according to their effective demands.

• MOQ 1 Set(s)
• Brand NameGUIHE
• Applicationfuel and water leak detect
• Namedouble wall tank leak detector
• Model NumberSYW-E
• Country of OriginChina

• MOQ 1 Set(s)
• Capacity accuracy≤±3‰

This system consists of tank volume table calibration instrument, liquid level meter, special software and computer. Fill the tank up, pump out the product to another tank or tanker though the tank volume table calibration instrument, the product volume would be calculated automatically and the data would be uploaded to computer. Meanwhile, the data of product level collected by liquid level meter uploaded to computer as well. According to the data uploaded, the special software will do analyze and process, and finally generate an accurate electronic volume table. Performance item gh-300 tank volume table calibration system purpose tank volume table calibration medium gasoline, diesel, kerosene, ethanol etc. State of medium liquid explosion-proof grade diibt4 pressure range -0.02mpa~0.6 mpa certificate pcec conformity certificate of explosion-proof permit of manufacture measuring instruments temperature -40ã¢ï¿½ï¿½ã¯â½ï¿½70ã¢ï¿½ï¿½ volume accuracy 3ã¢ï¿½â°~5ã¢ï¿½â° product level accuracy ã�â±0.2mm temperature accuracy ã�â±0.2ã¢ï¿½ï¿½ height resolution 0.01mm repeatability ã�â±0.1mm environmental temperature effect error

• MOQ 1 Piece(s)
• Capacity accuracy≤±3‰

System advantages (1)the system is easy to operation and learn. (2)the system has a good intellectual ability. After measure, the tank table will be printed automatically, without manually simulating the dead zone in the sides of the oil tank. (3)flexible configuration, the apparatus can be connected with the computer. Then, the operations like monitoring the status of calibration machine or printing the tank table can be done indoor. You can choose not to connect with the computer, then we can check the status from the control panel of the calibration machine in time. After operation, the data in the memory card can be copied to computer, and create the tank table through system software. (4)light weight, small size for easy transportation, assembling and operation. (5)the flow meter accuracy can be calibrated and fine adjusted for avoiding the errors after long-time usage. (6)data base can backup automatically. After data gathering, the data base will backup automatically in the folder named "history data" under the system installation path so that the operator can be renewed and revised.
