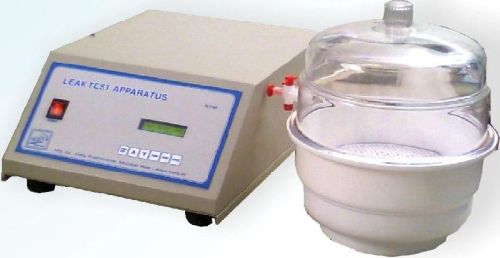

Vacuum Leak Detection System

Vacuum Leak Detection System (HLT-03) is being manufactured, supplied and exported all over overt the world. Vacuum Leak Detection System is made using the high-grade raw materials in our manufacturing unit. Owing to the rugged construction and high-efficiency, Vacuum Leak Detection System is widely demanded UK and Asian markets.
For Blisters And Other Packaging :
The Vacuum Leak Detection System HLS – finds smallest leaks and hole in tablet blisters and other flexible, semi-rigid packages. Vacuum, test and penetration time are adjustable and can be stored into a database. This ensures that identical products will always be tested with the same parameters so that test is repeatable.
Salient Features :

• 16 x 2 cm large size numerical LCD display.
• Fully micro controlled operation.
• Continues display of process valve along with vacuum level.
• Vacuum and time be programmed.
• Automatic release of vacuum from desiccator after completion of process with audio alarm.
• Low power consumption.

Optional : Data memory with Rs 232C for print option along with batch no. (8 digit)
The Hold Mode :
The hold mode is divided into the following phases :

• Evacuation of the desiccator.
• The test time for vacuum exposure will stress the package to exact periods.
• Venting the desiccator.
• The blister pack remains under atmospheric pressure. This ensures that the dye penetrates into fine capillaries.
