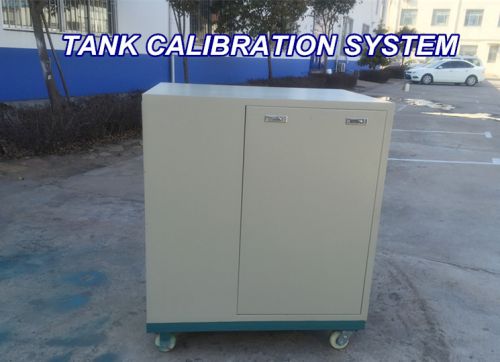

Petrol Station Fuel Stoage Tank Calibration System With ATG

This system consists of tank volume table calibration instrument, liquid level meter, special software and computer. Fill the tank up, pump out the product to another tank or tanker though the tank volume table calibration instrument, the product volume would be calculated automatically and the data would be uploaded to computer. Meanwhile, the data of product level collected by liquid level meter uploaded to computer as well. According to the data uploaded, the special software will do analyze and process, and finally generate an accurate electronic volume table.
Performance
item gh-300 tank volume table calibration system
purpose tank volume table calibration
medium gasoline, diesel, kerosene, ethanol etc.
State of medium liquid
explosion-proof grade diibt4
pressure range -0.02mpa~0.6 mpa
certificate pcec conformity certificate of explosion-proof permit of manufacture measuring instruments
temperature -40ã¢ï¿½ï¿½ã¯â½ï¿½70ã¢ï¿½ï¿½
volume accuracy 3ã¢ï¿½â°~5ã¢ï¿½â°
product level accuracy ã�â±0.2mm
temperature accuracy ã�â±0.2ã¢ï¿½ï¿½
height resolution 0.01mm
repeatability ã�â±0.1mm
environmental temperature effect error
