Qingdao Giant Cnc& Laser Equipment Co. ltd

jinan, qingdao, China

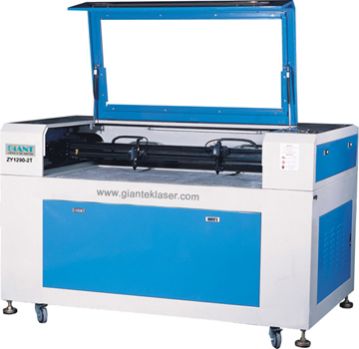

We are offering laser cutting machine zy1290-2t. product name : laser cutting machinemodel number : zy1290-2tplace of origin : china featuresmachine with double laser beam. More strong power. Multiple improved efficiency. It is best use for clothing, leather and acrylic etc. 2. the working table can be choose fixed or lifting type .it is optional for platform in honeycomb and strips type. specificationlaser type: sealed co2 laser tubelaser power: 80w, 100w, 130woptionalavailability working area: 1200mm x 900mmtable mode: fixed honeycomb table/strip table (movable table optional)cutting speed: 0 25000mm/min resetting accuracy: 0.05mmworking voltage: ac220v10% 50hz/ ac110v10% 60hzgross power :

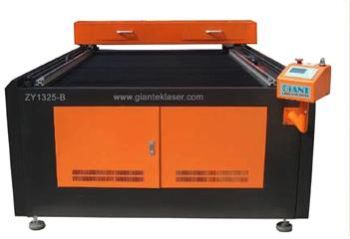

Product Name: Laser cutting MachineModel Number: ZY1325-BPlace of Origin: ChinaFeatures1. Adapt high precision guide screw transmitting for Y axis its can move in fast cutting speed and high precision2. Using high accuracy and 3 phase stepper motor to .running smooth high Precision and more speed.SpecificationLaser type: Sealed CO2 laser tubeLaser power: 80W, 100W, 130W, 150W optionalAvailability working area: 1200mm X 2450mmTable mode: Fixed honeycomb table/Strip tableCutting speed: 0 25000mm/min Resetting accuracy: 0.05mmWorking voltage: AC220V10% 50HZ/ AC110V10% 60HZGross power :< 2000WOperating humidity5%-95%Operating temperature:0-45Minimum character: 1X1mmFile format supported: BMP, HPGL, PLT, DST, DXF, NC & AI ETC.cut by color separation:reaches 256 color for cuttingDriving motor: StepperCooling mode: Water-cooling and protection systemControlling system): DSP Controlling systemCompatible software: CorelDraw/AutoCAD/PhotoshopExhaust equipment: Powerful Exhaust and pipeMachine dimension: 3000mm X 1620mm X 1000mmMachine weight: 450KgOptional accessories Chiller, Rotary attachment, Air filterApplicable materials:Wood, bamboo, jade, marble, marble, organic glass, crystal, plastic, garments, paper, rubber ceramic, glass and other nonmetal materialsApplicable industries:Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry

We are offering laser cutting machine zy1610. product name : laser engraving machinemodel number : zy1610place of origin : china features1. the unique decelerate design make the mechanical system move stably and smoothly, the edge of cutting is smooth and there is no sawtooth the software adopts continuous curve method to get faster cutting speed 2. Small laser facula and small cutting slot. specificationlaser type: sealed co2 laser tubelaser power: 80w, 100w, 130w optionalavailability working area: 1600mm x 1000mmtable mode: fixed honeycomb table/strip table (movable table optional)cutting speed: 0 25000mm/min resetting accuracy: 0.05mmworking voltage: ac220v10% 50hz/ ac110v10% 60hzgross power :< 2000woperating humidity5%-95%operating temperature:0-45minimum character 1x1mmfile format supported: bmp, hpgl, plt, dst, dxf, nc & ai etc. cut by color separation): reaches 256 color for cuttingdriving motor: steppercooling mode: water-cooling and protection systemcontrolling system: dsp controlling systemcompatible software: coreldraw/autocad/photoshopexhaust equipment: powerful exhaust and pipemachine dimension: 2100mm x 1600mm x 1050mmmachine weight: 450kgoptional accessories chiller, rotary attachment, air filter applicable materials:wood, bamboo, jade, marble, marble, organic glass, crystal, plastic, garments, paper, rubber ceramic, glass and other nonmetal materialsapplicable industries:advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry

Product Name: Laser cutting MachineModel Number: ZY1325-SPlace of Origin: ChinaFeatures1. this machine with high laser power the working table can be 2450mm1220mm it is best for large size of clothing and leather 2. The edge of cutting is smooth and there is no sawtoothSpecificationLaser type: Sealed CO2 laser tubeLaser power: 80W, 100W, 130W, 150W/optionalAvailability working area): 1200mm X 2450mmTable mod: Fixed honeycomb table/Strip tableCutting speed: 0 25000mm/min Resetting accuracy: 0.02mmWorking voltage: AC220V10% 50HZ/ AC110V10% 60HZGross power :< 2500WOperating humidity5%-95%Operating temperature:0-45Minimum character 1X1mmFile format supported: BMP, HPGL, PLT, DST, DXF, NC & AI ETC.cut by color separation: reaches 256 color for cuttingDriving motor: StepperDriving mode: Screw rod drivingCooling mode: Water-cooling and protection systemControlling system: DSP controlling systemCompatible software: CorelDraw/AutoCAD/PhotoshopExhaust equipment:/Powerful Exhaust and pipeMachine dimension: 3200mm X 1680mm X 1000mmMachine weight: 500KgOptional accessories Chiller, Rotary attachment, Air filterApplicable materials:Wood, bamboo, jade, marble, marble, organic glass, crystal, plastic, garments, paper, rubber ceramic, glass and other nonmetal materialsApplicable industries:Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry

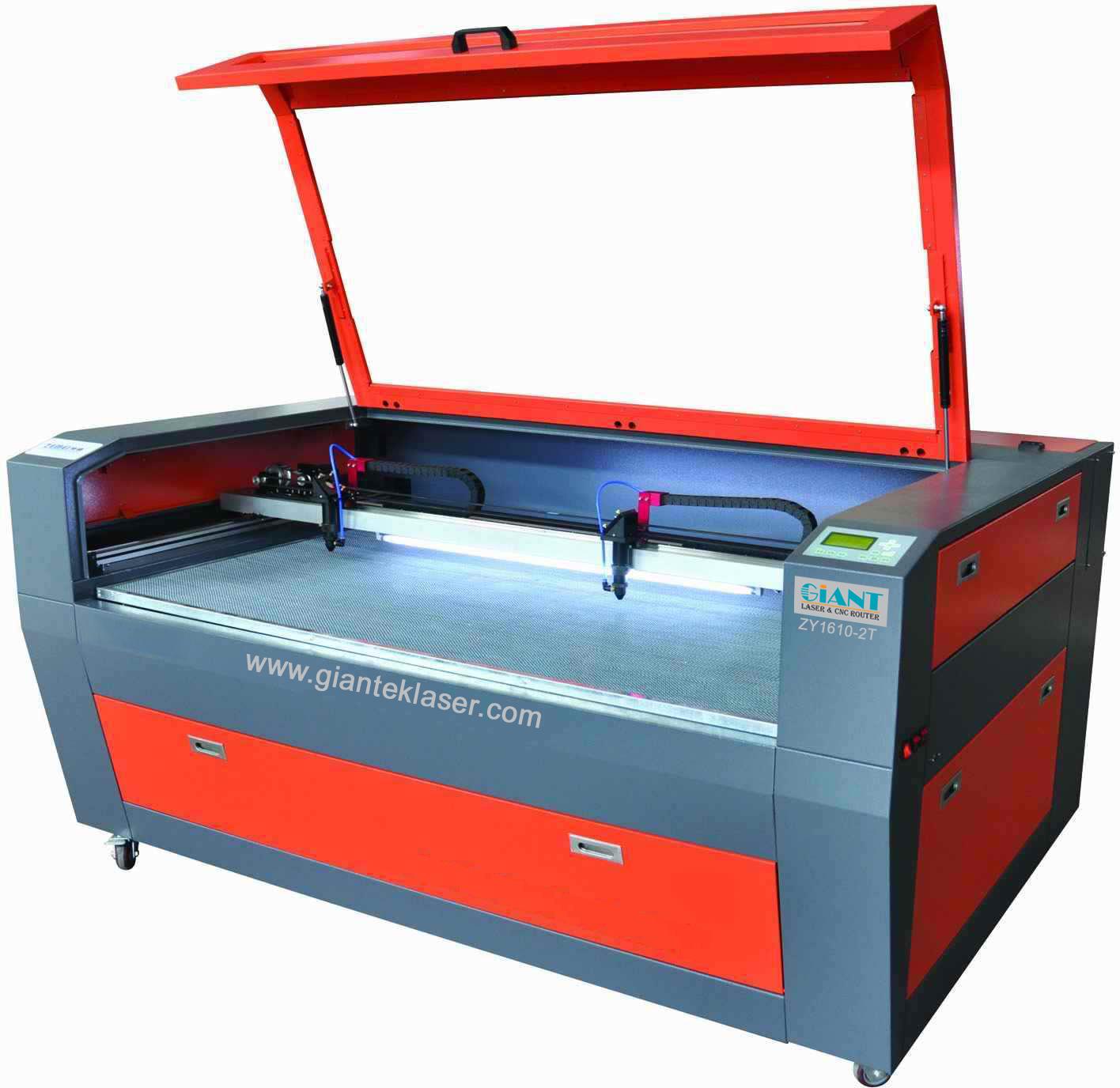

We are offering laser cutting machine zy1610-2t. product name: laser engraving machinemodel number: zy1610-2tplace of origin: china features1. Double laser head and guide rail, its best use for clothing, leather and organic glass2. Machine body made by high quality and thicker steel sheet. Structure is stabilitythe laser beam is also not easy to change. specificationlaser type: sealed co2 laser tubelaser power: 80w, 100w, 130w optionalavailability working area: 1600mm x 1000mmtable mode: fixed honeycomb table/strip table (movable table optional)cutting speed: 0 25000mm/min resetting accuracy: 0.05mmworking voltage: ac220v10% 50hz/ ac110v10% 60hzgross power :< 2000woperating humidity5%-95%operating temperature:0-45minimum character 1x1mmfile format supported: bmp, hpgl, plt, dst, dxf, nc & ai etc. cut by color separation): reaches 256 color for cuttingdriving motor: steppercooling mode: water-cooling and protection systemcontrolling system: dsp controlling systemcompatible software: coreldraw/autocad/photoshopexhaust equipment: powerful exhaust and pipemachine dimension: 2100mm x 1600mm x 1050mmmachine weight: 450kgoptional accessories chiller, rotary attachment, air filterapplicable materials:wood, bamboo, jade, marble, marble, organic glass, crystal, plastic, garments, paper, rubber ceramic, glass and other nonmetal materialsapplicable industries:advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry
