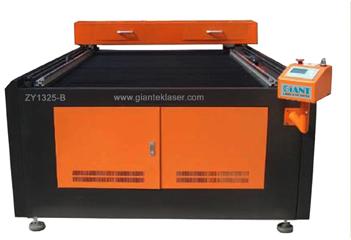

Laser Cutting Machine ZY1325-B

Product Name: Laser cutting MachineModel Number: ZY1325-BPlace of Origin: China
Features
1. Adapt high precision guide screw transmitting for Y axis ，its can move in fast cutting speed and high precision
2. Using high accuracy and 3 phase stepper motor to .running smooth， high
Precision and more speed.
Specification
Laser type: Sealed CO2 laser tube
Laser power: 80W, 100W, 130W, 150W optional
Availability working area: 1200mm X 2450mm
Table mode: Fixed honeycomb table/Strip table
Cutting speed: 0 – 25000mm/min
Resetting accuracy: ±0.05mm
Working voltage: AC220V±10% 50HZ/ AC110V±10% 60HZ
Gross power :
Operating humidity：5%-95%
Operating temperature:0-45℃
Minimum character: 1X1mm
File format supported: BMP, HPGL, PLT, DST, DXF, NC & AI ETC.
cut by color separation:reaches 256 color for cutting
Driving motor: Stepper
Cooling mode: Water-cooling and protection system
Controlling system): DSP Controlling system
Compatible software: CorelDraw/AutoCAD/Photoshop
Exhaust equipment: Powerful Exhaust and pipe
Machine dimension: 3000mm X 1620mm X 1000mm
Machine weight: 450Kg
Optional accessories： Chiller, Rotary attachment, Air filter
Applicable materials:
Wood, bamboo, jade, marble, marble, organic glass, crystal, plastic, garments, paper, rubber ceramic, glass and other nonmetal materials
Applicable industries:
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry
