QINGDAO THINRA WOODWORKING MACHINERY CO.,LTD

• MOQ 1 Piece

We are offering vacuum laminator. model xrfm2511-c working table size limit vacuum degree actual electricity consumption total power overall size total weight 2360×1120×60mm×2 -0.1mpa 5kw 14.5kw 5350×1400×1400mm 2000kg this machine bears two working tables and two independent vacuum filming systems. Vacuum filming can be operated both automatically and manually. The high efficiency, fast finishing, stable laminating, smoothing surface and reasonable structure are its features. The operation and maintenance are simple. This machine is the ideal working equipment for making furniture, cabinets, decorative materials, works of art, advertisements, sound boxes industry.

• MOQ 1 Set(s)

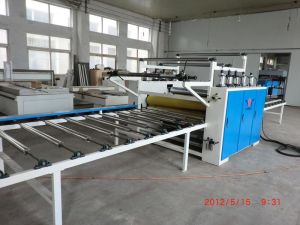

We are offering woodworking pvc paper laminating machine, pvc paper wrapping machine for mdf board. technical parameters: model xrtz1350-c max. Width of material 1220mm thickness of material 3-40mm conveying speed 27m/min total power 30kw overall dimensions 16000*2100*2550 net weight 6500kg

• MOQ 1 Set(s)

We are offering woodworking semi-automatic edge banding machine. features and usage: 1. the machine is mainly used for the linear sealing side of the plywood, fireboard, particle board, and so on. 2. its structure is compact and has a reasonable disposition. It works steadily and operates safely and adjustable 3. the machine adopts the devices of sound insulation, controlling of dust, preventing the overloading, auxiliary frame electrical adjusted 4. it has the function of glue spreading, trimming before and after, rough up and down the sides, blow up and down the side, surface polishing up and down and so on. technical specification: model xrmfb-ⅲ the width of the edge-sealing material 15-63mm the max thickness of the edge-sealing material 15mm the max thickness of the coiled material 3mm the thickness of the board 6-45mm the minimum width of the board 80mm the minimum length of the board 160mm the power 1.5/2.2kw the conveying speed 11m/min the figure dimension 2500*900*1550mm

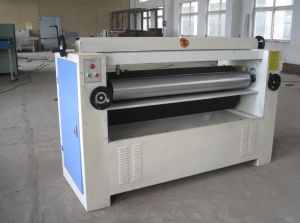

We are offering spreading machine features: 1. this type of machine can spread glue on both sides of working piece at the same. 2. the main machine is made by steel with solid and sturdy structure. 3. the gap between spreading rolls and squeezing rolls can be adjusted freely by hand-wheels. 4. spreading rolls are made of rubber covering with treated surface. The pressure and the quality of glue can be regulated by pneumatic system according to the type of glue and the material of work piece. 5. the control system adopts inverter with stepless motor. It is the classical machine for simple working.

• MOQ 1 Set(s)

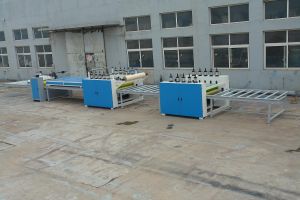

We are offering pvc paper laminating production line for mdf and gypsum board. specification: 1. This machine is suitable for large scale professional manufacturers, furniture and hi-fi plant. 2. It possesses the advantages of sticking paper without wrinkle of bubbles and high rate of quality goods, etc. 3. With the features of advanced technical target, high precision, reasonable layout, novel structure, handy operation and advanced international level, it is the ideal equipment for sticking paper or pvc materials. 4. Equipment accessories: dust absorption and removal subassembly, gelatinize subassembly, paper holding and sticking subassembly, auto paper cutting subassembly, heating pressing subassembly and repressing subassembly. technical parameters: model xrtz1350-c max. Width of material 1220mm thickness of material 3-40mm conveying speed 27m/min total power 30kw overall dimensions 16000*2100*2550 net weight 6500kg

We are offering cnc router for wood and mdf. technical specification: model rf-w25 working size(x*y*z*a mm) 1300*2500*220 overall size(mm) 1770*3110*1690 aixs 3(x y z) max. Processing speed 20000mm/m max. Speed 25000mm/m processing precision 0.01mm drive system stepper motor rotary aixs selective screw tbi guide rail pmi from taiwan main spindle water-cooling4.5kw , 24000 /m er20(air-cooling, selective) reduction gear 380v/5.5kw knife 3.175mm, 4mm, 6mm, 12.7mm table profile structure rectangular pipe welding command code g hpgl working voltage ac38/0v/50hz/60hz power 4.5kw surrounding temperature 10℃～50℃ surrounding moisture 10%～90% net weight 600kg it’s widely used in woodworking industry for engraving: such as wood panel, stereo wave plate processing , carved wooden screen , window frame processing, solid wood door furniture, cupboard door, craft door , non-painting door. Other industry: the wood model for building, aviation wooden pattern, automobile foam molding tool, three dimensional curved surfaces of the musical instruments such as violin, the surface decorative pattern sculpture, calligraphy plaque, picture frames sculpture.

We are offering woodworking precision panel table saw. size of worktable: 3200*320 power of main saw blade: 7.5hp (5.5kw rotary speed 3000/4000/5000 rpm diameter of main blade: 350mm auto lifting and tilting: tilting for 45° power of grooving saw: 0.75kw rotary speed of grooving saw: 3000/4000/5000 rpm voltage: 400v frequency: 50hz
