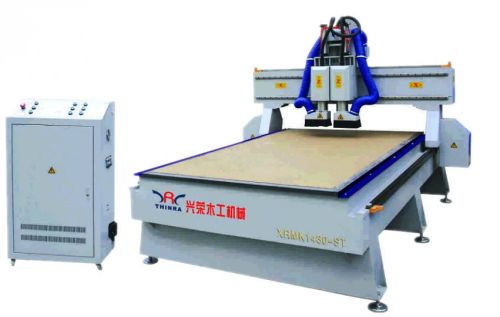

CNC Router For Wood and MDF

We are offering cnc router for wood and mdf.
technical specification:
model rf-w25
working size(x*y*z*a mm) 1300*2500*220
overall size(mm) 1770*3110*1690
aixs 3(x y z)
max. Processing speed 20000mm/m
max. Speed 25000mm/m
processing precision 0.01mm
drive system stepper motor
rotary aixs selective
screw tbi
guide rail pmi from taiwan
main spindle water-cooling4.5kw ,24000 /m er20(air-cooling, selective)
reduction gear 380v/5.5kw
knife 3.175mm, 4mm, 6mm,12.7mm
table profile
structure rectangular pipe welding
command code g hpgl
working voltage ac38/0v/50hz/60hz
power 4.5kw
surrounding temperature 10℃～50℃
surrounding moisture 10%～90%
net weight 600kg
it’s widely used in woodworking industry for engraving: such as wood panel, stereo wave plate processing , carved wooden screen , window frame processing, solid wood door furniture, cupboard door, craft door ,non-painting door.
Other industry: the wood model for building, aviation wooden pattern, automobile foam molding tool, three dimensional curved surfaces of the musical instruments such as violin, the surface decorative pattern sculpture, calligraphy plaque, picture frames sculpture.
