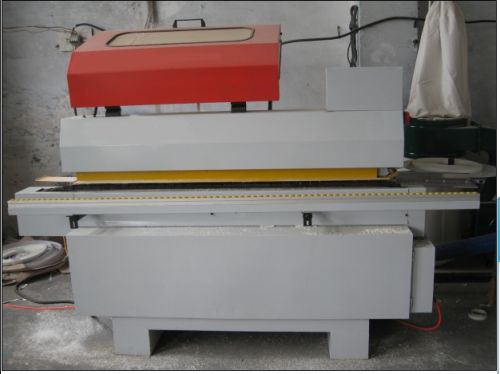

Contact SupplierWe are offering woodworking semi-automatic edge banding machine.
features and usage:
1. the machine is mainly used for the linear sealing side of the plywood, fireboard, particle board, and so on.
2. its structure is compact and has a reasonable disposition. It works steadily and operates safely and adjustable
3. the machine adopts the devices of sound insulation, controlling of dust, preventing the overloading, auxiliary frame electrical adjusted
4. it has the function of glue spreading, trimming before and after, rough up and down the sides, blow up and down the side, surface polishing up and down and so on.
technical specification:
model xrmfb-â…²
the width of the edge-sealing material 15-63mm
the max thickness of the edge-sealing material 15mm
the max thickness of the coiled material 3mm
the thickness of the board 6-45mm
the minimum width of the board 80mm
the minimum length of the board 160mm
the power 1.5/2.2kw
the conveying speed 11m/min
the figure dimension 2500*900*1550mm
