Qinhuangdao Development Zone Prospect Photoelectric Tech Co., Ltd

Qinhuangdao, hebei, China

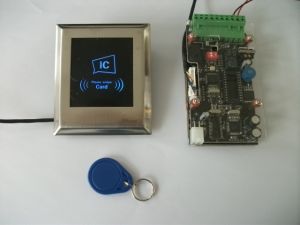

We are offering ic card management system.time×-limited, disturbance-free, to make safer elevator ○ variety ways of elevator calling like card, code, fingerprint, phonenumber, etc. ○ billing daily, monthly or in each time to make property charge easily system characteristic the system and the elevator system are use dry contact linkageboth separated completely, non-interfering running. *the ic card can cancel control automatically which means the ic card smart control system will automatic avoidance while switch back to ic-led control if there have some special conditions(system outage, breakdown) *after the director finish time alignment, it will ensure the time veracity of di- rector and no need to alignment in 5 years. *the director can save 60000 different no.s of cards , 999 code cards＜30 black lists, the record of the storage would not lost in 10 years. * easy installation, both for the news and the olds. *support network and non-network modes *it can combine subsystem to achieve one-card system *the elevator linkage use non-polarity field-bus system *use kinds of communications like can rs485 rs232 to communicate with elevator mainboard. visitor function receive visitors without stepping out 1.code call :integrated design with the reader brand new touch keyboardlcd backlightuse simply 2.smart call: no need wiringespecially for in-use elevatorcellphone remote control elevatorreal exclusive elevator 3.linkage call:no puzzle about the compatibility with talkback maker, independent running, convenient, safe and fast.

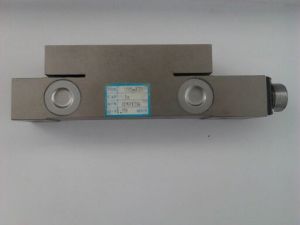

We are offering elevator load cell.integration structural design, crnimo alloy material, correspond the ip65 request, totally adapt to hi-humid environment. Overload capacity150%, line output accurate, load range for each sensor is 100kg~5000kg type:w35 standard(mm):150×35×48 load bearing range:1t3t5t technical parameters sensitivity:2±0.05mvv null point: ±0.15%f.s. Creep: 0.05%f.s.30min repeatability:0.05%f.s. Temperature range: 20~65°c dielectric resistance:≥5000mω secure overload capacity:150%f.s. Extreme overload capacity:200%f.s.

We are offering elevator load cell .integration structural design, crnimo alloy material, correspond the ip65 request, totally adapt to hi-humid environment. Overload capacity150%, line output accurate, load range for each sensor is 100kg~5000kg type: w24 standard(mm):150×24×48 load bearing range:0.5t1t3t technical parameters sensitivity:2±0.05mvv null point: ±0.15%f.s. Creep: 0.05%f.s.30min repeatability: 0.05%f.s. Temperature range: 20~65°c dielectric resistance:≥5000mω secure overload capacity:150%f.s. Extreme overload capacity:200%f.s.

We are offering elevator energy saving devices.elevator saving device can send the energy from capacitance to area ac network and serve for other electric equipment, saving electric obviously, power saving can reach maximally 45%. In addition, since no resistant of heating element, the temperature of machine room is lower, we can save the consumption of air-condition, in many occasions, saving consumptions of air-condition can bring sound effect.

System overview the elevator earthquake detector is used in conjunction with the elevator control system, make the elevator before the earthquake happened or occurs effective enter into the control operation of the equipment. Before the earthquake arrival, the elevator earthquake detector early detection to seismic waves, output alarm contacts to the elevator control system, the elevator control system according to the contacts state in the recent floor flat layer to open the door, release the passengers out of the elevator, the maximum save the life safety of the passengers, ensure that the elevator equipment is not compromised. function 1 adopting three axis acceleration sensor accurate detection of the earthquake happen 2 no need precise installation position 3 can remotely operated and function restoration 4 p wave, s waves integration design 5 self-check function, the instrument itself after failure then automatic detection calibration, no need artificial operation 6 alarm value can scene adjustable 7 alarm records storage function 8 can realize the battery function expand

We are offering elevator load weighing control system.key product in new plan self-learning no debug, off line, power-off protection, bug autoalarm supporting more than 300 elevator manufacturing enterprises in the world system overview prospect elevator load weighing control system is a essential system which is using in different kinds of elevator such as passenger elevator cargo elevator medical use elevator staircase so that the elevator could running safely and comfortably. The system can provide not only a group of relay electric shock signal for overload, full load, half load, light load status, but also various of analog quantity signals for 0~10ma; 4~20ma;-10~+10v or 0~10v. Prospect elevator load weighing control system could provide multiplicate installation methods like rope hitch installation car platform installation wheel and axle installation traction rope installation and escalator pedal bottom installation. In order to offer a safe and comfortable elevator running status. features and parameters about the sensor integration structural design, crnimo alloy material, correspond the ip65 request, totally adapt to hi-humid environment. Overload capacity150%, line output accurate, load range for each sensor is 100kg~5000kg.
