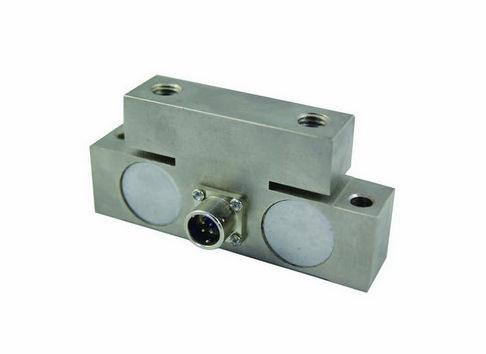

Elevator Load Cell

We are offering elevator load cell .integration structural design, crnimo alloy material, correspond the ip65 request, totally adapt to hi-humid environment. Overload capacity150%, line output accurate, load range for each sensor is 100kg~5000kg type: w24 standard(mm):150×24×48 load bearing range:0.5t1t3t technical parameters sensitivity:2±0.05mvv null point: ±0.15%f.s. Creep: 0.05%f.s.30min repeatability: 0.05%f.s. Temperature range: 20~65°c dielectric resistance:≥5000mω secure overload capacity:150%f.s. Extreme overload
