Shanghai Ulicnc Co

Shanghai, China

• MOQ 1 Set(s)

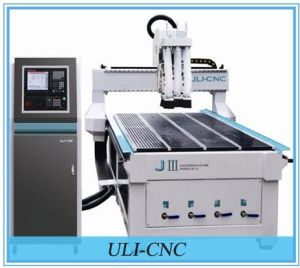

We are offering cnc cutting machine. Application: 1.furniture: ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc. 2.other wooden products: stereo box, computer desk, musical instruments, etc. well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc. 3. Decoration: acrylic, pvc, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc. 4.designed to meet diverse and complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions. Features: 1.it is automatic knife device for aeconomic intelligence. By three spindle. automatic switching, complete the multiple process automatic processing 2. The automatic tool change cylinder switch, tool change time is only 3 seconds 3. The whole steel structure, high temperature tempering to stress precision machining, to ensure that the service life of the machine. 4. Air cooling spindle for 3-6kw, large power, low noise, low failure rate. 5. Import ac servo motor, high precision. 6. Taiwan pmi precision guide. 7. Taiwan precision helical gear, bevel gear, precision high speed. 8. The uli industrial control computer, high precision, good stability. 9. Imports of planetary reducer, high precision, long life, light sound machine 10. Automatic alarm function. Types jⅲ25 jⅲ30 jⅲ40 x area 1300mm 1500mm 2000mm y area 2500mm 3000mm 4000mm z area 150-250mm table size 1400*2800mm 1600*3300mm 2100*4300mm spindle 3-6kw spindle movement ball screw, gear, line guide max move speed 24-45mmin max work speed 20mmin vacuum pump 7.5kw net weight 1500kg 2000kg 3000kg driver servo motor cnc system uli cnc control system

• MOQ 1 Set(s)

We are offering cnc router. Applicable to foam, wood , polyester, aluminum, etc. Applicable for: automotive stamping die foam processing, casting mold, automotive interior, engineering plastic and all kinds of non metal processing industry, etc. Features: 1. It is automatic knife device for aeconomic intelligence. By three spindle. automatic switching, complete the multiple process automatic processing 2. The automatic tool change cylinder switch, tool change time is only 3 seconds 3. The whole steel structure, high temperature tempering to stress precision machining, to ensure that the service life of the machine. 4. Air cooling spindle for 3-6kw, large power, low noise, low failure rate. 5. Import ac servo motor, high precision. 6. Taiwan pmi precision guide. 7. Taiwan precision helical gear, bevel gear, precision high speed. 8. The uli industrial control computer, high precision, good stability. 9. Imports of planetary reducer, high precision, long life, light sound machine 10. Automatic alarm function. Types s3 s9 s12 s18 s25 s30 x area(mm) 300 700 2000 1200 1300 1500 y area(mm) 200 900 1200 1800 2500 3000 z area(mm) 150-250 table size(mm) 300*200 700*900 1300*1500 1300*2000 1500*2500 1600*3300 spindle 3-6kw spindle movement ball screw, gear, line guide max move speed 24-45mmin max work speed 20mmin net weight 80kg 280kg 700kg 800kg 1000kg 1500kg driver servo motor cnc system uli cnc control system

• MOQ 1 Set(s)

We are offering large gantry frame cnc router for foam. Applicable to foam, wood , polyester, aluminum, etc. Applicable for: automotive stamping die foam processing, casting mold, automotive interior, engineering plastic and all kinds of non metal processing industry, etc. Features: 1. The whole steel structure, high temperature tempering to stress precision machining, to ensure that the service life of the machine. 2. High power spindle, low noise, low failure rate. 3. Hybird servo motor, high precision. 4. Taiwan pmi precision guide. 5. Taiwan precision helical gear, bevel gear, precision high speed. 6. The uli industrial control computer, high precision, good stability. 7. Automatic alarm function. Types l40 x area 1500-2000mm y area 3000-6000mm z area 300-600mm table size 2400*4500mm table t-slot spindle 6-18kw spindle spindle speed 700-10000rmp movement gear, ball screw, line guide max work speed 20mmin operating g-code fs net weight 4000kg driver japanese yaskawa servo motor cnc system uli cnc system

• MOQ 1 Set(s)

We are offering cnc engraving machine. Applicable to：the mahogany furniture, classical european style furniture, jade carving, stone carving, stone carving,  arts and crafts, building model, hand tool, advertising signs, electronic circuit board industry etc. Applicable to：mahogany, white wood, organic glass, acrylic, ps, pvc, polyester, circuit board, marble, aluminum etc. Features: 1.cast iron bed, after the annealing treatment, 10 years without deformation. 2. Servo system, high speed and high precision. 3. Uli spindle, high power, low noise, low failure rate. 4. Taiwan pmi ball screw and the guide rail. 5. No dislocation, involuntary pauses, not throwing knife. 6. Automatic alarm function. 7. Dust cover 8. Automatic lubrication system 9. The new system is compatible with the jd5.5 version, . 10.for 6000 hours non-stop work. Types a8 a12 a15 a18 a25 aw19 aw29 x area(mm) 800 1400 1900 y area(mm) 800 1200 1500 1800 2500 1500 2200 z area(mm) 100 table size(mm) 800*1200 1400*1500 1400*1800 1400*2300 1400*3000 1900*1800 1900*2800 spindle 1.5kw spindle movement ball screw, line guide max move speed 20mmin max work speed 15mmin net weight 700kg 1000kg 1200kg 1500kg 2000kg 2000kg 2500kg driver servo motor cnc system uli cnc control system

• MOQ 1 Set(s)

We are offering wood engraving machine. Application: Applicable to�Pen, European style furniture, pens, chopsticks, musical instruments, arts and crafts, jewelry, stairs. Applicable to�mahogany, white-wood, perspex, acryl, PS, PVC, polyester, marble, aluminum, copper, etc. Features: 1.Strong structure, stability and reliability, 2. Strength, carving deep. 3. Servo system, high speed and high precision. 4. The ULI spindle, high power, low noise, low failure rate. 5. Taiwan PMI wire rod and the guide rail, the fine carving. 6. No dislocation, involuntary pauses, not throwing knife. 7. The new system, compatible with the JD5.5 version, can lift the knife does not stop anti-aliasing in the process and phenomenon. Types G6 G12 G3-4 G12-4 G12-8 Engraving Head 1 1 4 4 8 Machining Length 600mm 1200mm 300mm 1200mm 1200mm Working Diameter 220mm 300mm 220mm 300mm 240mm Tool Diameter 6mm 8mm 6mm 12.7mm 12.7mm Spindle 800w 1500w 1500w 2200w 2200w Movement screw screw screw screw screw Max Speed 6mmin 6-12mmin 12mmin 12mmin 12mmin Max Work Speed 6mmin 6mmin 12mmin 12mmin 12mmin Net Weight 300kg 600kg 900kg 1200kg 3000kg Driver step step servo servo servo CNC System ULI CNC system

• MOQ 1 Set(s)

we are offering Cnc Cutting Machine. Application: Applicable to : sofa, cabinets, wooden doors, furniture, European furniture, solid wood furniture, decoration, office furniture, etc Applicable to: all kinds of sheet metal, organic glass, PS, PVC, polyester and other materials. Features: 1.The tool magazine, tool changing time only need 8 seconds. 2.The whole steel structure, high temperature tempering to stress precision machining, to ensure that the service life of the machine. 3.Automatic knife spindle for 9 kw, large power, low noise, low failure rate. 4.Import AC servo motor, high precision. 5.Taiwan PMI precise guide. 6.Taiwan precision helical gear, bevel gear, precision high speed. 7.The ULI industrial control computer , high precision, good stability. 8.Imports of planetary reducer, high precision, long life, light sound machine 9.Automatic alarm function. Types IWPC X Area 122415002000mm Y Area 2440300040006000mm Z Area 120150200300mm Table Size 1350*2500mm Table Vacuum table Vacuum Pump 7.5kw Spindle HSD-9kw spindle Movement Ball screw, line guide ATC Inline type change the tools Max Work Speed 25mmin Net Weight 1500kg Driver Japanese Yaskawa servo motor CNC System ULI CNC system
