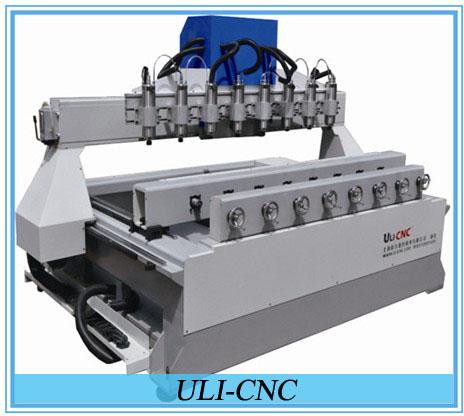

3d Wood Engraving Machine

We are offering wood engraving machine. Application:
Applicable to�Pen, European style furniture, pens, chopsticks, musical instruments, arts and crafts, jewelry, stairs.
Applicable to�mahogany,white-wood,perspex,acryl,PS,PVC,polyester,marble,aluminum,copper,etc.
Features:
1.Strong structure, stability and reliability,
2. Strength, carving deep.
3. Servo system, high speed and high precision.
4. The ULI spindle, high power, low noise, low failure rate.
5. Taiwan PMI wire rod and the guide rail, the fine carving.
6. No dislocation, involuntary pauses, not throwing knife.
7. The new system, compatible with the JD5.5 version, can lift the knife does not stop anti-aliasing in the process and phenomenon.
Types G6 G12 G3-4 G12-4 G12-8
Engraving Head 1 1 4 4 8
Machining Length 600mm 1200mm 300mm 1200mm 1200mm
Working Diameter 220mm 300mm 220mm 300mm 240mm
Tool Diameter 6mm 8mm 6mm 12.7mm 12.7mm
Spindle 800w 1500w 1500w 2200w 2200w
Movement screw screw screw screw screw
Max Speed 6mmin 6-12mmin 12mmin 12mmin 12mmin
Max Work Speed 6mmin 6mmin 12mmin 12mmin 12mmin
Net Weight 300kg 600kg 900kg 1200kg 3000kg
Driver step step servo servo servo
CNC System ULI CNC system
