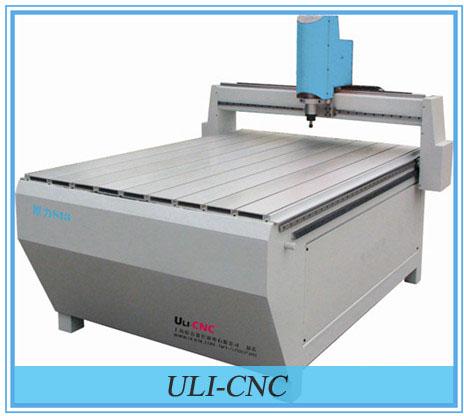

CNC Router For Advertising

We are offering cnc router. Applicable to foam, wood , polyester,aluminum, etc.
Applicable for: automotive stamping die foam processing, casting mold, automotive interior, engineering plastic and all kinds of non metal processing industry, etc.
Features:
1. It is automatic knife device for aeconomic intelligence. By three spindle.
automatic switching, complete the multiple process automatic processing
2. The automatic tool change cylinder switch, tool change time is only 3 seconds
3. The whole steel structure, high temperature tempering to stress precision
machining, to ensure that the service life of the machine.
4. Air cooling spindle for 3-6kw, large power, low noise, low failure rate.
5. Import ac servo motor, high precision.
6. Taiwan pmi precision guide.
7. Taiwan precision helical gear, bevel gear, precision high speed.
8. The uli industrial control computer, high precision, good stability.
9. Imports of planetary reducer, high precision, long life, light sound machine
10. Automatic alarm function.
Types s3 s9 s12 s18 s25 s30
x area(mm) 300 700 2000 1200 1300 1500
y area(mm) 200 900 1200 1800 2500 3000
z area(mm) 150-250
table size(mm) 300*200 700*900 1300*1500 1300*2000 1500*2500 1600*3300
spindle 3-6kw spindle
movement ball screw, gear, line guide
max move speed 24-45mmin
max work speed 20mmin
net weight 80kg 280kg 700kg 800kg 1000kg 1500kg
driver servo motor
cnc system uli cnc control system
