The DMX512 protocol needs to set address for each receiving-equipment and usually a binary or a decimal dial switch is used to set address for each receiving-equipment. Some lights with high water-proof requirements in the application of LED light control (e.g. underwater lights, underground lights, etc.) cannot be set address through dial switches, which increases difficult in the installation and maintenance process of lights. With independent intelligent property, our company has provided a complete solution to solve this problem and successfully developed the DMX512 Adds-writer & tester (named SC-DMX-512) and DMX512 decoder module with address writer function. This system is completely compatible with the DMX512 system. 1. Three-channel drive output, the maximum current of each channel can reach 1A, and the maximum drive voltage to 24V; 2. Installed voltage-stabilizing circuit, the scope of power supply can be 8-24V; 3. 256 grey scale output of every road; 4. Industrial-grade design with strong anti-interference capacity; Specification Brand name: SC-DMX-03D Output current: 1A/road Input voltage: DC8 -- 24V Communication protocol: DMX512/1990 Output channel: RGB External dimension: 80(W)*20(D)*20(H) mm Application: stage light, LED light fixture: underwater lamp, underground lamp, spot light, wall light, clearance light, etc.

• MOQ 5 Piece(s)

We offer Dmx512 Driver. brand name sc-dmx-03d input voltage dc 8–24v communication protocol dmx512/1990 nos. of output channels 1 – 3 external dimension 80(w)*20(d)*20(h)mm application led light, such as underwater light, buried light, floodlight, curtain wall light, clearance light, etc

Technical specifications: Brand name: SC0322 Input voltage: DC 8 � 24V Communication protocol: DMX512/1990 Nos. of output channels: 1 � 3 External dimension:30.25(W)*30.25(D)*8(H)mm Application: LED light, such as underwater light, buried light, floodlight, curtain wall light, clearance light, etc

Sc-dmx-2000 Multi-functional Music Lighting Controller Adopts On-line Music Control Method, Which Can Play Any Audio Files from the Clients with the Play Software Developed Independently By Our Company. the Animation File of Project Will Be Corresponding Beating with the Playing Audio File. this Lighting Controller is Largely Applied in the Music Hall, Pub, Club and So On, Where Equipped with Led Lighting Source. two Groups of Signal Output of International Standard Dmx512/1990 with Photoelectric Isolation Can Guarantee the Security of the Whole Control System. Otherwise, this Device Can Control 1024 Dmx512 Channels, Support Reading Storage Files in Mmc/sd Card and On-line/off-line Operation. Moreover, Words, Flash Animation, Video, Image and such Avi Formatted Files Can Be Easily Imported to the Project. technical Specifications brand Name Sc-dmx-2000 communication Protocol Dmx512/1990 Tcp/ip network Port Rj45（10m） dmx512 Output Rj45×2 synchronous Signal Output Rj11×2 power Supply Input Ac 100~240v，50/60hz rated Power

Technical specifications: Brand name SC-DMX-200 Input voltage DC 8–24V Signal assignment pattern 1Channel input, 2Channel signal output Communication protocol DMX512/1990 External dimension 80(W)*20(D)*20(H)mm Application LED light, such as underwater light, buried light, floodlight, curtain wall light, clearance light, etc

Technical Specifications: brand Name Sc03c input Voltage Dc12–24v communication Protocol Dmx512/1990 nos. of Output Channels 1 – 3 output Current 700ma*3 input Specifications Constant Current external Dimension 104(w)*55(d)*28(h)mm application Led Light, such as Underwater Light, Buried Light, Floodlight, Curtain Wall Light, Clearance Light, Etc

Specifications: 1. Brand name: SC-DMX-03C 2. Input Voltage: 12v~35v 3. Communication Protocol: DMX512/1990 4. Channels: RGB 5. Output Current: 700mA, the current range can be customized 6. Output Voltage: 12v~35v 7. Power characteristics: constant current drive 8. Adds-writing: dial switch or coding

1.Available for encoding, and for setup of the address for each DMX512 decoder module (SC-DMX-00xH/L) of own company; 2.Available for one-time setup of different addresses for the DMX512 control system consisted of by SC-DMX-00xH/L(DMX-512 decoder module) of own company; 3.Available for transmission single and multiple channel DMX512 signal; 4.Available for scene function, and for independent setup of DMX512 Start code and value of each channel; 5.Support transmission of DMX512 testing signal by 40Hz or 20Hz; 6.Available for receiving DMX512 signal and for separate display of 512 channels and their respective Start code. Technical specifications Brand name SC-DMX-512 Communication protocol DMX512/1990 DMX512 I/O RJ45×2 Display 16*4 large screen LCD Power supply input DC 9V Rated power

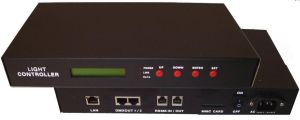

1. Output International Standard Dmx512/1990 Signal, Control 512 Light-regulating Circuits (340 Full-color Rgb Lamps), 256 Grey Scale Change; 2. Offline Operation Mode, Reading Scene Files Stored in Mmc Card; 3. Support Data Format Generated By the Control System Software of Own Company; 4. Support Dmx512 Consol Control. technical Specifications: brand Name sc-dmx-2020 communication Protocol dmx512/1990 dmx512 Output&input rj45*2 display 16*4 Large Screen Lcd power Supply Input dc 9v rated Power

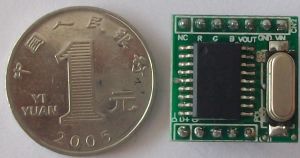

1. Three-channel drive output, the maximum current of each channel can reach 1A, and the maximum drive voltage to 25V; 2. Installed voltage-stabilizing circuit, the scope of power supply can be 8-24V, and 5V stable voltage output; 3. Industrial-grade design with strong anti-interference capacity; Specifications: Brand name: SC-DMX-03 Input voltage: DC 8-24V Communication protocol: DMX512/1990 Output channel: RGB External dimension: 30.25(W)*30.25(D)*8(H) mm Application: stage light, LED light fixture: underwater lamp, underground lamp, spot light, wall light, clearance light, etc.

SC-DMX-2000 lighting controller adopts on-line music control method, which can play any audio files from the clients with the play software developed independently by our company. The animation file of project will be corresponding beating with the playing audio file. This lighting controller is largely applied in the music hall, pub, and club and so on, where equipped with LED lighting source. 1. Two groups of signal output of international standard DMX512/1990 with photoelectric isolation can guarantee the security of the whole control system; 2. Control 1024 DMX512 channels; 3. Support reading storage files in MMC/SD card and on-line/off-line operation; 4. Words, FLASH animation, video, image and such AVI formatted files can be easily imported to the project.
