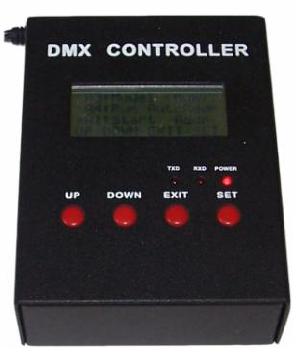

DMX512 Encoder Tester

1.Available for encoding, and for setup of the address for each DMX512 decoder module (SC-DMX-00xH/L) of own company;
2.Available for one-time setup of different addresses for the DMX512 control system consisted of by SC-DMX-00xH/L(DMX-512 decoder module) of own company;
3.Available for transmission single and multiple channel DMX512 signal;
4.Available for scene function, and for independent setup of DMX512 Start code and value of each channel;
5.Support transmission of DMX512 testing signal by 40Hz or 20Hz;
6.Available for receiving DMX512 signal and for separate display of 512 channels and their respective Start code.
Technical specifications
Brand name SC-DMX-512
Communication protocol DMX512/1990
DMX512 I/O RJ45×2
Display 16*4 large screen LCD
Power supply input DC 9V
Rated power
