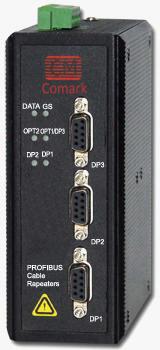

Profibus Dp Hub Repeater

We are offering profibus dp hub repeater etc.
This series product is profibus dp protocol fieldbus hub repeater, support profibus protocol fieldbus, the function of data mutually forwarding within independent 3 channels bus electrical ports, electrical signal relay and supply cable system the star topology. Ci-pp30 series based on profibus dp standard, rate set by dip switch (recommend) or rate adaptive, support 10 kinds normally used rate of profibus dp. Shenzhen comark technology co.,ltd is a professionalized supplier of industrial networking equipments, the products always adopt latest technology with their own completed intellectual property rights, launched the products with the features of industry innovative.
The equipment can prolong the transmission distance of profibus dp, change the bus topology structure, meanwhile featured opto-isolation, reducing interference and other functions. Products designed as industrial class, ip30 protection grade, wave pattern aluminum casing, 35mm din rail installation, dc (9-36) v, widely power input, featured relay alarm output, dual power redundant, isolation protection and other advantages.
support 3 channels of independent profibus dp, support the re-communication rate of standard.
featured the function of 3 ports hub and repeaters, easy to achieve the star topology and prolong the cable distance.
support dip switch manually set all the standard rates or rate adaptive (all electrical interface rates must be the same).
6 pcs of led status indicators with dual-color, power fault relay output alarm.
electric interface opto-isolation, 4000v thunder-proof, 1.5a overcurrent protection, 600w surge protection. Industrial design, emc test certificate.
dc9-36v wide temperature redundancy dual power, reverse connection protection.
ip30 protection grade, wave pattern aluminum enhance case, adopt standard industrial 35mm din rail installation.
electrical interface:
9-pin sub_d, socket connector, definition of pins conform to profibus dp protocol standard.
Support profibus dp standard.
Communication rates: 9.6kbit/s equipment without terminal resistance, please use the external one when necessary.
Power and protection:
power: dual power redundancy input, typical dc24v, power consumption less than 4w, has dc1500v voltage isolation and reverse protection, industrial terminal interface.
Relay alarm output: optical fiber link failure and power error alarm output, maximum capacity of contacts: dc48v/1a, industrial terminal interface.
Mechanical properties:
dimensions: 132mm casing: ip30 protection grade, wave pattern aluminum enhanced casing.
Installation: 35mmdin rail installation.
Net weight: 800g
environmental:
operating temperature: -10-70
