Current Sensor

Shenyang Academy of Instrumentation Science (original name Shenyang Instrumentation Technics Institute) was derectly belonging to Ministry of Machinery Industry as a large comprehensive scientific research units, now is subject to China National Machinery & Equipment Group (CNMEG). Name listed in national comprehensive technology ability 100 More..

AC Current Sensor

₹ 3,027.50 / Set Get Latest Price

Model Number HB-G5
Brand Name HB
Theory electromagnetic isolation technology
Phase one
Output 5V or 4-20mA
Country of Origin China
Application AC current measurement

Using new electromagnetic isolation technologyhigh accuracy with low power dissipation and high performance-price ratiolinear measuring range: 0 - 120% of nominal inputfrequency: 25hz5khz, suitable for the current measure in range of medium frequency and power frequencyisolation: >2kv dc 1minoverload: 300% of nominal input, 5 secondsmean time between failure(mtbf): >50000 hourstrue rms conversion output(special customer request is available)two wires output mode.

View Complete Details

Ask Latest Price & Details

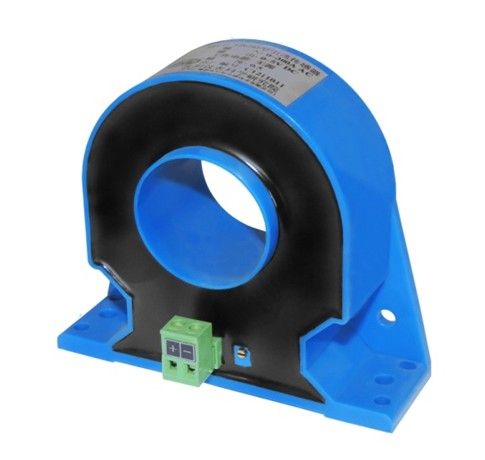

Passive AC Current Transducer

₹ 1,297.50 / Set Get Latest Price

Min. Order (MOQ) 1 Set(s)
Output 5 V
Input 50A；100A；150A；200A；250A；300A；400A；500A；600A

Using new electromagnetic isolation technologystraight-through current input mode, high isolation abilitypassive without power supply, high performance-price ratiolinear measuring range: 0 120% of nominal inputfrequency: 25hz5khz, suitable for the current measure in range of medium frequency and power frequencyisolation: >3kv dc 1minoverload: 3000% of nominal input, 60 seconds. Mean time between failure(mtbf): >50000 hours

View Complete Details

Ask Latest Price & Details

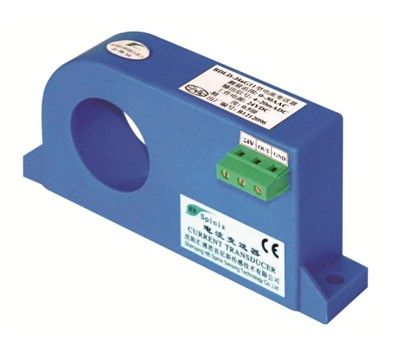

G1 DC Current Transmitter

₹ 3,979 / Set Get Latest Price

Min. Order (MOQ) 1 Set(s)
Input 200A；300A；400A；500A；600A；700A；800A；900A；1000A
Output 5V or 4-20mA
Power Supply 12VDC or 24VDC

Using Hall effect principle, direct measurementStraight-through core current input mode, high isolation capacityHigh accuracy with low power dissipation, high performance-price ratioLinear measuring range: 0 120% of nominal inputIsolation: >3kV DC, 1minOverload: 3000% of nominal input, 5 seconds. Mean Time Between Failure (MTBF): >50000 hoursVarious of output mode

View Complete Details

Ask Latest Price & Details

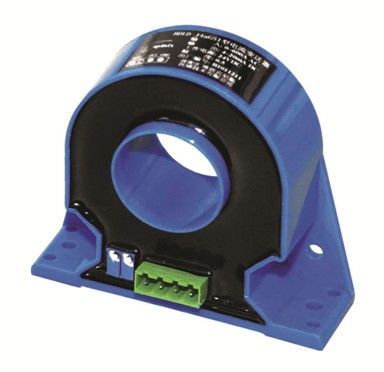

G5 AC Current Transducer

₹ 4,325 / Set Get Latest Price

Min. Order (MOQ) 1 Set(s)
Power Supply 12VDC or 24VDC
Input 100A；150A； 200A；250A； 300A
Ouput 5V or 4-20mA

Using new electromagnetic isolation technologyCurrent through core input type, high isolating capacityStraight-through current input mode, high isolation abilityHigh accuracy with low power dissipation, high performance-price ratioLinear measuring range: 0 120% of nominal inputFrequency: 25Hz5KHz, suitable for the current measure in range of medium frequency and power frequencyIsolation: >3kV DC 1minOverload: 1000% of nominal input, 5 seconds. Mean Time Between Failure (MTBF): >50000 hoursTrue RMS conversion output (special customer request is available)Two wires output mode

View Complete Details

Ask Latest Price & Details

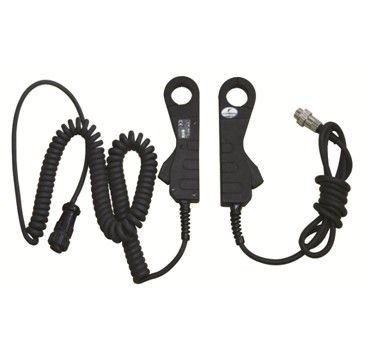

Q1 Clamp Type Probe Current Transducer

₹ 4,325 / Set Get Latest Price

Min. Order (MOQ) 1 Set(s)
Input 100A~1000A
Output 1V or 5V
Power supply 5VDC, 12VDC, 24VDC

Using hall effect principledirect measurementstraight-through current core input mode, high isolation capacitygood linearity, high accuracy and quick responselinear measuring range: 0 120% of nominal inputfrequency: dc10khzlow temperature driftisolation: >3kv dc, 1minoverload: 1000% of nominal input, 5 seconds. Mean time between failure(mtbf): >50000 hours

View Complete Details

Ask Latest Price & Details

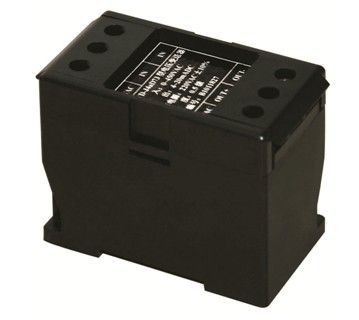

D7 AC Current Transducer

₹ 3,892.50 / Set Get Latest Price

Min. Order (MOQ) 1 Set(s)
Power Supply 220V AC
Input 1A；2A；3A；4A；5A；6A；10A
Ouput 5v or 4-20mA

Using new electromagnetic isolation technologyterminal block inputhigh accuracy with low power dissipation and high performance-price ratiolinear measuring range: 0 120% of nominal inputfrequency: 25hz5khz, suitable for the current measure in range of medium frequency and power frequencyisolation: >3kv dc 1minoverload: 500% of nominal input, 5 secondsmean time between failure (mtbf): >50000 hourstrue rms conversion output(special customer request is available).

View Complete Details

Ask Latest Price & Details

HK Unidirectional DC Large Current Transducer

Min. Order (MOQ) 1 Set(s)
Input from 0-5k A to 0-100k A
Output 5V
Power supply 220 VAC

Using hall effect principle, direct measurement;dismountable structure, convenient for field installation;straight-through core current input mode, high isolation ability;high accuracy, high performance-price ratiolinear measuring range: 0 120% of nominal inputisolation: >3kv dc, 1minoverload: 500% of nominal input, 5 seconds. Mean time between failure (mtbf): >50000 hoursepoxy resin plate shell, high strength and insulationspecial structure and dimension for customer request is available

View Complete Details

Ask Latest Price & Details

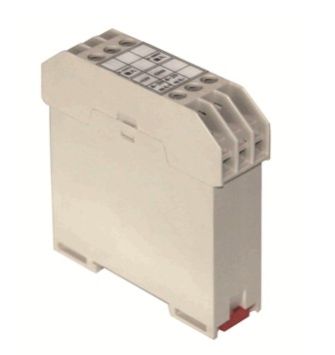

D2 AC Current Transducer

₹ 2,941 / Set Get Latest Price

Min. Order (MOQ) 1 Set(s)
Output 5V, 4-20mA
Power Supply 12VDC or 24VDC
Input 1A；2A；3A；4A；5A；6A

Using new electromagnetic isolation technologyhigh accuracy with low power dissipation and high performance-price ratiolinear measuring range: 0 120% of nominal inputfrequency: 25hz5khz, suitable for the current measure in range of medium frequency and power frequencyisolation: >2kv dc 1minoverload: 300% of nominal input, 5 secondsmean time between failure(mtbf): >50000 hourstrue rms conversion output(special customer request is available)two wires output mode.

View Complete Details

Ask Latest Price & Details
