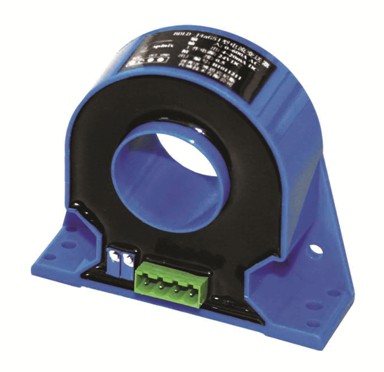

G5 AC Current Transducer, Power Supply : 12VDC or 24VDC

₹ 4,525 / Set

MOQ1 Set(s)
Power Supply12VDC or 24VDC
Ouput5V or 4-20mA
Input100A；150A； 200A；250A； 300A
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Using new electromagnetic isolation technology Current through core input type, high isolating capacity Straight-through current input mode, high isolation ability High accuracy with low power....

Company Information

Shenyang Academy of Instrumentation Science Co.,Ltd.

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1962

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Using new electromagnetic isolation technology
Current through core input type, high isolating capacity
Straight-through current input mode, high isolation ability
High accuracy with low power dissipation, high performance-price ratio
Linear measuring range: 0 ～ 120% of nominal input
Frequency: 25Hz～5KHz, suitable for the current measure in range of medium frequency and power frequency
Isolation: >3kV DC 1min
Overload: 1000% of nominal input, 5 seconds.
Mean Time Between Failure (MTBF): >50000 hours
True RMS conversion output (special customer request is available)
Two wires output mode
