we are offering led panel light. featuresultra-thin, the thickness is13mm, edge-lightingheat dissipation: aluminum pcb which ensure heat dissipation in time as well as warranty long life-span of the light.light efficiency can reach 80mw.no pollution, no uv radiation, no rf interference, no flickering.easy installation: recessed, suspended, surface mounted.dimmable:infrared, 0-10v, dalilong life span 35, 000 hours.warranty: 3 years applicationcommercial lighting: high-class stores, shopping malls, hotels, restaurants, airport and so on.office lighting: conferencemeeting rooms, factories, offices and so on.institution buildings: schools, colleges, universities, hospitals, pharmacy and so on. item product no.:at-spl-s0606s3-040 brand:aoto dimension595*595*13mm input voltage:100-240v ac wattage:40w color temperature:ww (3000k)nw (4000k)cw( 6000k) luminous:3000lm3200lm3300lm luminous efficiency75lmw80lmw82lmw ra808080 power factor0.9 beam angle120 ipip20 operation temperature-20c +45c storage temperature-25c +55c net weight4.2 kg gross weight6 kg

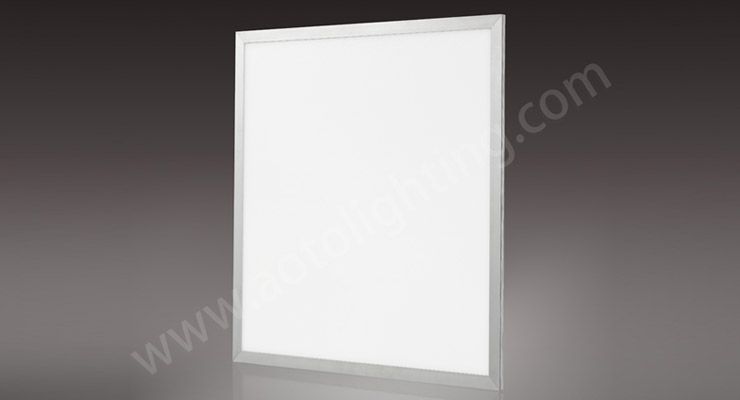

we are offering led panel light. total power(w):40 luminous output(lm) :80lmw (4000k) product dimension:615*615*13mm featuresultra-thin, the thickness is13mm, edge-lightingheat dissipation: aluminum pcb which ensure heat dissipation in time as well as warranty long life-span of the light.light efficiency can reach 80lmw.no pollution, no uv radiation, no rf interference, no flickering.easy installation: recessed, suspended, surface mounted.dimmable:infrared, 0-10v, dalilong life span 35, 000 hours.warranty: 3 years applicationcommercial lighting: high-class stores, shopping malls, hotels, restaurants, airport and so on.office lighting: conferencemeeting rooms, factories, offices and so on.institution buildings: schools, colleges, universities, hospitals, pharmacy and so on. product parametersproduct no.:at-spl-s6262s3-040 brand:aoto dimension615*615*13mm input voltage:100-240v ac wattage:40w color temperature:ww (3000k)nw (4000k)cw( 6000k) luminous:3000lm3200lm3300lm luminous efficiency75lmw80lmw82lmw ra808080 power factor0.9 beam angle120 ipip20 operation temperature-20c +45c storage temperature-25c +55c net weight4.2 kg gross weight6 kg

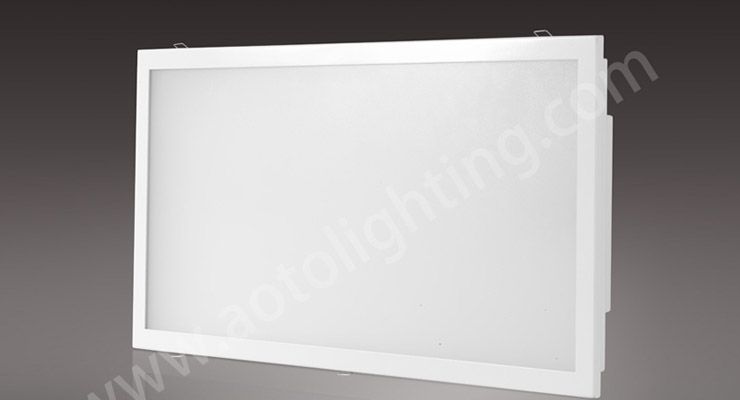

we are offering led panel light. total power(w) 76wluminous output(lm) 80lmw (4000k)product dimension 615*615*13mm featuresultra-thin, the thickness is13mm, edge-lightingheat dissipation: aluminum pcb which ensure heat dissipation in time as well as warranty long life-span of the light.light efficiency can reach 80lmw.no pollution, no uv radiation, no rf interference, no flickering.easy installation: recessed, suspended, surface mounted.dimmable:infrared, 0-10v, dalilong life span 35, 000 hours.warranty: 3 years applicationcommercial lighting: high-class stores, shopping malls, hotels, restaurants, airport and so on.office lighting: conferencemeeting rooms, factories, offices and so on.institution buildings: schools, colleges, universities, hospitals, pharmacy and so on. product parametersproduct no.:at-spl-s0612s3-076 brand:aoto dimension595*1195*13mm input voltage:100-240v ac wattage:76w color temperature:ww (3000k)nw (4000k)cw( 6000k) luminous:5700lm6080lm6100lm luminous efficiency75lmw80lmw80lmw ra808080 power factor0.9 beam angle120 ipip20 operation temperature-20c +45c storage temperature-25c +55c net weight11.2 kg gross weight12.6 kg

we are offering led panel light. total power(w) 76luminous output(lm) 80lmw (4000k)product dimension 595*595*13mm features1. ultra-thin, the thickness is13mm, edge-lighting2. heat dissipation: aluminum pcb which ensure heat dissipation in time as well as warranty long life-span of the light.3. light efficiency can reach 80 lmw.4. no pollution, no uv radiation, no rf interference, no flickering.5. easy installation: recessed, suspended, surface mounted.6. dimmable: infrared, 0-10v, dali7. long life spans 35, 000 hours8. warranty: 3 years application1. commercial lighting: high-class stores, shopping malls, hotels, restaurants, airport and so on.2. office lighting: conferencemeeting rooms, factories, offices and so on.3. institution buildings: schools, colleges, universities, hospitals, pharmacy and so on. product parametersproduct no.: at-spl-s0606s3-076 brand: aoto dimension 595*595*13mm input voltage: 100-240v ac wattage: 76w color temperature: ww (3000k) nw (4000k) cw( 6000k) luminous: 5700lm 6080lm 6100lm luminous efficiency 75lmw 80lmw 80lmw ra 80 80 80 power factor 0.9 beam angle 120 ip ip20 operation temperature -20c +45c storage temperature -25c +55c net weight 4.2kg gross weight 5.5 kg

We are offering Edge Lit Led Panel Light. Total Power(W) 76Luminous Output(lm) 80lmw (4000K) Product Dimension 295*1195*13mm FeaturesUltra-thin, the thickness is13mm, edge-lightingHeat dissipation: Aluminum PCB which ensures heat dissipation in time as well as warranty long life-span of the light.Light efficiency can reach 80 Lmw.No pollution, No UV radiation, no RF interference, no flickering.Easy installation: Recessed, suspended, surface mounted.Dimmable: Infrared, 0-10v, DALILong life spans 35, 000 hoursWarranty: 3 years ApplicationCommercial lighting: high-class stores, shopping malls, hotels, restaurants, airport and so on.Office lighting: ConferenceMeeting rooms, Factories, offices and so on.Institution Buildings: Schools, colleges, universities, hospitals, pharmacy and so on. Product ParametersProduct No.: AT-SPL-S0312S3-076 Brand: AOTO Dimension 295*1195*13mm Input Voltage: 100-240V AC Wattage: 76W Color temperature: WW (3000k) NW (4000k) CW( 6000k) Luminous: 5700Lm 6080Lm 6100Lm Luminous efficiency 75Lmw 80Lmw 80Lmw Ra 80 80 80 Power Factor 0.9 Beam Angle 120 IP IP20 Operation Temperature -20C +45C Storage Temperature -25C +55C Net weight 4.2kg Gross weight 5.8 kg Package

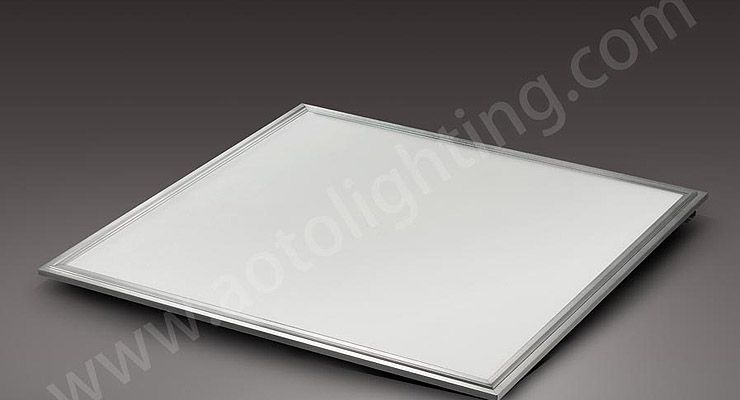

we are offering edge lit led panel light. total power(w) 40 luminous output(lm) 80lmw (4000k) product dimension 617*617*10.5mm featuresultra-thin, the thickness is 10.5 mm, edge-lightingheat dissipation: aluminum pcb which ensure heat dissipation in time as well as warranty long life-span of the light.light efficiency can reach 80 lmw.no pollution, no uv radiation, no rf interference, no flickering.easy installation: recessed, suspended, surface mounted.long life span 35, 000 hours.warranty: 3 years applicationcommercial lighting: high-class stores, shopping malls, hotels, restaurants, airport and so on.office lighting: conferencemeeting rooms, factories, offices and so on.institution buildings: schools, colleges, universities, hospitals, pharmacy and so on product parametersproduct no.: at-spl-s6262s2-040 brand: aoto dimension 617*617*10.5mm input voltage: 100-240v ac wattage: 40w color temperature: ww (3000k) nw (4000k) cw( 6000k) luminous: 3000lm 3200lm 3300lm luminous efficiency 75lmw 80lmw 82lmw ra 80 80 80 power factor 0.9 beam angle 120 ip ip20 operation temperature -20c +45c storage temperature -25c +55c net weight 4.2 kg gross weight 6 kg

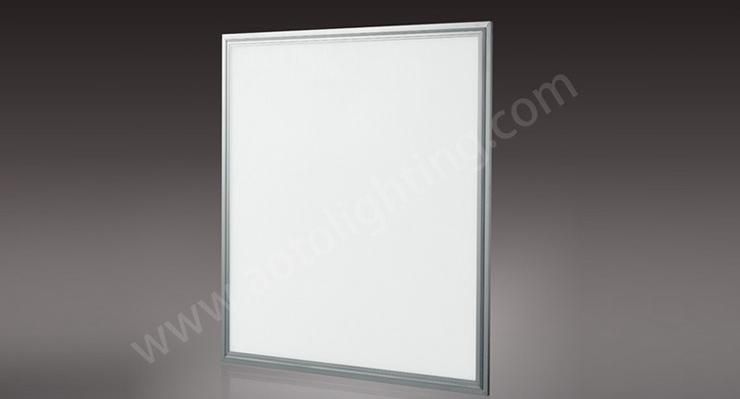

We are offering Edge Lit Led Panel Light . Total Power(W) 40 Luminous Output(lm) 80lmw (4000K)Product Dimension 597*597*10.5mm FeaturesUltra-thin, the thickness is 10.5 mm, edge-lightingHeat dissipation: Aluminum PCB which ensure heat dissipation in time as well as warranty long life-span of the light.Light efficiency can reach 80 Lmw.No pollution, No UV radiation, no RF interference, no flickering.Easy installation: Recessed, suspended, surface mounted.Long life span 35, 000 hours.Warranty: 3 years ApplicationCommercial lighting: high-class stores, shopping malls, hotels, restaurants, airport and so on.Office lighting: ConferenceMeeting rooms, Factories, offices and so on.Institution Buildings: Schools, colleges, universities, hospitals, pharmacy and so on. Product ParametersProduct No.: AT-SPL-S0606S2-040 Brand: AOTO Dimension 597*597*10.5mm Input Voltage: 100-240V AC Wattage: 40W Color temperature: WW (3000k) NW (4000k) CW( 6000k) Luminous: 3000Lm 3200Lm 3300Lm Luminous efficiency 75Lmw 80Lmw 82Lmw Ra 80 80 80 Power Factor 0.9 Beam Angle 120 IP IP20 Operation Temperature -20C +45C Storage Temperature -25C +55C Net weight 4.2 kg Gross weight 5.5 kg
