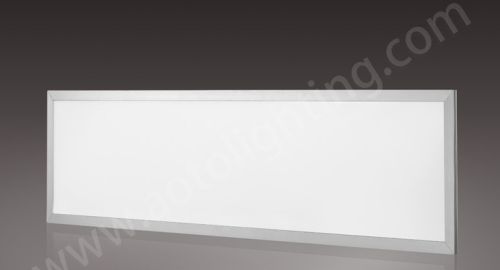

Edge Lit LED Panel Light

We are offering Edge Lit Led Panel Light.
Total Power(W) 76
Luminous Output(lm) 80lmw (4000K)
Product Dimension 295*1195*13mm
Features
• Ultra-thin, the thickness is13mm, edge-lighting
• Heat dissipation: Aluminum PCB which ensures heat dissipation in time as well as warranty long life-span of the light.
• Light efficiency can reach 80 Lmw.
• No pollution, No UV radiation, no RF interference, no flickering.
• Easy installation: Recessed, suspended, surface mounted.
• Dimmable: Infrared, 0-10v, DALI
• Long life spans 35, 000 hours
• Warranty: 3 years
Application
•Commercial lighting: high-class stores, shopping malls, hotels, restaurants, airport and so on.
• Office lighting: ConferenceMeeting rooms, Factories, offices and so on.
• Institution Buildings: Schools, colleges, universities, hospitals, pharmacy and so on.
Product Parameters
Product No.: AT-SPL-S0312S3-076
Brand: AOTO
Dimension： 295*1195*13mm
Input Voltage: 100-240V AC
Wattage: 76W
Color temperature: WW (3000k) NW (4000k) CW( 6000k)
Luminous: ≥5700Lm ≥6080Lm ≥6100Lm
Luminous efficiency ≥75Lmw ≥80Lmw ≥80Lmw
Ra ＞80 ＞80 ＞80
Power Factor ≥0.9
Beam Angle 120°
IP IP20
Operation Temperature -20°C ~ +45°C
Storage Temperature -25°C ~ +55°C
Net weight 4.2kg
Gross weight 5.8 kg
Package
