Shenzhen Rich Electronic Co. Ltd

Shenzhen, Guangdong, China

We are offering High Voltage Ceramic Disc Capacitor. Operating temperature range: -25 to +85 celium degree. Working voltage: DC 1, 2, 3, 6.3, 10 and 15kVWithstanding voltage: 1.5 times of working voltage 1kV

We are offering high voltage ceramic disc capacitor. Features:disc type, one-way leads to the wire; high withstand voltage , good insulation, low-lossrange of applications: suitable for the bypass, coupling, filtering in the electronic circuit . Completely in compliance with eu rohs (directive 2002/95/ec) standards, reach, pfos, pahs, halogen-free, 7p environmental protection standards. specifications:rated voltage: 500v 30kvcapacity: 0.1pf 0.22ufoperating temperature: -25 c to +125 cwithstand voltage: 1.5 times of the rated voltageinsulation resistance: 1000m or 100 fthe loss tangent: y5p 0.025; y5v: 0.050; y5u: 0.025rate of change of capacitance : y5p: 10%y5u: -56% to +22%y5v: -82% to +22%

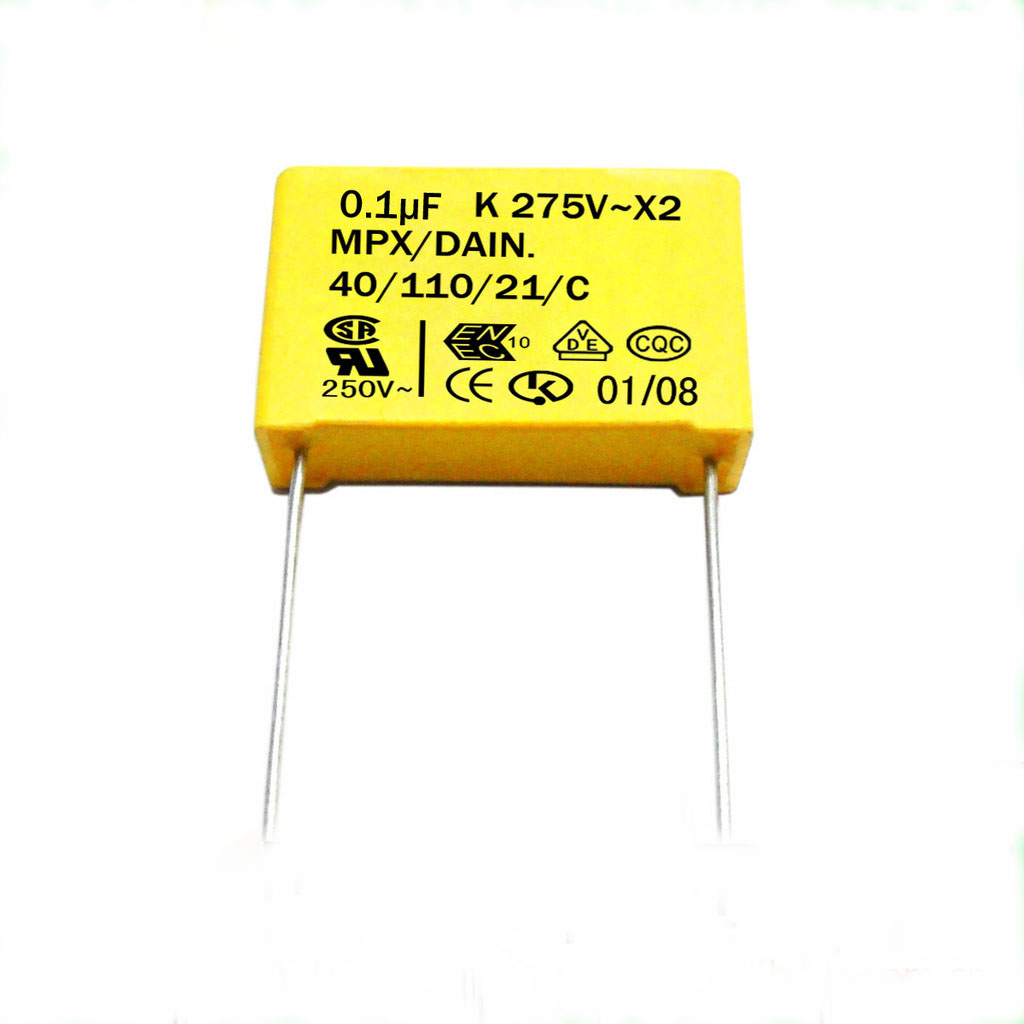

We are offering metallized polypropylene film capacitor (x2 capacitor ). 1.x2 capacitor 1uf 2.have small size with good seli-healing effect 3.strong moisture resistance 4.well proof voltage metallized polypropylene film capacitor, class type: x2-mpx non-inductively wound with metallized polypropylene film as dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin. features 1. Box type provides the identical outer appearance. 2. Withstanding overvoltage stressing. 3. Excellent active and passive flame resistant abilities. 4. Withstanding 2.5kv impulse voltage, class x2. typical applications: 1. As an across-the-line type noise suppression capacitor, and suitable 2. Grid power supply of electronic instruments and electronic equipment, switch, contacts produces a spark discharge sites. 3. Electric tools, lighting, hair dryers, water heaters and other household electrical appliances specifications: reference standards:gb/t14472-2005(china)iec60384-1 (international) en132400, en60384-14, ul1414, iec60384-14 rated voltage(ur):250vac(ul1414);275vac(enec/cqc), 310vac(ul) maximum continuous dc voltage630vdc climate category40/110/56/b operation temperature range:-40c - +110c capacitance range:0.0022f1.0f(ul, cul) ; 0.0022f 10f(vde, enec); 0.0022f 2.2uf(cqc) capacitance tolerance range:j(5%);k(10%);m(20%) dielectric:polypropylene film (25c5c)dissipation factor tan:0.15%(cr 1f ) 0.3%(cr > 1f )(25c5c, 10khz) insulation resistance(between terminals):100vdc, 1min(205c) c0.33f 30000m c>0.33f 10000 ms withstand voltage:between terminals cr1.0f 2000vdc(2s) cr>1.0f 4.3urvdc(or 1800vdc)(2s) between terminals to case 2100vac life. Test conditions:1002c, 1.25ur, 1, 000hours capacitance drift: 3% of the initial value
