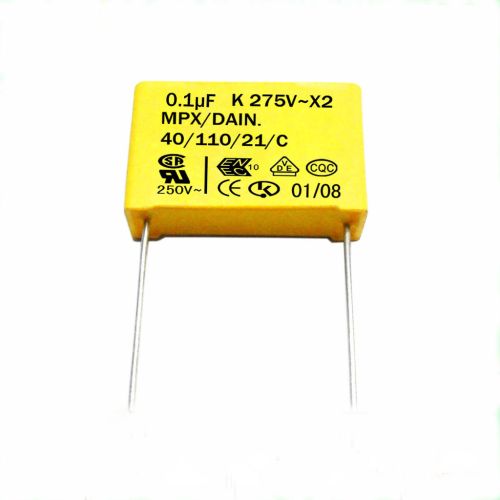

Metallized Polypropylene Film Capacitor, Packaging Type : yellow

We are offering metallized polypropylene film capacitor (x2 capacitor ). 1.x2 capacitor 1uf
2.have small size with good seli-healing effect
3.strong moisture resistance
4.well proof voltage
metallized polypropylene film capacitor, class type: x2-mpx
non-inductively wound with metallized polypropylene film as dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.
features
1. Box type provides the identical outer appearance.
2. Withstanding overvoltage stressing.
3. Excellent active and passive flame resistant abilities.
4. Withstanding 2.5kv impulse voltage, class x2.
typical applications:
1. As an across-the-line type noise suppression capacitor, and suitable
2. Grid power supply of electronic instruments and electronic equipment, switch, contacts produces a spark discharge sites.
3. Electric tools, lighting, hair dryers, water heaters and other household electrical appliances
specifications:
reference standards:
gb/t14472-2005(china)iec60384-1 (international)
en132400,en60384-14,ul1414,iec60384-14
rated voltage(ur):
250vac(ul1414);275vac(enec/cqc), 310vac(ul)
maximum continuous dc voltage
630vdc
climate category
40/110/56/b
operation temperature range:
-40°c - +110°c
capacitance range:
0.0022μf–1.0μf(ul, cul) ; 0.0022μf– 10μf(vde, enec); 0.0022μf – 2.2uf(cqc)
capacitance tolerance range:
j(±5%);k(±10%);m(±20%)
dielectric:
polypropylene film
(25°c±5°c)dissipation factor tanδ:
≤0.15%(cr ≤ 1µf )
≤0.3%(cr > 1µf )(25°c±5°c,10khz)
insulation resistance(between terminals):
100vdc,1min(20±5°c) c≤0.33µf ≥30000mω
c>0.33µf ≥10000 mω·s
withstand voltage:
between terminals cr≤1.0µf 2000vdc(2s)
cr>1.0µf 4.3urvdc(or 1800vdc)(2s)
between terminals to case 2100vac
life. Test conditions:
100±2°c,1.25ur,1,000hours
capacitance drift: ≤±3% of the initial value
