Shenzhen 1064 Laser Technology Co. Ltd

Shenzhen, China

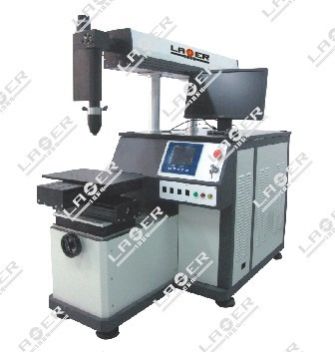

YAG laser cutting machine adopts Xenon lamp as pump source, the lamp burn certain frequency and pulse width light wave, the light wave shine the ND: YAG crystal in focusing cavity, activate the YAG crystal generate laser light, the laser light becomes to 1064nm pulse light through resonator cavity, the laser light is extended, reflected, focused to the surface of work piece, melt and gasify the workpiece surface to cut, furthermore, the certain pressure gas blow away molten slag. It is a high technology incorporating laser technology, numerical control technology, precision machine technology. 2YAG laser cutting features1The surface of cut is very smooth, no bur, the degree of roughness is below than Ra12.5.2Fast cutting speed, good cutting quality, non-contact cutting, the head effect of cutting edge is very small, avoid the down edge under punching shear, the cutting seam is not need to be reprocess.3 No damage on the workpiece, the laser cutting head is non-contact with workpiece, without scoring on the workpiece.4No matter the rigidity of cutting material, laser machine can no shape transformation cutting, such as: steel plate, stainless steel plate, aluminium alloy plate, hard metal etc.5Thin cutting seam, the laser beam focus into very small spot, the focus spot is with high energy density, the material is heat up to gasify status, evaporate to hole. In pace with the relative move of workpiece and laser beam, continuous holes join into very thin cutting seam.6The machine can cut all the metal and some non-metal material.3Applicable materials and applications: It is applicable for cutting and drilling the carbon steel, the stainless steel and various metals, aluminium alloy, copper and its alloy, titanium and its alloy, el molybdenum steel, also used for some non-metal, such as ceramic basilar plate. It is special applicable for metal plate, sheet metal. Applied to crafts and gifts, watches and jewelry, tools machining, diamond tools, decoration advertisements and laser processing services.4 YAG laser cutting machine main advantagesAccording to the graphics freely designed in the computer, any curve can be cut continuously and fast; With the full support of the software such as CAD, CORELDRAW, GERBER, its user interface is friendly and easy to operate;Adopts special cutting focus system, furthermore equips with coaxial protect gas nipple system.Adopts dual cycle cooler system, it can cut off the power supply of main system, and show warning.Easy to control, good adaptability, can work 24 hours continuously. 5 YAG laser cutting machine specifications:Item SpecificationsMax. Laser power 600W/400W/200WPhotoelectric rate 3%Wavelength 1064nmSingle pulse energy 80JPulse frequency 1-300HzControlling system PCRepetitive accuracy 0.05mmOrientation accuracy 0.01mmWork table travel(mm) 300*300mmElectricity requirements Three phases380V/50Hz/60HzConsumed power 15KWCooler Water chiller

1jewellery Laser Welding Machine Featuresjewellery Laser Welding Machine Mainly Used in Jewellery Patching Holes, Blister Repairing, Pocket Repairing and Jaw Hand Welding When Mount Parts. Small Welding Spot Diameter, Small Heat-affected Zone, the Welding Spot is fine and Aesthetic, No Need Handle After Weld, It Not Effect Mounted Pearls and Jewels, the Welding Quality is Excellent, the Speed is Fast, No Pollution, Can Realize Precision Repair Welding. 2applicationsit is Applicable to Precision Welding On Various Tiny Parts, for Example, Jewelry, Electronics, Communications, Precision Metals, Watches and War Industry, It also Can Be Used to Fill Blister of False Toot, Lead Wire for Ic, Balance Spring in Watches, Assembly Electron Gun Etc. 3suitable Materialit is Suitable for Spot Welding and Repair Wleding On Platinum, K Gold, Silver, Titanium, Stainless Steel, Copper, Aluminum, such Metals and Its Alloys.4spefications max. Laser Power 100w/150w/400wlaser Medium nd:yagwavelength 1064nmspot Diameter 0.202.0mmmin. Weld Pool 0.1mm0.15mmpulse Width 0.5ms20mswelding Depth 0.05mm3mmpulse Frequency 120hzpower Supply System singlechipmonitor microscopeadditional Aiming System ccd and Display

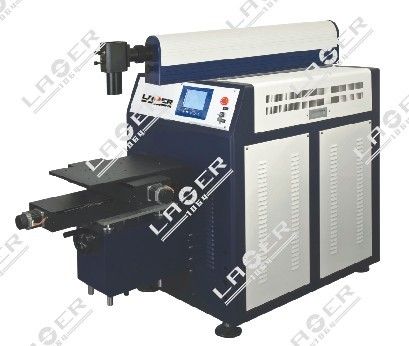

We are offering laser welding machine, 1 automatic yag laser welding machine principleautomatic yag laser machine weld in high power pulse laser, the pumpsource is xenon lamp, the laser working medium is nd: yag. Laser powerwarm-up the xenon lamp, the electric power supply electric discharge to xenonlamp, the lamp burn certain frequency and pulse width light wave, the light waveshine the nd: yag crystal in focusing cavity, activate the yag crystal generatelaser light, the laser light becomes to 1064nm pulse light through resonator cavity, the laser light is extended, reflected, focused to the surface of work piece, melt thesurface to weld. The required pulse frequency, pulse width, work table move speed, move direction can be controlled by plc or industrial pc, the laser power can beadjusted by change the current level, pulse frequency and pulse width. 2 auto yag laser welding machine advantages1high depth ration, the soldering seam is deep and thin, it is bright and artistic. 2lowest heat input, the low heat input to the working piece, fast welding and lowheat effect is as high power density, the very fast speed of melt process. 3high compactness, in the process of soldering seam generateing, molten bathstirring continuously, the gas overflow, generates to no air hole soldering seam, the high cool speed after weld can slightly refine the seam organization, itimprove the intensity, tenacity and combination property of soldering seam. 4strength the soldering seam, high temperature heat source and absorb fornon-metal component can purify the seam organization, reduce the impurity, change the dimension and distribution of impurity in the molten bath. No needelectrode or solder wire, the pollution in the soldering area is very small, theintensity and tenacity of soldering seam is even better than original metal.

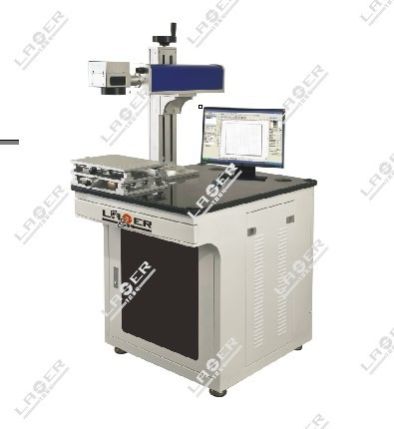

We are offering laser marking machine, the laser marking machine can be equiped with fiber, diode or yag laser souce. it is up to customers' requirenments. we advise customers to buy the fiber laser, because it s most stable laser system at present. And the price is much better after china manufacture high advantage operation.

1yag laser cutting machine principleyag laser cutting machine adopts xenon lamp as pump source, the lamp burn certain frequency and pulse width light wave, the light wave shine the nd: yag crystal in focusing cavity, activate the yag crystal generate laser light, the laser light becomes to 1064nm pulse light through resonator cavity, the laser light is extended, reflected, focused to the surface of work piece, melt and gasify the workpiece surface to cut, furthermore, the certain pressure gas blow away molten slag. It is a high technology incorporating laser technology, numerical control technology, precision machine technology. 2yag laser cutting features1the surface of cut is very smooth, no bur, the degree of roughness is below than ra12.5.2fast cutting speed, good cutting quality, non-contact cutting, the head effect of cutting edge is very small, avoid the down edge under punching shear, the cutting seam is not need to be reprocess.3 no damage on the workpiece, the laser cutting head is non-contact with workpiece, without scoring on the workpiece.4no matter the rigidity of cutting material, laser machine can no shape transformation cutting, such as: steel plate, stainless steel plate, aluminium alloy plate, hard metal etc.5thin cutting seam, the laser beam focus into very small spot, the focus spot is with high energy density, the material is heat up to gasify status, evaporate to hole. In pace with the relative move of workpiece and laser beam, continuous holes join into very thin cutting seam.3applicable materials and applications:it is applicable for cutting and drilling the carbon steel, the stainless steel and various metals, aluminium alloy, copper and its alloy, titanium and its alloy, el molybdenum steel, also used for some non-metal, such as ceramic basilar plate. It is special applicable for metal plate, sheet metal.
