Reflective lampshade dedicated automatic coating equipment, high-power electrode plate bombardment, symmetrical electrode evaporation, automatic control. With uniform film, acid, alkali, salt, water and other indicators in line with international standards to nano-technology means anti-external corrosion effects. Vacuum chamber to complete the evaporation of aluminum and plating protective film process (bombardment + aluminum + bombardment + charge + plating protective film) to prevent secondary pollution. 10.4-inch color man-machine interface touch screen, PLC configuration software, can be fully automated operation of the entire process.Use application area Car light protection film equipment for automotive light protection film, designed for cars, motorcycles lamps, in the vacuum chamber to complete the evaporation of aluminum and radio frequency plasma plating protective film. The equipment uses advanced plasma polymerization protective film technology, equipped with resistance heating evaporation system, to achieve the automotive lighting aluminum reflective film and polymer protective film once completed the production and technical requirements. According to the production of high-grade automotive lighting special, equipment configuration PLC automatic control system to improve production efficiency and ensure product quality. The plating of the plasma protective film through the national standard of automotive lighting testing, had acid.

Automated UV spray production line with high yield, Hengyang Jia Technology specializes in the following solutions: coating production line, completed electrostatic powder coating system, paint coating equipment, curing and drying furnace, cylinder and cyclone recovery system, water screen, wet wall and dry spray booth, paint Chamber, conveying system, pretreatment of plants. The following items are also available: powder coatings, powder filters, powder spray guns, guns, pumps and their equipment.The same time as the above-In addition, we can choose the coating line and coating line for automatic semi-automatic manual and special type aluminum metal plastic wood powder coating lines.The same time as the above-Clean UV solid production process:The same time as the above- Handling area - Manual electrostatic dust removal - Automatic electrostatic dust coating room - Spraying room - Constant pressure supply chamber - Spraying room - Coating room - Drying furnace - Ultraviolet device - Drying furnace

phone case UV coating process :loading -pre-treatment - electrostatic be dust -UV spary -IR leveling - UV curing - cooling - unloading .(we can remove or add some process according to your product )if you has any question for our production line , welcome contact to me , we provide the best service to solve your problem any time .The Benefit Of Coating LineShorten the production time , improved efficiencyNo harmful for human healthy and environmentLess maintenance , long time useCost capital lessBefore customized for you , please let us know below imformation for quick evaluation .What is your product, its material and applicationWhat is the possible max. size of your productWhat is your desired productivity per 8 hoursshift. This information is helpful for us to check suitable equipment solution and price quickly. UV coating The coating main bring a protecting and decoration fuction , For insrease the phone case rub-resistence perfermance and looks more beauty, general like to spray a UV coating . the UV spraying coating technology widely use in lots industry , such as ceramic , cosmetic box , daily bottle etc . Closely Relate with our life everywhere.There Are Main Process For Phone Case Line Before spraying should be made sure the work piece material , color , surface etc. info . Used mutil kind spray gun (6-8) type to spray

There Are Main Process For Phone Case Line Before spraying should be made sure the work piece material , color , surface etc. info . Used mutil kind spray gun (6-8) type to spray , to adjust a good angle position to get a evenly spraying and benefit for automatic gun operation In order to keep stability of gloss , rub-resistance , must be controlled the coating thickness by a special coating measuring instrument .silver bottom coating thickness :35m;second coating thickness :815m;surface coating thickness :810m; phone case UV coating process :loading -pre-treatment - electrostatic be dust -UV spary -IR leveling - UV curing - cooling - unloading .(we can remove or add some process according to your product )if you has any question for our production line , welcome contact to me , we provide the best service to solve your problem any time .The Benefit Of Coating LineShorten the production time , improved efficiencyNo harmful for human healthy and environmentLess maintenance , long time useCost capital lessBefore customized for you , please let us know below imformation for quick evaluation .What is your product, its material and applicationWhat is the possible max. size of your productWhat is your desired productivity per 8 hoursshift. This information is helpful for us to check suitable equipment solution and price quickly.

UV coating The coating main bring a protecting and decoration fuction , For insrease the phone case rub-resistence perfermance and looks more beauty, general like to spray a UV coating . the UV spraying coating technology widely use in lots industry , such as ceramic , cosmetic box , daily bottle etc . Closely Relate with our life everywhere. There Are Main Process For Phone Case Line Before spraying should be made sure the work piece material , color , surface etc. info . Used mutil kind spray gun (6-8) type to spray , to adjust a good angle position to get a evenly spraying and benefit for automatic gun operation In order to keep stability of gloss , rub-resistance , must be controlled the coating thickness by a special coating measuring instrument .silver bottom coating thickness :35m;second coating thickness :815m;surface coating thickness :810m; phone case UV coating process :loading -pre-treatment - electrostatic be dust -UV spary -IR leveling - UV curing - cooling - unloading .(we can remove or add some process according to your product )if you has any question for our production line , welcome contact to me , we provide the best service to solve your problem any time .The Benefit Of Coating LineShorten the production time , improved efficiencyNo harmful for human healthy and environmentLess maintenance

Heng Yijia is a leader in oil painting cycle time, accuracy and range of motion. They are high-speed, compact 6-axis robots, even the most demanding and complex applications can provide excellent performance.Small automatic painting equipment with savings in investment costs, production efficiency and automatic line with the same output, sprayed out the same product quality. Flexible operation, suitable for different sizes of products.Hengyi Jia is providing more than half of the coating line suppliers in South China with high-end coating solutions. We are the power source for a complete automated mechanical solution. Our powerful engineering department can provide customers with the best programming, and graphics quickly into a real machine. Our automatic painting robots provide a slim body and a compact wrist pitch axis. This allows the robot to easily enter the limits and limitations of the work from many angles, and smoothing can not be achieved with a competitive model.The same time asWhy choose us?We insist on core technologyOur factory for more than a decadeHigh quality and modern coating production lineReduce material waste and productivityReduce standard cost to optimize storage and complex processesShorten the product upgrade cycle and equipment investmentImprove the working conditions of workersReduce the technical requirements of workersFAQQuestion: What is the warranty for the coating line?A: All of our production lines have a 12 month warranty and life support.

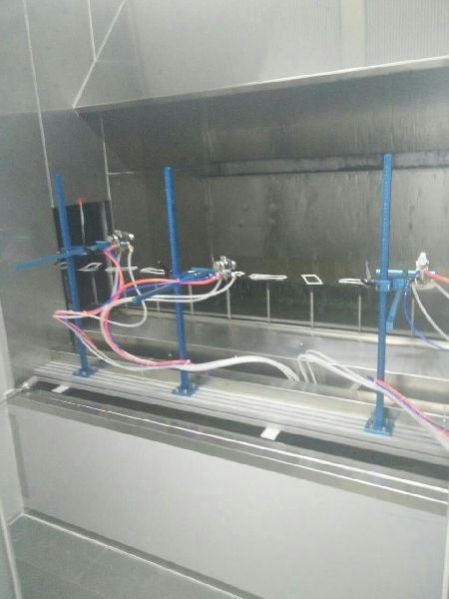

High Efficient Automatic UV Spray Coating Machine Auto Paint Equipment for Phone CaseDescription:1. Painting equipment is inseparable from the solvent, especially some components of equipment;2. If paint material is flammable and explosive , it is necessary to prepare fireproof & explosion-proof of equipment;3. To this equipment, it is with high requirements of paining process and high precision work.4. Low load capacity and less heavy equipment;5. It is easy to make a better assembly work plan;6. In large extent, if this equipment is used in production, cost will be saved.Festures:1. Automatic painting work system;2. Fast and high efficient work;3. High precision;4. It can be applied with assembly work, like assembly line, belt conveyor etc.5. Wide painting Application: small plastic case, small metal case, mini wood box, like Mouse shell, phone case, power case, plastic parts

This set of uv coating machine is not fully automatic uv coating line, it's semi-automatic painting machine for uv paint and rubber paint. the coating system included a unit of mini automatic painting machine , a tunnel oven and uv oven.the features is both for uv painting or rubber painting . For UV coating process : spray uv paint -leveling in tunnel oven-drying by uv oven-unloading For Rubber paint spray rubber paint-drying in tunnel oven, turn off uv oven while spray rubber paint. invest low and high effeciency.

This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.It's the more advanced technology to replace traditional electroplating way.Popular colors which could get by PVD:Real gold an real rosegold coatingImitation gold series: TiN, ZrN, TiN+Au, ZrN+AuRose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, CuSilver white series: CrN, CrSiN, Zr (micro N)Grey series: Ti, stainless steel (S.S), (S.S) NCoffee color series: TiCN, TiAlCN, ZrCBlue series: TiO, CrO, TiALNBlack Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLCThe equipment integrates the plasma treatment, high-end cathode magnetron sputtering, resistance evaporation coating equipment, large load rotation frame and the automatic control technique. It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall. The equipment makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.

Product ApplicationThis spraying mchine is professional design for motorcycle helmet coating. Its design depend on the shape and size , coating process of motorcycle helmet , we support Amercian GRACO 308 diaphram pump and Japanese ANEST IWATA air spray gun. When the motorcycle helmet transported to the spray zone, the motorcycle helmet drived to continue rotating, then the machine start to spray, match the line speed. The machine can spray a large number of product with special fixture.Clean automatic painting and plating helmet equipment:1. With automatic gun spray paint shop2. The paint room adopts HEPA filter3. Automatic de-ion booth with automatic painting pavilion4.10K clean room forcing automatic UV spray booth5. Using SS304 automatic spraying workshop6. Spindle conveyor belt with VFD control automatic painting room7. Flash area, infrared oven and UV curing oven for UV spray booth8. Automatic painting between different processes easy to transform9. Air handling unit with automatic spray chamber filter 10. The vacuum metallization of the automatic spray booth is optional.

Product Name : Spot movable spray painting machine Machine dimension: W400*D400*H1300(mm) Process: loading---pop switch-----auto paint spraying--unloading Production capabilities: 400-800 pcshour Max product size: diameter 350*250(mm) Spray guns quantities:1-4 pcs Advantage: machine occupy small space, movable and instead of labor , quality products, save cost, excellent quality, high effeciency, operation easy Suitable filed : mobile casemousewine packagecapcamarawater bottleheating bottleradioearphonehelmetcrafts(plastic, metal) partsetc. special for round shape. main includes: main structure, front turnning system, spray gun control system water curtain booth match : booth for manual spray painting.

Online reciprocating spray painting machine Machine dimension: W2400*D2000*H2000(mm) Process: loading---auto paint spraying--unloading Production capabilities: 40-60 sq.m hour Max product size: W600*H equalsmaller than 20(mm) Spray guns quantities:4 pcs Advantage: instead of labor , quality products, save cost, excellent quality, high effeciency, coating speed fast , operation easy Suitable filed : flat plate, tray(plastic & metal) etc flat shape product. main includes: main structure, front turnning system, spray gun control

Semi-automatic painting machine, CNC automatic UV paint coating lineIn the case ofdescription:Wide range of work, fast, high precision, especially for metal, plastic, wood and other materials, small and medium-sized spray, with turntable, rail conveyor chain system and other auxiliary equipment integration operations.(1) coating equipment and solvent can not be separated from a lot of ingredients to solvent.(2) paint flammable and explosive materials, multi-part equipment for flame retardant explosion-proof treatment.(3) coating process requirements more sophisticated, high precision equipment requirements(4) equipment load is low, heavy equipment rarely.(5) Painting equipment is easier to plan production line, effort.Small automatic painting equipment, spraying speed can be adjusted, the speed of 3-7m mmin. Chain pitch 50.8mm, the rotor has a clockwise and counterclockwise rotation function. To ensure that the product surface can be sprayed evenly,

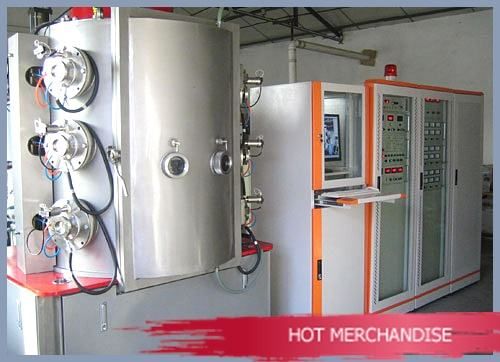

HYJ is a professional evaporatedvacuum coating equipment, evaporated vacuum coating equipment, evaporated vacuum coatingequipment, evaporated vacuum coator, evaporated vacuum metalizingequipment, evaporated vacuum metalizing oven, vacuum plating equipment, vacuum plating oven manufacturer, factory, plant and supplier, we are always at your service. Model 1800 Vertical double door high vacuum coating equipment Vacuum coating equipment description 1.This equipment is mainly used for steamed after pretreatment of plastic products surface metallized or Color film, that is, plastic surface metallization and colored shaped. The evaporation is under high vacuum to aluminum (AL) or other suitable metal heating, make the metal vaporization, forming metal vapor molecules, scattering around the container, because the plating on the surface of the base temperature is low, the vapor molecules on the surface of the condensation in the base, the formation of membrane layer, can also be evaporated zinc sulfide produced on the surface of silicon and oxygen in color decorative pattern, such as the following, cosmetic shell, toys, light, reflective cup size specifications, etc.). 2. Application and advantages: This equipment is my company development and production of multipurpose vacuum coating machine, the machine is available In plastics, ceramics and other non-metallic materials and metal surface treatment

Ceramicporcelain tableware PVD metallizing machine is mainly used for ceramic tile , porelain , ceramics for daily use products (such as tableware , stationery ), ceramic (such as vases , figures , ornamental furnishings )plasma coating .This series equipment is mainly configured for cathodic electric arc evaporation source, but also with bias power and magnetron sputtering target.Features: equipped with powerful ventilation systems, pumping fast, High loading capacity, high productivity, low production costs.This machine can get imitation gold color, rose gold, silver and white, black and other color films; it adopts decal paper and coated with water-soluble coating technology so that can get a variety of color block patterns.

Our products have a scientific, advanced, efficient, environmentally friendly, energy-saving advantagesCertification ISO90012. after-sales service3. Strong technical support4. Size can be customizedThe same time as the above-General automation coating line: According to product characteristics and customer ability requirements, with reference to advanced surface coating technology and technology, designed and manufactured excellent coating equipment and coating environment, in order to give full play to the performance of paint, paint quality and reduce production costs , Improve economic efficiency.The same time as the above-Uses: the need for production site, through the production line automation, semi-automatic painting, painting (metal, plastic, etc.), the formation of a solid continuous surface coating, and play decorative, protective, and special function.The same time as the above-The system is suitable for: electric rice cooker pot, electric baking pan, baking pan, pressure cooker, computer chassis, key chain, aluminum heat sink, lipstick tube, aluminum processing.CE certificate clean Shenzhen spray coating production line plastic piecesThe same time as the above-A, plastic products automatic coating line.B, easy to adjust the angle and distance of the gunC, rotation speed adjustableD, we design standard and artificial intelligence, combined with high stability and advanced technology.E, with high quality gun.

Automatic painting UV vacuum coating lineProfessional commitment to complete sets of coating line engineering, clean coating equipment research and development, manufacturing equipment coating production line, reasonable layout, stable performance, high automation process, safe and reliable, saving energy. From the beginning of the beginning of the dust, spray, drying curing, cooling until the next part to take the pipeline operation, the formation of integrated system to complete and reduce human resources.Automatic Spray Line Features:1, electrostatic dust, automatic spraying, drying, UV light curing automatic assembly line operations, suitable for continuous production batch, high yield, uniform coating.2, the conveyor chain and rail contact point configuration bearings, with the precise track, autobiographical uniform, smooth and smooth running without jitter.3, electrostatic dust removal system, imported high-voltage electrostatic generator, ion nozzle can be adjusted up and down before and after mechanical adjustment, with the product size varies, coupled with the rotation of the work, dust without dead ends.4, the curtains of environmental protection spray paint room design, smooth air clean, spray room indoor deflector and spoiler carefully arranged, so that chaos away from the workpiece, and quickly remove the pollution, purification 100, 000.5, UV light curing with a number of UV light-solid lights, arbitrary adjustment of the distance and angle of exposure.

Aluminum vacuum coating machineMetal wire (aluminum) physical violence, melting and evaporation of the vacuum chamber, attached to the resistance wire. The vaporized metal molecules are deposited on the substrate to obtain a smooth film and a high reflectivity. Thus, the surface of the article can be made and beautified.Key words: reasonable structure, fast film forming speed, pumping speed, short cycle time, high efficiency, easy operation, low energy consumption, stable and stable performance.Industrial, PET, nylon, metal, Boli, glass, ceramic, TPUElectroplating effect: the general plating surface, dumb (half mute, all dumb), electroplating process wrinkles, lighting processing, raindrops seven colors; Color: gold, silver, red, blue, green, purple, multi-color and so on. Technical parameter: Mode Dimension HYJ-1214 HYJ-1416 HYJ-1618 HYJ-1820 1200*1400mm 1400*1400mm 1600*1800mm 1800*2000mm Film Type Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc. Power source Type Thermal evaporation power, ion bombard power, RF power Vacuum chamber

UV Oven Features:1. Fresh air filtration system with 10, 000 clean levels of air supply.2.UV oven work style: continuous work plus rotation.Ultraviolet lamp distance adjustable.4. Time function of UV oven working time.5. Adjustable UV intensity.6. When the UV oven is stopped, the ASU will be delayed.7. UV lamp operating current, temperature alarm function.8. The current of the suction and motor shows current overload.9. Automatically check and adjust positive pressure.10. UV oven automatic alarm.Product specificationsCertification ISO90012. after-sales service3. Strong technical support4. Size customization5. Warranty: 1 yearWhat is the details of the HENGYIJIA-90m spray lineThe same time as the above-1. The deposition rate is fast, the production efficiency is high, the coating has excellent brightness and good adhesion.The same time as the above-Intelligent automatic control, easy to operate, without any experience.The same time as the above-3. Environmental protection, no waste water and gas.The same time as the above-4. Through HENGYIJIA manufacturing the latest technology, but also through the CE and ISO international quality management system certification.The same time as the above-Specifications our HENGYIJIA-90m spray lineThe same time as the above-Automatic UV coating lineThe same time as the above-The same time as the above-Main drive chain 90mUV lamp fan 2.2kw (2 sets)Spray fan 5.5kw 1 set2 sets of spray booths (one for primer, one for finish)UV light 5KW

The leading supplier of coating equipment, closely around the needs of customers continue to innovate for customers to create the most value. We are open to global partners to build technology and service advantages in new energy, new materials, construction automotive, precision manufacturing, heavy industry military fields. We are committed to the enterprise, research institutes, film coating processing center to provide competitive integrated solutions and services.The company's products are: continuous magnetron sputtering coating production line, multi-function IF magnetron sputtering multi-arc composite ion plating machine, IF magnetron sputtering coating machine, multi-arc ion plating machine, optical coating machine, evaporation coating equipment And other series of vacuum coating equipment.Products are widely used in solar energy, semiconductor, Low-E glass, photoelectric, flat panel display, die, watches and clocks, hardware, 3C products, plastics, ceramics and so on. The company has a sound R & D system, manufacturing systems and customer service system, and employ a number of well-known experts at home and abroad. At present, products and technology throughout the country and overseas areas.Now we introduce our evaporative coating machine, this equipment is the ideal equipment for cheap plastic parts. Any color of the plastic after the vacuum coating can be plated gold, silver, colorful, red, purple, blue, gray, black and other bright colors, with improved

Oven Infrared tunnel furnace and UV ovenTEM: 50-90 degreesHeating tube and UV lampMirror stainless steel inner wallT50mm rock insulationSCR unit Stainless steel spray booth Size:3.0*2.5*2.2mSS structure: SS304Water Tank: SS304Explosion-proof lighting systemHEPA Filter: efficiency 99.99%Exhaust fan, Air volume-12000 mhrWith explosion proof glass observation windowSpray Gun: IWATA UV Automatic Coating Machine: 1. automatic coating machine with vacuum matalizing plant 2. UV base coat and UV top coat for this spray painting line 3. low pressure spray guns with diaphragm pump for this automatic coating machine 4. flashoff zone, IR oven and UV curing oven for this automatic coating machine 5. UV automatic coating machinewith 10K clean room 6. automatic coating machine with spindle conveyor and VFD control 7. air handling unit attached with spray painting line 8. deionizing booth with clean class 10K for UVautomatic coating machine 9. spray painting booth with full SS for this UVautomatic coating machine 10. high output, high quality and low rejection for dustfree automaticautomatic coating machine

UV light curing coating equipment is designed for UV coatings, inks, plastic and other equipment in an instant to complete the curing, the essence is to rely on a certain intensity of UV ultraviolet radiation to achieve curing.Applicable scope: one of the low temperature models, button contact interface, suitable for low temperature curing requirements of the product applications, such as: plastic, cosmetic packaging containers, electronics, electrical appliances, hardware and other surface dust free automatic spraying, especially in the vacuum coating industry is widely Application of watch industry applications, plastic and metal case can be applied.Features:Product quality Appearance bright color, hardness, wear resistance, solvent resistance, curing speed, is the ideal curing coating equipment.1, smooth operation, uniform, do not turn away; can greatly improve the product yield, reduce defective, waste.2, with the original mandatory rotation of the chain. The design uses a sprocket to drive the chain.3, the machine spray cabinet made of stainless steel, rust and easy to clean oil.4, one of the low temperature models, friendly interface, nice appearance, applicability.5, UV light from the mesh belt surface is precisely adjustable, imported special (DICHROIC) low-temperature type reflector, light uniformity is good.6, a reasonable cooling system configuration, UV light intensity can be adjusted 50%, 75%, 100%, UV lamp life of up to 1000 hours or more.7, UV lamp

The lamp as a functional part, requires excellent heat resistance, mechanical properties, low fog and good appearance. In general, in order to achieve a good appearance and reflection effect, the lamp must be through the painting and vacuum evaporation and other post-processing process. Paint can improve the flatness of the surface of the lamp, while reducing the small molecules within the material precipitation, improve the pass rate of evaporation; vacuum evaporation makes the lamp with a metal effect, good appearance and reflection effect. However, painting caused high costs at the same time, the environment will cause pollution. At present, many manufacturers tend to use spray-free direct deposition process. In order to meet the needs of this market, Hengyi Jia vacuum research and development to provide customers with innovative solutions, introduced HYJ-1350M lamp protection film special coating machine and successfully used in Shenlong, FAW, Dongfeng, Geely, JAC and other lamp plating , In a number of lamp manufacturers are widely used. HYJ-1350M coating machine with integrated design, nice, compact structure, small footprint. Single-axis, the size of the car is not limited, using different fixtures to ensure that the film is more uniform. Pumping speed, 7-8 minutes to complete a coating cycle, improve work efficiency, saving time, labor and power consumption. To ensure that customers can better achieve industrial

Clean the paint line for the phone coverThe same time as the above-I provide the phone shell, portable computer keyboard, key cover, buttons and other special cleaning automatic painting equipment. Mobile phone shell surface spraying special automatic dust-free electrostatic spraying production line, high yield, good cleaning effect, uv effect can achieve the actual needsThe same time as the above-Principle Features: loading and unloading - spraying - leveling - drying (or UV curing) - unloading, integrated automation clean coating equipment. Using man-machine interface input, PLC programming control, simple and reliable operation. The most prominent feature is the high yield (1200-1500 sets per hour spray gun), high pass rate (spray pass rate higher than 96%). Coating thickness uniformity and stability. Is the phone shell, keyboard manufacturing mass production of the preferred equipment.The same time as the above-Me, the right product:The same time as the above-Mobile phone, camera, mp3, speaker box, toy, cosmetic box, keyboard, mouse. DVD and so onThe same time as the above-Second, the spraying process:The same time as the above-Loading - Manual working Electrostatic dust removal - Automatic electrostatic dust removal - Automatic spraying - Vertical baking cooling - UV curing - Unloading.The same time as the above-III, Dimensions: L 16 m W 6 m H 3 m. (Planning is based on customer shops and products)Fourth, the process data:The same time as the above-One.

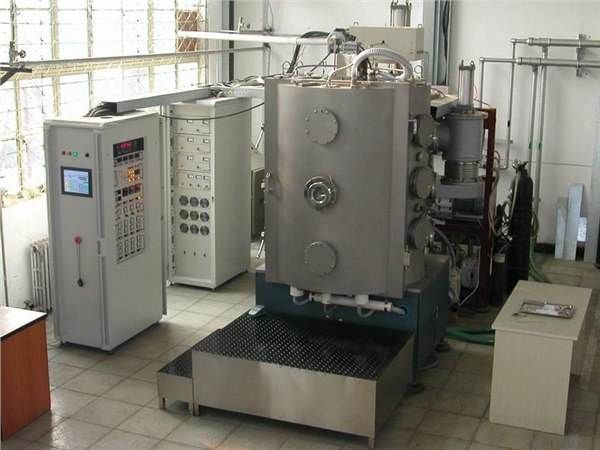

Multi-arc ion plating machineArc ion plating machineProduct Characteristic:Vacuum Multi-arc Ion Coating Machine is a high-tech environmental friendly products for a variety of metal surface coating.Applications:For example: the watch industry (strap, case, dial, etc.), hardware industry (sanitary ware, door knobs, locks, etc.)The architecture industry (stainless steel plate, stair railings, columns, etc.), precision mold industry (standard mold, etc.)The tool industry (drill, piston rings, alloy wheels, etc.), as well as pens, glasses, etc., to the surface both beautiful and wear functional Wear layer. The main coated film: ions of gold, silver ion, titanium nitride film, zirconium nitride film, titanium aluminum film, chromium nitride, and RP-plated and other superhard functional metal film, the workpiece coated by Coating machine can improve hardness, wear resistance, anti-corrosion and more beautifulPrinciple:The burning theory to evaporation source to the production of a self-sustaining arc discharge with the anode , Release cathode gases ions from the cathodic arc brilliant point. Due to the current local focus, the Joule heat generated so that thelocal outbreak of the cathode material to ionization, combined with the reaction gas under the action of the binder bias, the formation of A plated film deposited on the machine surface.

It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.) and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tilecups, computer, mobile phone, watch& jewelry, sanitary, home appliance, hotel products etc.Theequipmentmakesfullautomationofthecoatingtechnologycometrue.Itusesthevacuumcoatingtechniquetocoatonthesurfaceofthebasematerial.Ithasthefeaturesoflowcost, highqualificationrate, greenenvironmentalprotection etc.This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.It's the more advanced technology to replace traditional electroplating way.Popular colors which could get by PVD: Real gold an real rosegold coatingImitation gold

Automatic Spray Paint workshop:Automatic UV coating can be used in the paint shop2. Conveyor belt (floor conveyor overhead conveyor) for complete paint shop line3. Paint shop with paint pump, paint flow control and paint mixing ratio4. RT-85 C convection oven baking varnish5. VFD control of the supply and exhaust of the paint shop6. All paint technology information can be programmed for future use7. Clean room for the paint shop: clean level 10000, clean painting quality higher8. Paint workshop air handling unit: cleaning level 10000, humidity 60-65%, temperature 25-28 degrees9. Curing oven: infrared oven, convection oven (temperature: 2 degrees)10. Paint Shop Pretreatment Power Washing Machine: According to the requirements of 4 - 9 tanks11. This paint shop can choose UV or PU paint12. The quick color change system (optional) is designed to minimize gun cleaning and paint mixing times (without stopping production), thereby improving plant efficiency and effectiveness;Central control panel operation and maintenance easy This fully automatic painting shop with good quality, small size, low power consumption, low rejection rate

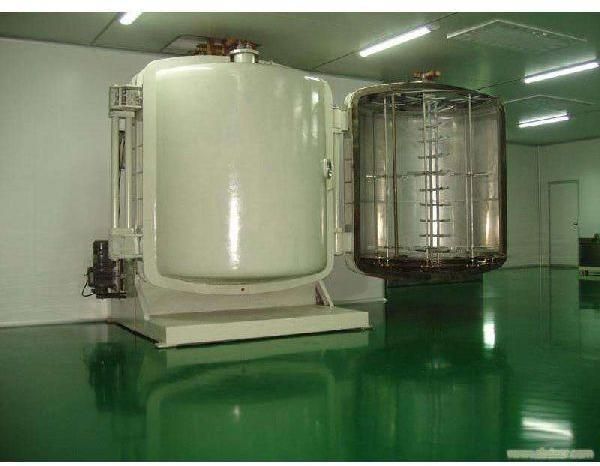

product description: Plastic aluminium vacuum metallizing machine orPVD vacuum coating machinecan be widely used to do the decorative coating and function coating on the surface of plastic, ceramic, glass , resin, candle and metal material.It equipped withhigh efficiency, full automatic, vacuum technology, evaporation coating and electromechanical integration technology together. Its an ideal equipment to do the high-grade decorative coating. The processing . ABS, AS, PC plastic processing process:Loading --- electrostatic dust ---- spray primer ---- infrared leveling ---- UV light curing ----vacuum coating aluminum ---- electrostatic dust ---- spray paint - - Infrared leveling --- UV light curing ---- UnloadingPP, TPU, PET plastic processing processLoading --- electrostatic dust ---- flame treatment ---- spray spray primer ---- infrared leveling ---- UV light curing ---- vacuum coating aluminum ---- electrostatic dust - - Spray finish ---- Infrared leveling --- UV light curing

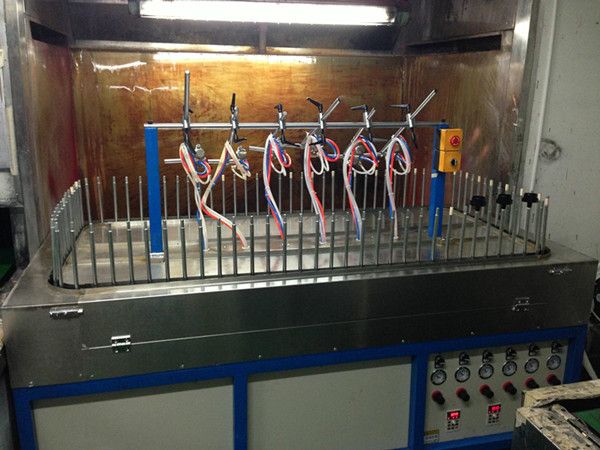

Our company for small pieces of sofa wooden feet, home sofa feet need to do the paint processing, and my company to investigate foreign companies to understand the foreign company's production workshop covers an area can not be too large, expensive rent. Our company specially designed a small automatic painting equipment, spraying about 5, 000 per day, small spray equipment spraying speed 3-6m min, sprayed out of the product surface effects and large paint production line effect the same. Surface color uniform, automatic painting equipment with clockwise and counterclockwise rotation function, you can spray solid wood feet, sofa wood feet, tapered wooden feet and square wooden feet. Small automatic painting equipment investment is low, apply for each individual and company that wants to spray products independently.

SpecificationsVacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow plating1.Ti-gold, Rose gold, silver, Product introduction:Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow platingModel: FOXIN-TG-2040Size:2000H4000mmPower: 200kwOccupied area: 35-55mArc source: 16-24setsCoating Film: Decorative coatingAdvantage: High ionization rate, high deposition rate, stability and low temperature to magnetronsputtering, fine particles, Simple operation, high yield etc.Application:Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow platingColor: goldrose glodblack goldsilverchampagne gold, sapphire blue, black, etc.Coating: TiN, CrN, ZrN, TiCN, TiCrN, TiNCRemark: Specially tailored according to customers` products and process requirements. Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow plating Technology Parameter Vacuum Multi-Arc Ion Coating Machine for Glass Metal Ceramic Golden Silver Multi rainbow plating FOXIN-TG Series Parameter Multi-Arc Ion Coating Equipment Model(Diameter less than 2m) Model HYJ-1418 HYJ-1620 HYJ-1820 HYJ-2021 HYJ-2023 HYJ-2040 Chamber(mm) D1400H1800 D1600H2000 D1800H2000 D2000H2100 D2000H2300 D2000H4000 Structure Vertical door, hanging or horizontal cart structure, pumping system and water cooling system Vacuum System Sustaining Pump

Theequipmentintegratestheplasmatreatment, high-endcathodemagnetronsputtering, resistanceevaporationcoatingequipment, largeloadrotationframeandtheautomaticcontroltechnique.Ithasthereliablework, goodrepeatabilityandconsistency., fastdepositionrate, highadhesion, finefilm, etc.Thecoatingfilmisdenseandhardnesswithlowfrictioncoefficient, tokeepthesmoothnessoforiginalworkpiecesurface, goodflexibility, hardtobreakandfall. Theequipmentmakesfullautomationofthecoatingtechnologycometrue.Itusesthevacuumcoatingtechniquetocoatonthesurfaceofthebasematerial.Ithasthefeaturesoflowcost, highqualificationrate, greenenvironmentalprotection etc. This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.

Real gold an real rosegold coatingImitation gold series: TiN, ZrN, TiN+Au, ZrN+AuRose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, CuSilver white series: CrN, CrSiN, Zr (micro N)Grey series: Ti, stainless steel (S.S), (S.S) NCoffee color series: TiCN, TiAlCN, ZrCBlue series: TiO, CrO, TiALNBlack Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3and other decorative films etc.) and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tilecups, computer, mobile phone, watch& jewelry, sanitary, home appliance, hotel products etc.Theequipmentmakesfullautomationofthecoatingtechnologycometrue.Itusesthevacuumcoatingtechniquetocoatonthesurfaceofthebasematerial.Ithasthefeaturesoflowcost, highqualificationrate, greenenvironmentalprotection etc.

vacuum metallizing plantuv vacuum metalizing coating 1. it is computerised and painting process parameter can be recorded in robot;2. this Dustless Robot Automatic Spray Coating Line for Plastic Parts is suitable for various shapes of articles;3. PLC programing and control system is used in this Dustless Robot Automatic Spray Coating Line for Plastic Parts;4. a multi-axis servo motor is used in this Dustless Robot Automatic Spray Coating Line for Plastic Parts so it helps to make full use of paint and to get stable coating effect;5. it is a high automation Dustless Robot Automatic Spray Coating Line for Plastic Parts, which helps to increase production and to save area; 6. the program in this Dustless Robot Automatic Spray Coating Line for Plastic Parts can control paint spray area and flow. 1. turnkey project of dustfree gun-fixed Automatic UV Coating Line + Vacuum Coating Chamber Plant for plastic parts2. turnkey dustfree robot automatic UV spray coating line3. turnkey dustfree reciprocator automatic spray coating line4. turnkey dustfree automaticmanual spray coating plant (UV line PU line)5. air make-up unit air handling unit6. centralized thermostat air conditioning system7. clean class (10, 000-100, 000 class)8. IR curing oven convection oven9. UV curing oven10. various conveyor systemVacuum Coating Chamber Plant for UV Coating plant1.vacuum coating chamber2.vacuum coating plant + UV coating plant3.SS vacuum coating chamber body4. conveyorised automat

1. Small size multi-arc ion plating machine is mainly used for painting stainless steel decorative panels. Can also be coated. High efficiency, no pollution. In the domestic market selling.2. Coat color: rose gold, titanium, coffee gold, black, purple gray, sapphire blue, champagne gold and so on.3. Coating: TIN, TIC, CrN, ZrN, TICN, TiAIN, etc. (ion coating machine coated workpiece can improve the hardness, wear resistance, better corrosion resistance)4. Advantages: deposition speed, high ionization rate, simple operation, high cost, low cost.5. Mode:(1) semi-automatic automatic(2) automatic bombing(3) precise control of various processing time Product name HENGYIJIA Magnetron Sputtering Vacuum Coating Machine Vacuum Chamber Size Decide according to the substrate size and output Substrate hardware, glass crafts, ceramic crafts, etc Coating FIlm super-hard wear-resistant film, anti-corrosion film, decorative film etc Coating colors gold, rose gold, coffee, brown, bronze, blue, black, white, gray etc. Coating material stainless steel, aluminum, titanium, tungsten and other metal films as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC) and non-metallic composite coating etc. Applications hardware, glass crafts, ceramic crafts such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on. Weight 3Tons-8Tons

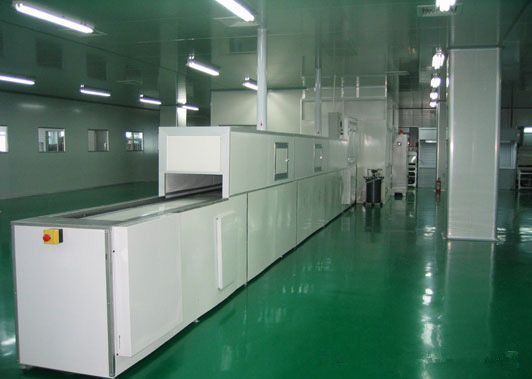

Support type electric bakeout furnace in dust free areaOur company provides mobile phone shell, portable computer keyboard, key cap, buttons, and other special clean automatic coating equipment. The mobile phone shell surface spraying special automatic dust-free electrostatic spraying production line, the yield rate is high, the clean effect is good, uv effect can be reached the actual needPrinciple characteristics:loading- dedusting- spraying - levelling - drying (or UV curing) - unloading, integrated automation dustless coating equipment. Adopts the man-machine interface input, PLC programming control, simple operation and reliable. The most prominent characteristic is high output (per hour can spray keyboard 1200-1500 sets), and the percent of pass is high (spraying qualified rate above 96%). Coating thickness uniformity and stability. It's the prefered device for cell phone casing, keyboard manufacturing mass production.I, suitable products:Mobile phone, camera, MP3, speaker box, toys, cosmetics boxes, keyboard, mouse. DVD, etc.II, the spraying process:loading - manual work electrostatic dust removal automatic electrostatic dust removal automatic spraying - standing baking cooling - UV curing - unloading.III, appearance size: L 16 m x W 6 m x H 3 m. (planning is according to the customer shop and product situation)IV, process data:a. The chain conveyor speed: 0-8 mmin.b. The workpiece rotation speed: 10-200 rmin.

PVD Plastic Glass Chrome Plating Machine Working Principle:This equipment combined magnetron sputtering and vacuum evaporation techniques within the same coating equipment, the only use of magnetron sputtering cathode glow discharge to the target atoms spill and partially ionized film deposited on the substratewhile can be used by resistance heating in a vacuum feed molten metal plating and allowed to vaporize and then deposited on the substrate film. Increased use of facilities and flexibility.Features:The device configuration of the plasma processing equipment, high efficiency cathode magnetron sputtering cathode and resistance evaporation devices, designed to switch a large load of aircraft parts, using automatic control technology. fast deposition rate, high adhesion, delicate compact, high surface finish , uniform consistency, machine coating process to achieve full automation, load capacity, reliable work, qualified high cost of production low, green.Application: The chrome plating machine apply to mobile phone case and other plastic the surface of metal, non-conductive film and the electromagnetic shielding film deposition.Mainly applied to computer shell, mobile phone shell, household appliances, etc., can be plated metal film, alloy film, composite film, transparent (translucent), non-conductive, electromagnetic shielding film.

Our small automatic paint spray machine with advantages of safe easy to ues good mobility fully automated low-noise automation productionprocess durable low consumption Machine size: W950*L2200*H1000(mm) W950*L2500*H1000(mm) W950*L3000*H1000(mm) W950*L4000*H1000(mm) W950*L4500*H1000(mm) W950*L5000*H1000(mm) Process: loading----dust free----auto paint spraying--unloading Production capabilities: 800-3500 pcshour Max product size:300*300*250(mm) diagonal max: 420mm Spray guns quantities:6-8 pcs Advantage: front and back turnning, 360 degree adjustable, quality products, movable, structure designedno dust storeand easy to clean, chainlink speed:3-12mmin Suitable filed : mobile casemousewine packagecapcamarawater bottleheating bottleradioearphonehelmetcrafts(plastic, metal) partsetc. main includes: main structure, front turnning system, spray gun control system water curtain booth match :2.4m above. We offer small automaticpaint spray line, automatic spray painting line , UVlines, our company is a successful manufacturer and supplier, we devoted ourselves tocoating treatment fieldmany years, we will provide excellent service and reasonable price for you, 80% of this type small automatic spray painting line is from our company in China marking. we are expand this type of machine to abroad and hope it help more company save labour, save costduring production.

Applied industry:Widely used in automotive, audio and varinous small appliances, computers, clocks and watches, toys cell phones reflective Cup, cosmetics toys tableware sanitary shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc. Electroplating effects:general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, wiredrawing, raindrop ect. Coating color:gold, silver, red, blue, green, purple, rainbow color ect. Mode HYJ-1214 HYJ-1416 HYJ-1618 HYJ-1820 Dimension (D*H) 1200*1400mm 1400*1400mm 1600*1800mm 1800*2000mm Film type Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc Power source Thermal evaporation power, ion bombard power, RF power Vacuum chamber structure Vertical doublesingle door, horizontal single door, pump system postposition Ultimate vacuum 8.0*10-4Pa Vacuum system Diffusion pump +Roots pump +Mechanical pump +Holding pump Pump time Pump from atmosphere to 5.0*10-2,

Application:1. hardware industry (sanitary ware, door handles, handle, door locks etc.)2. decoration industry (stair handrail)3. household appliances (logo lable, signs)4. stainless steel products (exhibition shelf, frame)Color: gold, rose gold, black gold, silver, champagne gold, sapphire blue, black, etc.Coating: TiN, CrN, ZrN, TiCN, TiCrN, TiNC, TiALN and DLCRemark: Specially tailored according to customers` products and process requirements.Vacuum Plastic Chrome Coating Machine Working Principle:The Cathode combine with the Anode to form the arc discharge in vacuum environment, then release the ion from the Cathode. Due to the concentration of the current, It will produce the heat which will make the material plasma. The plasma react with the gas under the action of the sputter bombardment, to be coated at the surface of the products. Multi-Arc Ion Coating Equipment Model(Diameter less than 2m) Model HYJ-1418 HYJ-1620 HYJ-1820 HYJ-2021 HYJ-2023 HYJ-2040 Chamber D1400H1800mm D1600H2000mm D1800H2000mm D2000H2100mm D2000H2300mm D2000H4000mm Structure Vertical door, hanging or horizontal cart structure, pumping system and water cooling system Vacuum System Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pumpor Molecule Pump Measurement 1 set pirani, 1 set cold cathode, 1 set diaphragm gauge Power DC power, MF power, pulse power(bias power, arc power) Ultimate Pressure 1.0 -6.010-4Pa, Non-loading cool

Product Introduction:Model: TG-2040Size:2000H4000mmPower: 200kwOccupied Area: 35-55mArc Source: 22-32setsCoating Film: Decorative CoatingAdvantage:High ionization rate, high deposition rate, stability and low temperature to magnetronsputtering, fine particles, simple operation, high yield etc.Application: 1. hardware industry (sanitary ware, door handles, handle, door locks etc.)2. decoration industry (stair handrail)3. household appliances (logo lable, signs)4. stainless steel products (exhibition shelf, frame)Color: gold, rose gold, black gold, silver, champagne gold, sapphire blue, black, etc.Coating: TiN, CrN, ZrN, TiCN, TiCrN, TiNC, TiALN and DLCRemark: Specially tailored according to customers` products and process requirements.Vacuum Plastic Chrome Coating Machine Working Principle: The Cathode combine with the Anode to form the arc discharge in vacuum environment, then release the ion from the Cathode. Due to the concentration of the current, It will produce the heat which will make the material plasma. The plasma react with the gas under the action of the sputter bombardment, to be coated at the surface of the products. Multi-Arc Ion Coating Equipment Model(Diameter less than 2m) Model HYJ-1418 HYJ-1620 HYJ-1820 HYJ-2021 HYJ-2023 HYJ-2040 Chamber D1400H1800mm D1600H2000mm D1800H2000mm D2000H2100mm D2000H2300mm D2000H4000mm Structure Vertical door, hanging or horizontal cart structure, pumping system

We offermini automatic spraying system , automatic spray painting system , UVlines, our company is a successful manufacturer and supplier, we devoted ourselves tocoating treatment system fieldmany years, we will provide excellent service and reasonable price for you, 80% of this type small automatic spray painting line is from our company in China marking. we are expand this type of machine to abroad and hope it help more company save labour, save costduring production. Our small automatic paint spray machine with advantages of safe easy to ues good mobility fully automated low-noise automation productionprocess durable low consumption Machine size: W950*L2200*H1000(mm) W950*L2500*H1000(mm) W950*L3000*H1000(mm) W950*L4000*H1000(mm) W950*L4500*H1000(mm) W950*L5000*H1000(mm) Process: loading----dust free----auto paint spraying--unloading Production capabilities: 800-3500 pcshour Max product size:300*300*250(mm) diagonal max: 420mm Spray guns quantities:6-8 pcs Advantage: front and back turnning, 360 degree adjustable, quality products, movable, structure designedno dust storeand easy to clean, chainlink speed:3-12mmin Suitable filed : mobile casemousewine packagecapcamarawater bottleheating bottleradioearphonehelmetcrafts(plastic, metal) partsetc. main includes: main structure, front turnning system, spray gun control system water curtain booth match :2.4m

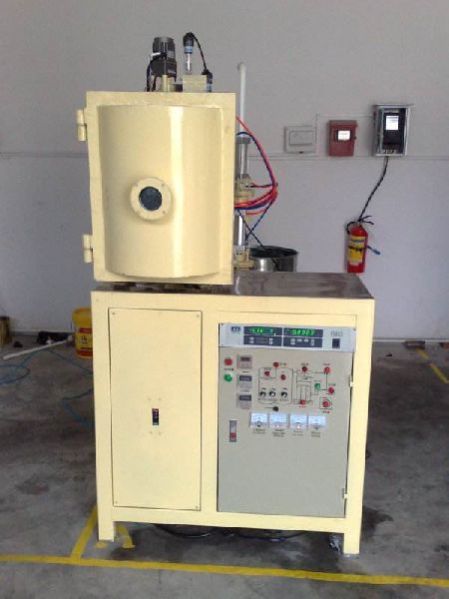

Small vacuum coatingmachine main application: Coating technology research and development and the workpiece model trial and so on. Widely used in enterprise laboratories, universities and research institutes for evaporation coating, magnetron sputtering coating, arc coating or CVD deposition and other aspects of the coating process research and development. Suitable for plating metal film, semiconductor film, dielectric film. Users in the use of the company's products in the process of the problems or information, please timely feedback to the Company, so that the company in a timely manner to deal with, improve and improve.In the warranty period, the product is due to quality problems caused by damage or abnormal work, the company responsible for free repair or exchange, and provide the maintenance and repair knowledge. The Company will provide tracking service for the product if it is improperly used or if it is damaged or does not work properly during the warranty period.The Company received the order notice, in strict accordance with the relevant provisions of the contract to organize production, delivery, to ensure that the product intact, according to the required time, place to.The company's products are produced to meet the stringent business standards and national standards. The use of the company's small size vacuum coating machine can provide free technical workers, operator training and the most advanced production technology.

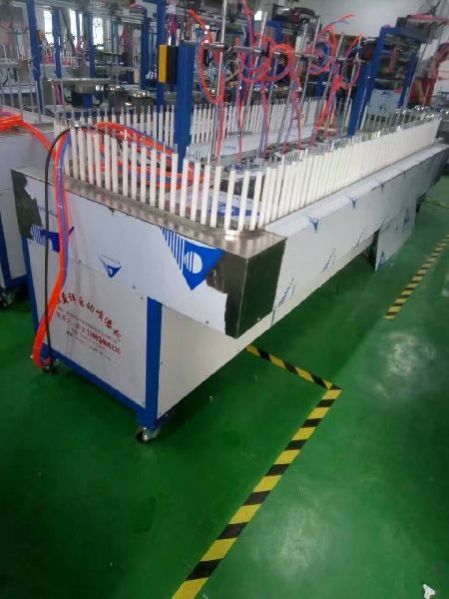

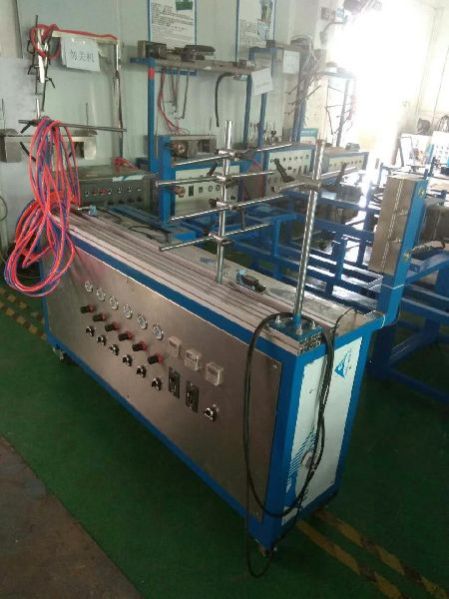

This is our hot sell mini automatic painting machine for pipes and pipe products. Size: L1.7 W1.3 72cm our mini automatic spray painting machine invest low, high effeciency coating production, save labour and high quality coating finish control.

The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.Thermal Resistance Evaporation Coating Technology: Thermal vacuum deposition is one method for fabricating thin films under a high vacuum environment also addressed as "thermal evaporation method". With this method, an electron beam (e-beam) or resistive heating is usually used to evaporate the desired material inside the vacuum coating chamber, which then adheres to a substrate placed above it. This method can classified as a form of PVD, which stands for physical vapor deposition, and is suitable for fabricating high-quality thin films with thicknesses on the order of nanometers on glass, plastic, films, metals, and almost any other kind of material.Applied industry:Widely used in automotive, audio and varinous small appliances, computers, clocks and watches, toys cell phones reflective Cup, cosmetics toys tableware sanitary shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc. Electroplating effects:general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, wiredrawing, raindrop ect. Coating color:gold, silver, red, blue, green, purple, rainbow color ect.

HENGYIJIA Magnetron Sputtering Vacuum Coating MachineMain Feature1. It equipments cryogenic ion secondary source, some substrate without heating the material, It can directly do the cold plating film at room temperature, save energy, increase productivity.2. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool Coater coating applications require heating device, other applications do not need the device.3. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass production.4. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.5. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode and the magnetic field structure, . It will happen atomic diffusion between the coating and the material. It also has the advantages that lon Beam Assisted Deposition. 6. Vacuum pumping system, electric control system and complete vacuum coating system can be customized according to user requirements. Product name HENGYIJIA Magnetron Sputtering Vacuum Coating Machine Vacuum Chamber Size

UV production line (1) product description: UV automatic spray painting production line, mainly composed of water tank, UV curing, baked road, rail, chain, rotation, transmission, spray gun, etc, professional for the heel of batch production, such as product design line of the pipeline operation is simple, easy to use, stable and reliable performance. And to paint processing very environmental protection, conveying speed can be adjusted. Automatic spraying good products into the oven drying box, greatly improve the production efficiency, reduce labor. Is the most ideal vacuum coating need automatic spray product choice. . (2) product details: mainly by water tank, baked road, rail, chain, rotation, transmission, spray gun, etc. Bake, the overall frame structure, siding with formed, but the base channel steel welded rectangular frame structure, such as using high temperature resistant rock wool insulation layer thickness, heat preservation effect is good, using special chain chain, chain track with three thick steel plate flanging forming, arbitrary rotation fixture, the product through the electrostatic dust removal -- -- -- -- -- -- -- -- -- -- primer to dry spray primer - primer for cooling a vacuum coating under -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- surface spray UV paint paint drying - finish cooling -- -- -- -- --, the whole line of fully automatic operation, manual operation is few and large output. Is to replace artificial difficult, difficult

automobile body pretreatment line:Our company is dedicated to offering a variety of quality automotive pretreatment products. These technologies are applied onto the automotive body through a series of immersion or spray baths.This finish adds value through improving appearance, paint adhesion, and the overall corrosion protection of the vehicle.Automotive Pretreatment exhibits a wide array of benefits including:Superior Corrosion ProtectionImproved Metal CleanlinessExcellent Paint AdhesionIncreased Uniform Metal AppearanceZinc Phosphate:Zinc phosphate pretreatment is a well-established method of providing metal cleanliness and corrosion protection to the surface of an automotive car body.This coating technique is used for a variety of applications from automotive bodies to small parts such as engine mounts. During application, automotive bodies are sent through a series of spray and immersion tanks. A typical zinc phosphate process begins with multiple cleaning stages, followed by a titanated activating rinse, zinc phosphate and a sealant rinse. The process is completed by multiple deionized water rinses.This sequence not only prepares the car body for a subsequent paint system but also retards any further metal oxidation and provides a uniform metal appearance. The phosphated car body is then sent to the electrocoat dip tank to begin the painting process.Cleaners:Pretreatment offers an extensive line of cleaning materials to prepare the automotive body for phosphating

Gold imitation high quality pvd paint jewelry equipment multi-arc ion vacuum coating machine1.Description:Vacuum coating equipmentApplicable to a variety of coatings. Vacuum coating machine is a high-quality stainless steel products on the decorative film of the ideal equipment. Any color of stainless steel substrates can be gold-plated, silver, black, rainbow, blue, gray and multicolored bright colors, making the product look more elegant and attractive. Save time and capacityThe following are the same as the "It is widely used in toys, jewelry, handicrafts, mobile phone shell, electronics and packaging fields, the substrate can be stainless steel, plastic, ceramics, glass and so on.The following are the same as the "Quality: We design and manufacture each machine on behalf of who we are. This fact has driven usMake sure that each system is created with the highest quality components and is designed.The following are the same as the " Solution: Let us know what your film challenge is and we will use our experience and resources to help you find the solution. dimensionof vacuumchamber 7001000mm 8001000mm 9001000mm 10001000mm pumpingspeed 1105Pa310-3Pa20min limitvacuum 110-3Pa systemforma completeset KT-6002-2X-302X-704(ZLD-3002) KT-6002-2X-302X-704 (ZLD-3002) Workpiecesystem Rotationoftheplanetforms

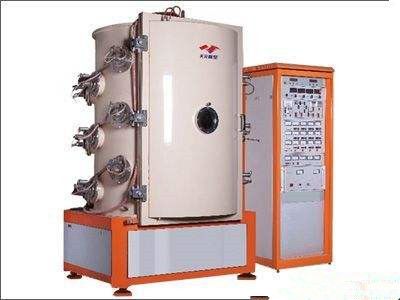

Vacuum Plastic Chrome Coating Machine Working Principle:The Cathode combine with the Anode to form the arc discharge in vacuum environment, then release the ion from the Cathode. Due to the concentration of the current, It will produce the heat which will make the material plasma. The plasma react with the gas under the action of the sputter bombardment, to be coated at the surface of the products. Multi-Arc Ion Coating Equipment Model(Diameter less than 2m) Model HYJ-1418 HYJ-1620 HYJ-1820 HYJ-2021 HYJ-2023 HYJ-2040 Chamber D1400H1800mm D1600H2000mm D1800H2000mm D2000H2100mm D2000H2300mm D2000H4000mm Structure Vertical door, hanging or horizontal cart structure, pumping system and water cooling system Vacuum System Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pumpor Molecule Pump Measurement 1 set pirani, 1 set cold cathode, 1 set diaphragm gauge Power DC power, MF power, pulse power(bias power, arc power) Ultimate Pressure 1.0 -6.010-4Pa, Non-loading cooling Arc Source 16-24 set 16-24 set 18-26 set 18-26 set 22-28 set 22-32 set 200A-300A 200A-300A 200A-300A 200A-300A 200A-300A 200A-300A Bias Power Supply 40KW1 set 40KW1 set 40KW1 set 50KW1 set 50KW1 set 60KW1 set Magnetron Power Supply 1-2 set 1-2 set 2-3 set 2-3 set ---- ---- Temp. Normal temperature - 450C can be controlled and adjusted(PID temperature control) Gas Ar, N2, O2, C2H2, etc. Cooling Water cooling circulation, equip with industrial cooling tower

With the social progress, municipal spray can no longer meet the needs of modern industry. So it is necessary to use automatic spraying instead of manual spraying.The machine can be sprayed around, the gun can automatically adjust the vertical angle.Automatic spraying production line can be automatically sprayed, automatic curing and drying. Workshop is made of fireproof materials. With thermal insulation.Automatic spraying production line made of stainless steel, long service life. Original electronic components can choose to import the original
