Air Conditioning System

Our Complete range of products are Honeycomb Dehumidifier and Three in One Dehumidifier.

Honeycomb Dehumidifier

Honeycomb Dehumidifier

Sited in Shenzhen(China), we guarantee safe side deliveries of consignments in a time limited period. With the aid of secure payment procedure and a team of adroit professionals, we have marked our prominence in the market. Our payment procedures ensure faster trade.



Machine Features :

  • Adopting new patented rotor and environmental protection and energy saving design to improve the dehumidifying performance more.

  • Adopting the molecular sieve as hygroscopic rotor, better than the traditional honeycomb in many aspects.

  • Rotor replacement, lower cost, durable, longer life.

  • The unique design of the regional spacing and insulation, energy-efficient about 30% than others.

  • Dry air up low dew-point below -40oC

  • Adopt P.I.D. temperature controller to control regenerative temperature accurately.

  • Return air filter is mounted inside to ensure no contamination to the rotor.

  • Centralized automatic control can be realized by optionally selected PLC touch screen controller.

  • Optional select dew-point testing device.

  • Optional heat-resistant air pipe, cyclone dust separator, oil filter are available.



What is Molecular sieve?

Molecular sieve is an alkali metal silicate, which has a crystal structure and characteristics of the surface of the solid skeleton, and the internal cavity can adsorbed molecules. Channels between the cavities are interconnected by a channel through the pore size distribution are very uniform. Molecular can adsorb the exclusion of certain substances in larger molecules. So they have been aptly called “Molecular Sieves”?

Technical Specification

Model - GD 60 90 120 150 200 300 400 500 700 1000 1500 2000 3000 4000
Dry Air Capacity (m3/hr) 60 90 120 150 200 300 400 500 700 1000 1500 2000 3000 4000
Regen. Heater (kW) 2.4 2.4 2.4 2.4 3.6 3.6 7.2 7.2 7.2 12 15 24 30 40
Regen. Blower (kW) 0.2 0.2 0.2 0.2 0.4 0.4 0.75 0.75 1.1 1.5 1.5 2.2 3 4.4
Process. Blower (kw) 0.4 0.75 1.1 1.5 2.2 3.8 5.5 7.5 7.5 11 15 11*2 15*2 11*4
Pipe Dia.(Inch) 2" 2" 2" 2" 21/2" 3" 3" 4" 4" 5" 6" 8" 8" 12"
Dimensions
H (mm) 1200 1200 1350 1350 1550 1700 1750 1750 1750 2000 2280 2000 2280 2300
W (mm) 520 520 620 620 720 720 820 820 870 1285 1380 1400 2035 1350

D (mm) 750 750 860 860 960 960 1120 1120 1120 1600 1820 2150 2160 1480

Weight (kg) 132 141 186 200 245 295 465 515 750 800 1000 1300 1800 2500

System Flow Chart


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Three In One Dehumidifier

Three In One Dehumidifier

As our payment methods are practical and convenient, we are highly recommended by the clients. We provide option to pay in cash as well as through bank transfer. Our prime interest is to deliver a flawless range of products to the buyers. And in this concern, we make all arrangements in order to store the entire lot under safe environment.



Machine Features:

  • Combine the function of dehumidifying, drying and two-stage conveying into single unit.

  • Dehumidifying part is equipped with honeycomb rotor to obtain stable low dew-point drying air.

  • Double stainless steel drying hopper adopts down blowpipe design, uniform drying of raw materials, avoid heat lost .

  • Feeding system is equipped with shut-off valve to ensure no surplus raw material in hopper tubes.

  • Closed loop device avoid contamination and moisture regain.

  • Centralized automatic control can be realized by optionally selected PLC touch screen controller.

  • Optional select dew-point testing device.

Specification

GCD- 25/60 50/60 75/90 100/90 100/120 150/120 150/150 200/150 200/200 300/200 400/300 500/400 600/500
(kg) 25 50 50 75 100 100 150 200 200 300 400 500 600
(kW) 2.4 2.4 3.6 3.6 6 6 9 12 12 15 15 18 18
(kW) 0.4 0.4 0.75 0.75 1.1 1.1 1.5 1.5 2.2 2.2 4 5.5 7.5
(m3/hr) 60 60 90 90 120 120 150 150 200 200 300 400 500
(kW) 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 3.6 3.6 3.6 7.2 7.2

(kW) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.4 0.4 0.4 0.75 0.75

(kW) 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.5 1.5 1.5 1.5 2.2 2.2

(Inch) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2

(L) 6 6 6 6 6 6 6 12 12 12 12 24 24

(L) 3 3 3 6 6 6 6 12 12 12 12 24 24

H (mm) 1530 1550 1800 1850 1870 1870 1870 1900 2000 2150 2300 2500 2640

W (mm) 1050 1050 1050 1180 1180 1290 1290 1460 1460 1480 1550 1760 1760

D (mm) 850 850 870 960 960 960 960 1100 1100 1100 1180 1200 1200

(kg) 320 344 375 385 442 449 475 530 560 615 635 760 850

Drying Capacity

      Moisture Moisture   Drying Capacity (kg/hr)
          GCD-
  Drying   Content Content   50/90 100/120 150/150 200/200 300/300 400/400 500/500
Material temp. Time
    (hr) Before Drying After Drying 25/60
            75/90 150/120 200/150 300/200 400/300 500/400 600/500
  (â��)   (%) (%) 50/60
ABS 80-90 42433 0.3 0.02 13 28 37 73 110 145 210 275
ABS 80-90 42403 0.3 0.02 19 41 55 100 133 200 270 300
ABS/PC 100 3 0.3 0.02 15 33 43 87 118 175 235 290
ASA 80-90 3 0.4 0.02 13 28 38 73 100 147 200 250
CA 75 42403 1 0.02 25 40 60 75 100 150 200 250
CAB 75 42403 0.8 0.02 15 22 30 60 90 150 180 235
CP 75 42403 1 0.02 18 27 35 71 106 180 210 285
EVA 80 42371 0.3 0.02 12 25 33 67 100 133 200 250
IONOMER 90 42433 0.1 0.04 11 17 22 44 66 111 133 177
LCP 150 42433 0.04 0.02 13 20 27 55 80 135 160 210
POM 100 2 0.2 0.02 27 40 53 105 160 265 320 425
PMMA 80 42433 0.5 0.02 15 33 43 75 100 150 200 250
PA6/6.6/6.10 70-80 42466 1 0.05 10 14 19 38 58 96 115 153
PA11 70-80 42465 1 0.05 12 17 23 46 69 115 138 184
PA12 70-80 42465 1 0.05 12 17 23 46 69 115 138 184
PC 120 42403 0.3 0.01 21 31 41 83 124 206 250 330
PU 90 42403 0.3 0.02 19 29 38 77 115 190 230 307
PBT 130 42433 0.2 0.02 15 23 31 62 93 155 186 248
PE 90 1 0.01 ï¼ï¿½0.01 39 80 110 150 200 300 400 500
PEI 150 42433 0.25 0.02 13 20 27 53 80 133 160 212
PET 160-180 6 0.2 0.05   20 27 53 75 107 160 200
PET 160-180 6 0.2 0.05   20 27 53 75 107 160 200
PET 160-180 6 0.2 0.05   20 27 53 75 107 160 200
PET 140 42433 0.2 0.05 19 40 53 83 111 167 222 278
PETG 67 max. 42465 0.5 0.02 14 30 40 60 80 120 160 200
PEN 170 5 0.1 0.05 15 23 30 60 90 150 180 240
PES 150 4 0.8 0.02 15 23 30 60 90 150 180 240
PPO 110 42403 0.1 0.04 22 33 44 88 133 220 265 355
PPS 150 42403 0.1 0.02 13 20 27 53 80 133 160 212
PI 120 42403 0.4 0.02 27 40 53 105 160 265 320 425
PP 80-90 1 0.1 0.02 35 53 80 100 133 200 267 333
PS(GP) 80 1 0.1 0.02 44 66 88 180 265 442 531 708
PSU 120 42433 0.3 0.02 14 22 29 60 85 145 173 230
PVC 70 42371 0.1 0.02 22 33 44 90 135 220 265 355
SAN(AS) 80 42403 0.1 0.05 22 33 44 90 135 220 265 355
TPE 105 3 0.1 0.02 20 30 40 85 125 205 250 330
TPU 80-110 42403 0.1 0.02 25 40 60 75 100 150 200 250

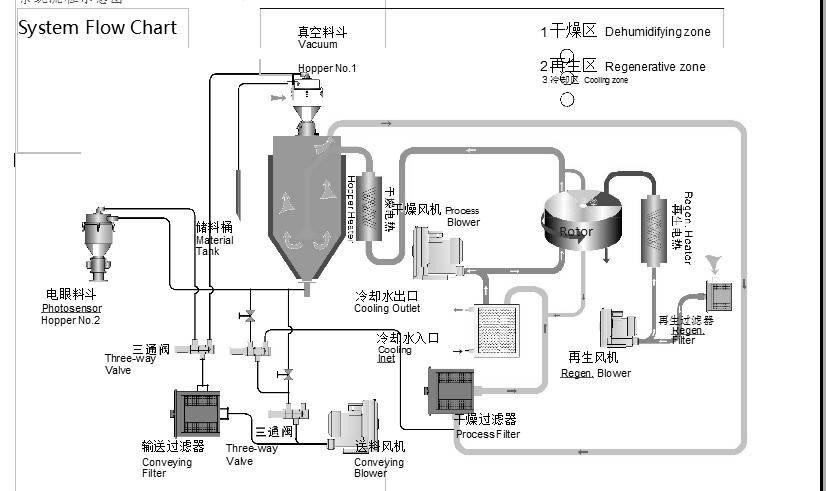

System Flow Chart


Download Detail File : Click Here
