    Honeycomb Dehumidifier

    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    Sited in Shenzhen(China), we guarantee safe side deliveries of consignments in a time limited period. With the aid of secure payment procedure and a team of adroit professionals, we have marked our....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 15 Years
    • building Nature of Business Supplier
    • Year of Establishment 2004

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

    Sited in Shenzhen(China), we guarantee safe side deliveries of consignments in a time limited period. With the aid of secure payment procedure and a team of adroit professionals, we have marked our prominence in the market. Our payment procedures ensure faster trade.



    Machine Features :

    • Adopting new patented rotor and environmental protection and energy saving design to improve the dehumidifying performance more.

    • Adopting the molecular sieve as hygroscopic rotor, better than the traditional honeycomb in many aspects.

    • Rotor replacement, lower cost, durable, longer life.

    • The unique design of the regional spacing and insulation, energy-efficient about 30% than others.

    • Dry air up low dew-point below -40oC

    • Adopt P.I.D. temperature controller to control regenerative temperature accurately.

    • Return air filter is mounted inside to ensure no contamination to the rotor.

    • Centralized automatic control can be realized by optionally selected PLC touch screen controller.

    • Optional select dew-point testing device.

    • Optional heat-resistant air pipe, cyclone dust separator, oil filter are available.



    What is Molecular sieve?

    Molecular sieve is an alkali metal silicate, which has a crystal structure and characteristics of the surface of the solid skeleton, and the internal cavity can adsorbed molecules. Channels between the cavities are interconnected by a channel through the pore size distribution are very uniform. Molecular can adsorb the exclusion of certain substances in larger molecules. So they have been aptly called “Molecular Sieves”?


    Technical Specification

    Model - GD609012015020030040050070010001500200030004000
    Dry Air Capacity (m3/hr)609012015020030040050070010001500200030004000
    Regen. Heater (kW)2.42.42.42.43.63.67.27.27.21215243040
    Regen. Blower (kW)0.20.20.20.20.40.40.750.751.11.51.52.234.4
    Process. Blower (kw)0.40.751.11.52.23.85.57.57.5111511*215*211*4
    Pipe Dia.(Inch)2"2"2"2"21/2"3"3"4"4"5"6"8"8"12"
    Dimensions
    H (mm)12001200135013501550170017501750175020002280200022802300
    W (mm)52052062062072072082082087012851380140020351350

    D (mm)75075086086096096011201120112016001820215021601480

    Weight (kg)1321411862002452954655157508001000130018002500

    System Flow Chart


    Download Detail File : Click Here

    Product Images

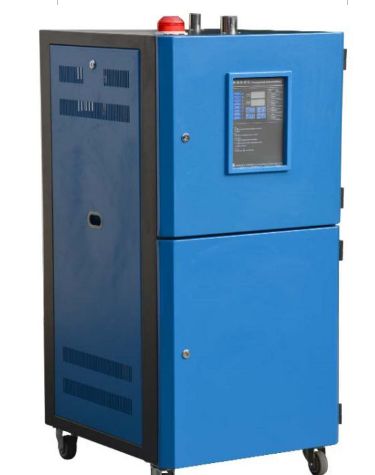

    • Honeycomb Dehumidifier
    • Honeycomb Dehumidifier
    • Honeycomb Dehumidifier
