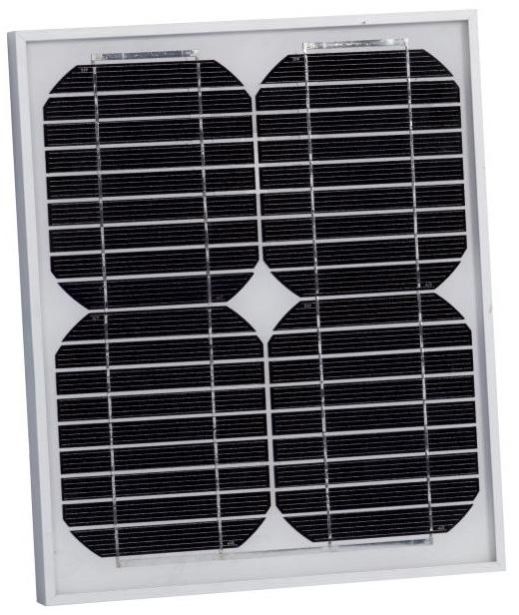

We are offering mono solar panel 10w. item no zjm-10w cell type mono-crystalline silicon solar cells maximum power (wp) 10wp maximum power voltage (v) 17.5v. maximum power current (a) 0.57a open circuit voltage (v) 21.6v short circuit current (a) 0.61a number of cells (pcs) 36(4*19) pcs size of module (mm) 185x435x18mm( 156*156mm cell) maximum system voltage (v) 715v temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 1kg junction box type waterproof( tuv ) length of cables (mm) na cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.

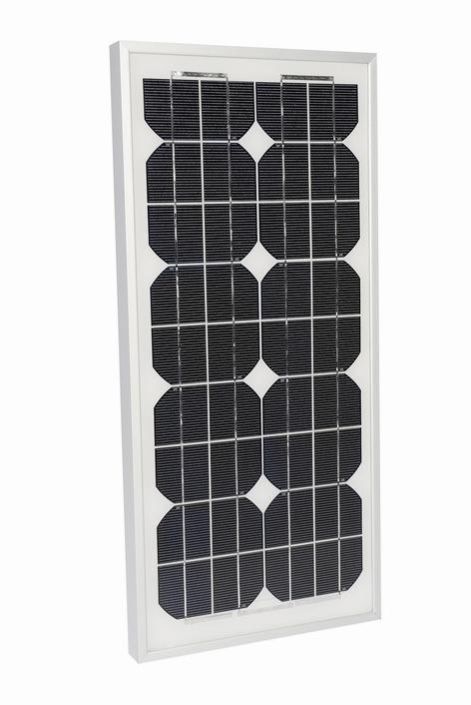

We are offering mono solar panel 20w. Item no zjm-20w cell type mono-crystalline silicon solar cells maximum power (wp) 20wp maximum power voltage (v) 17.5v. maximum power current (a) 1.14a open circuit voltage (v) 21.6v short circuit current (a) 1.23a number of cells (pcs) 36(4*19) pcs size of module (mm) 345x485x18mm( 156*156mm cell) maximum system voltage (v) 715v temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 2kg junction box type waterproof( tuv ) length of cables (mm) na cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.

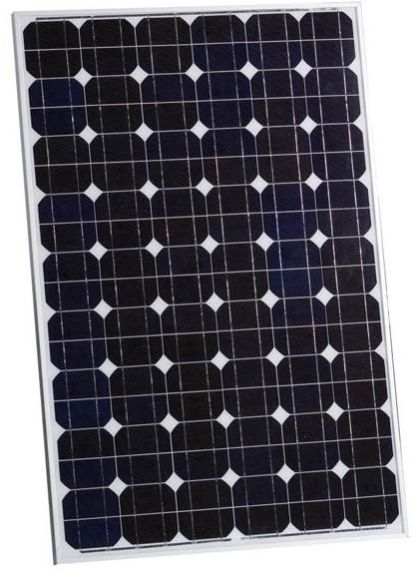

We are offering mono solar panel 240w. item no zjm-240w cell type mono-crystalline silicon solar cells maximum power (wp) 240wp maximum power voltage (v) 30.6v. maximum power current (a) 7.87a open circuit voltage (v) 37.4v short circuit current (a) 8.46a number of cells (pcs) 60(6*10) pcs size of module (mm) 1640x990x45mm( 156*156mm cell) maximum system voltage (v) 1000 temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 20kg junction box type waterproof( tuv ) length of cables (mm) 900mm cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn

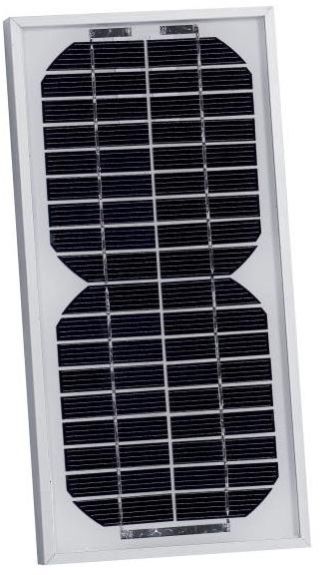

We are offering mono solar panel 5w. Item no zjm-5w cell type mono-crystalline silicon solar cells maximum power (wp) 5wp maximum power voltage (v) 17.5v. maximum power current (a) 0.28a open circuit voltage (v) 21.6v short circuit current (a) 0.31a number of cells (pcs) 36(4*9) pcs size of module (mm) 250x185x15mm( 156*156mm cell) maximum system voltage (v) 715v temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 0.7kg junction box type waterproof ( tuv ) length of cables (mm) na cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.

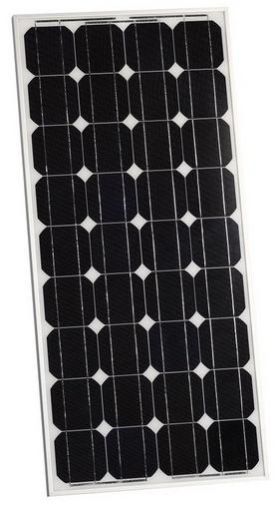

We are offering mono solar panel 110w. Item no zjm-110w cell type momo-crystalline silicon solar cells maximum power (wp) 110wp maximum power voltage (v) 17.5v. maximum power current (a) 5.71a open circuit voltage (v) 21.6v short circuit current (a) 6.17a number of cells (pcs) 36(4*9) pcs size of module (mm) 670x1065x25mm( 156*156mm cell) maximum system voltage (v) 1000 temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 8kg junction box type waterproof( tuv ) length of cables (mm) na cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.

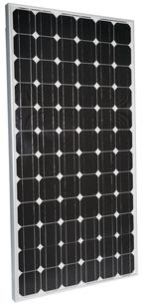

We are offering mono solar panel 300w. item no zjm-300w cell type mono-crystalline silicon solar cells maximum power (wp) 300wp maximum power voltage (v) 37.20v. maximum power current (a) 8.28a open circuit voltage (v) 46.10v short circuit current (a) 8.95a number of cells (pcs) 72(6*12) pcs size of module (mm) 1950x990x45mm( 156*156mm cell) maximum system voltage (v) 1000 temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 22.50kg junction box type waterproof( tuv ) length of cables (mm) 900mm cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.
