Sunflower Solar Tech Co.,Ltd

Guangdong, Shenzhen, China

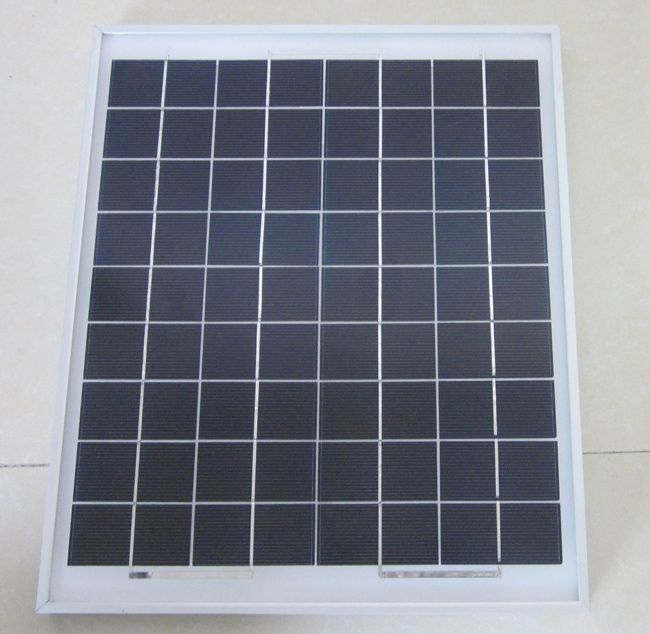

we are offering poly-crystalline silicon solar cells.maximum power (wp) 10wp maximum power voltage (v) 17.5v. maximum power current (a) 0.57a open circuit voltage (v) 21.6v short circuit current (a) 0.61a number of cells (pcs) 36(4*19) pcs size of module (mm) 345x265x18mm( 156*156mm cell) maximum system voltage (v) 715v temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 1.2kg junction box type waterproof( tuv ) length of cables (mm) na cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.

We are offering poly solar panel 5w. Maximum power (wp) 5wp maximum power voltage (v) 17.5v. maximum power current (a) 0.28a open circuit voltage (v) 21.6v short circuit current (a) 0.31a number of cells (pcs) 36(4*9) pcs size of module (mm) 285x185x15mm( 156*156mm cell) maximum system voltage (v) 715v temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 0.7kg junction box type waterproof ( tuv ) length of cables (mm) na cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.

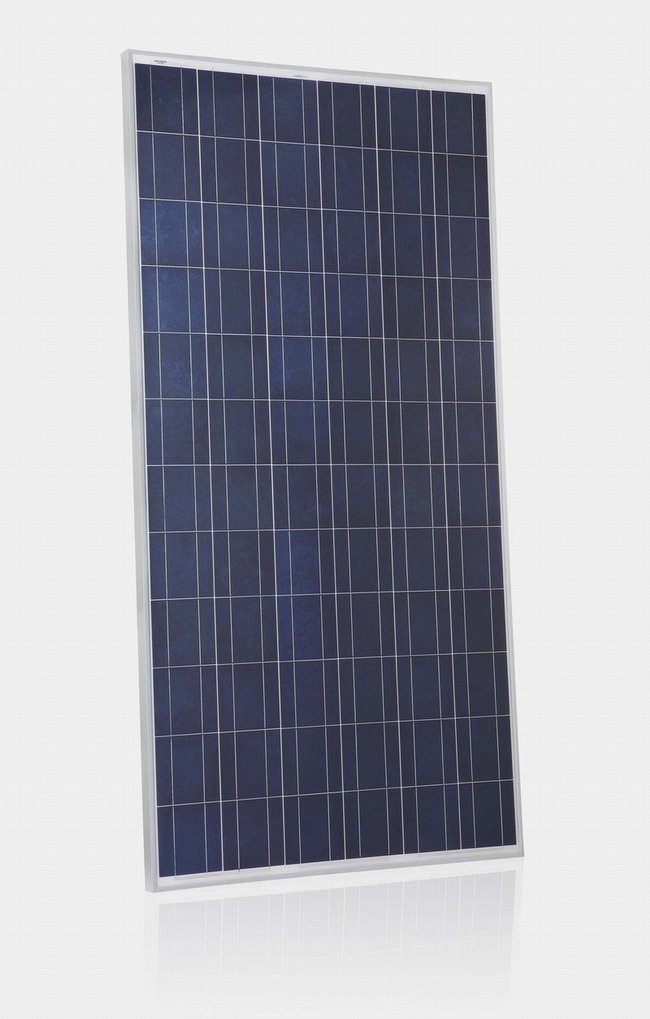

We are offering poly solar panel 250w. Item no zjp-250w cell type poly-crystalline silicon solar cells maximum power (wp) 250wp maximum power voltage (v) 30.6v. maximum power current (a) 8.17a open circuit voltage (v) 37.4v short circuit current (a) 8.95a number of cells (pcs) 72(6*12) pcs size of module (mm) 1640x990x45mm( 156*156mm cell) maximum system voltage (v) 1000 temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 20kg junction box type waterproof( tuv ) length of cables (mm) 900mm cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.

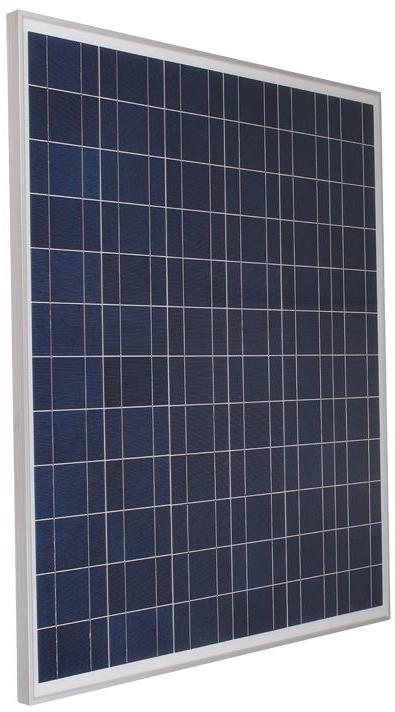

We are offering poly solar panel 130w. Item no zjp-130w cell type poly-crystalline silicon solar cells maximum power (wp) 130wp maximum power voltage (v) 17.5v. maximum power current (a) 8.42a open circuit voltage (v) 21.6v short circuit current (a) 8.02a number of cells (pcs) 36(4*9) pcs size of module (mm) 670x1350x30mm( 156*156mm cell) maximum system voltage (v) 1000 temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 5kg junction box type waterproof( tuv ) length of cables (mm) na cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.

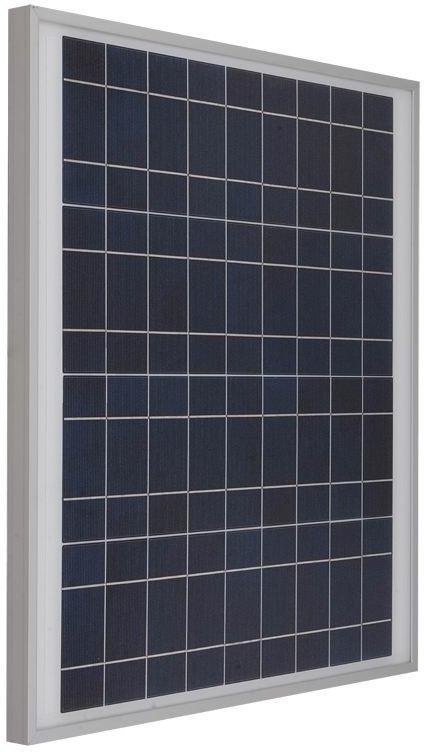

We are offering poly solar panel 20w. Item no zjp-20w cell type poly-crystalline silicon solar cells maximum power (wp) 20wp maximum power voltage (v) 17.5v. maximum power current (a) 1.14a open circuit voltage (v) 21.6v short circuit current (a) 1.23a number of cells (pcs) 36(4*19) pcs size of module (mm) 345x485x18mm( 156*156mm cell) maximum system voltage (v) 715v temperature coefficients of isc (%) 0.065+-0.015%'c temperature coefficients of voc (%) -(2.23+-0.1)mv 'c temperature coefficients of pm (%) -(0.5+-0.05)%'c temperature coefficients of im (%) +0.1'c temperature coefficients of vm (%) -0.38'c temperature range -40'c+85'c tolerance wattage (e.g. +-3%) +-3% glass type tempered glass surface maximum load capacity 60ms(200kgsq.m) allowable hail load steel ball fall down from 1m height weight per piece (kg) 2kg junction box type waterproof( tuv ) length of cables (mm) na cell efficiency (%) 17.50% module efficiency (%) 15.80% output tolerance (%) +-3% frame (material, corners, etc.) aluminum standard test conditions am1.5 100mwcm2 25'c warranty 10 years product warranty and 10years 90% of power ff (%) 76% packing 2pcsctn.
