Suzhou Forst Filter .com

Zhangjiagang, China

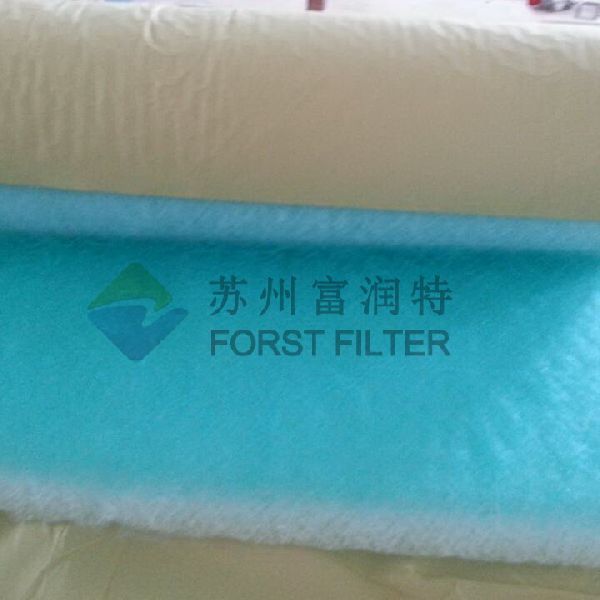

FORST Roll Fiberglass Filter Media G3 Air Filter for Spray BoothCharacteristic:1.Fiberglass filter media2.Large ventilation quantity3.Small resistance4.High dust holding capacity5.Long operating lifeSpeciality:1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-5060PA-100, especially suitable for using heat recovery system;3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;4. The low compression preformance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;5. Nonflammability, temperature resistance at 170C;6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;7. Outer frame may choose the paper frame, the falvanization iron frame, or aluminium alloy frame. Functions:1.Main application to the auto electrophoretic paint filter and the fire-resistant steel casting plant for the flue gas dust removal processing system;2.Used for the explosion grinding bag dust collector in the blast furnace and cement plant. Performance parameters:ModelSFFPA-5060SFFPA-100Average arrestance92%-96%97%-99%Initial pressure drop15Pa20PaFinal pressure drop250 Pa280 PaAir velocity0.7-1.5.ms0.7-1.75.msDust holding at final3200-3600gm23600-4900gm2Temperature resistance170C170CTemperature short peaks190C190CNormal thickness5060mm100mmNormal size0.8m*201.0m*20m2.0m*20m0.8m*201.0m*20m2.0m*20m
