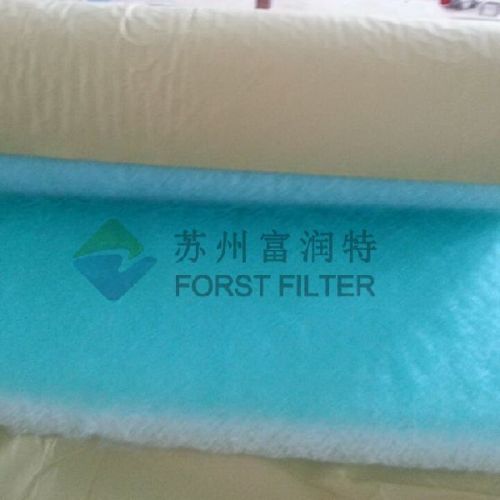

Fiberglass Paint Stop Air Filter Media, Condition : 170

FORST Roll Fiberglass Filter Media G3 Air Filter for Spray Booth
Characteristic:
1.Fiberglass filter media
2.Large ventilation quantity
3.Small resistance
4.High dust holding capacity
5.Long operating life
Speciality:
1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-5060PA-100, especially suitable for using heat recovery system;
3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;
4. The low compression preformance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;
5. Nonflammability, temperature resistance at 170�°C;
6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;
7. Outer frame may choose the paper frame, the falvanization iron frame, or aluminium alloy frame.
Functions:
1.Main application to the auto electrophoretic paint filter and the fire-resistant steel casting plant for the flue gas dust removal processing system;
2.Used for the explosion grinding bag dust collector in the blast furnace and cement plant.
Performance parameters:
Model
SFFPA-5060
SFFPA-100
Average arrestance
92%-96%
97%-99%
Initial pressure drop
15Pa
20Pa
Final pressure drop
250 Pa
280 Pa
Air velocity
0.7-1.5.ms
0.7-1.75.ms
Dust holding at final
3200-3600gm2
3600-4900gm2
Temperature resistance
170�°C
170�°C
Temperature short peaks
190�°C
190�°C
Normal thickness
5060mm
100mm
Normal size
0.8m*20
1.0m*20m
2.0m*20m
0.8m*20
1.0m*20m
2.0m*20m
