Suzhou Listrong Mechanical&electrical Co.,Ltd

China, suzhou, China

Machine type 17dct(17dc+350t) 入線線徑 inlet diameter(mm) φ3.0-φ3.5 出線線徑 outlet diameter (mm) φ0.8-φ2.8 最高線速 max. Speed(mpm) 1200 最大眼模數 max. Number of drawing dies 17 機械減面率 mechanical reduction ratio 18% 定速輪減面率 fixed-speed capstan reduction ratio 12.5% 伸線輪 drawing capstan 表面噴碳化鎢 tungsten coated 最大伸線輪直徑 max. Capstan diameter(mm) φ260 機體結構 frame 焊接 welded 主機功率 main machine power 160kw交流電機 160kw ac motor 收卷功率 take-up power 15kw 交流電機 15kw ac motor 修正系統 correction system 變位檢出自動控制卷取 automatically control 動力控制 dynamic control 變頻控制 double frequency converters control 傳動方式 transmission method 齒輪by gear 放線方式 pay-off method 越端式 over-head 排線方式 traversing method 減速電機 decelerate motor 張力調整方式 tension control 氣動擺臂式緩衝杆 pneumatic balance by swing arm 拉絲冷卻潤滑 lubrication system of drawing 半浸式+噴淋式 half-immersing type+ spray type 卷取軸尺寸 take-up bobbin size(mm) φ630max. 收線容量 take-up capacity(kg) 1200-1800 制動 brake 氣動刹車 pneumatic brake

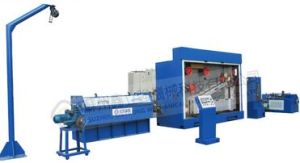

入線線徑 inlet diameter(mm) φ8 出線線徑 outlet diameter (mm) φ2.5-φ3.5 最高線速 max. Speed(mpm) 800 最大眼模數 max. Number of drawing dies 9 機械減面率 mechanical reduction ratio 20% 定速輪減面率 fixed-speed capstan reduction ratio 17% 伸線輪 drawing capstan 表面噴碳化鎢 tungsten coating. 最大伸線輪直徑 max. Capstan diameter(mm) φ450 定速輪直徑 fixed-speed capstan diameter(mm) φ450 機體結構 frame 整體焊接 welded 主機功率 main machine power 160kw電機 160kw ac motor 收卷功率 take-up power 15kw 三相交流電機 15kw 3phase ac motor 修正系統 correction system 變位檢出自動控制卷取 automatically control 動力控制 dynamic control 調速器+變頻控制 dc speed regulator + double frequency converters control 傳動方式 transmission method 齒輪by gear 放線方式 pay-off method 越端式 over-head 排線方式 traversing method 減速電機 decelerate motor 張力調整方式 tension control 氣動擺臂式緩衝杆 pneumatic balance by swing arm 拉絲冷卻潤滑 lubrication system of drawing 半浸式+噴淋式 half-immersing type+ spray type 卷取軸尺寸 take-up bobbin size(mm) φ800成圈落線機φ800 coiler basket 收線容量 take-up capacity(kg) 1200-1800 制動 brake 氣動刹車 pneumatic brake

Machine type:40H-A Number of wire:40 Production diameter (MM):Φ0.1-Φ0.32 Max. tinning speed (MPM):300 Pay-off method:Pay-off with hairbrush Annealing method:Tubular annealing Tinning method:Double-oven hot dip (horizontal plating) tinning die scraping Take-up method:1.2-1.5N·M Torque motor 1.2-1.5N·M Annealing length (M):4.5 Spool dimension (MM):PT5-PT25 Electrothermal power (KW):64.5 Dynamic power (KW):12 Total power (KW):76.5 Traversing control:Decelerate motor, independent traversing Machine dimension(MM):18800*2200*1600

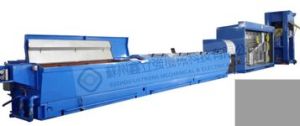

Machine type:13dt-cu max. Speed(mpm):1500 max. Number of drawing :13 inlet diameter(mm):φ8 outlet diameter (mm):φ1.20-φ3.5 die-change method:automatic rapid die-change system control system:all alarms and parameters can be controlled and displayed on the touch screen. Motor control:dc motor digital control transmission method:by precision ground helical gears mechanical reduction ratio:23.6% drawing capstan:multi-step type, steel rim assembled with tungsten coating. Max. Capstan :φ450 take-up bobbin :φ500-φ630 drawing motor(kw):350 leading motor(kw):55 take-up motor(kw):30 lubrication type for drawing:fully immersing lubrication type for bearings:by enforced oil pump subsequent equipment:continuous annealer drawing lubricant filter & cooling auto-spooler & down coiler pointing machine

Machine type 22dw 24dw 入線線徑 inlet diameter(mm) φ0.6-φ1.4 φ0.6-φ1.4 出線線徑 outlet diameter (mm) φ0.1-φ0.5 φ0.08-φ0.5 最高線速 max. Speed(mpm) 2200 2500 最大眼模數 max. Number of drawing dies 22 24 機械減面率 mechanical reduction ratio 15% 13% 定速輪減面率 fixed-speed capstan reduction ratio 8% 8% 伸線輪 drawing capstan 表面噴陶瓷 ceramic coated 最大伸线轮直径 max. Capstan dia.(mm) φ242 φ242 定速轮直径 fixed-speed capstan dia.(mm) φ207 φ207 机体结构 frame 一体铸造 cast in iron 主機功率 main machine power 15kw 15kw 收卷功率 take-up power 3.7kw 3.7kw 修正系统 correction system 变位检出自动控制卷取 automatically control 動力控制 dynamic control 變頻控制 double frequency converters control 傳動方式 transmission method 同步带+平皮带 timing belt+ flat belt 放線方式 pay-off method 越端式 over-head 排線方式 traversing method 平皮带传动+同步马达 flat belt + synchronous motor 張力調整方式 tension control 配重擺臂式緩衝杆 weight balance by swing arm 拉絲冷卻潤滑 lubrication system of drawing 噴淋式spray type 卷取軸尺寸 take-up bobbin size(mm) φ300 φ300 收線容量 take-up capacity(kg) 50-60 50-60 上下轴方式 bobbin loading & unloading 顶心螺杆紧迫式 shaft type 制動 brake 电磁刹車 electromagnetic brake 外形尺寸 machine dimension(mm) 2300*1600*1900 2300*1600*1900 重量 machine weight(kg) 2000 2000

Machine type:40h-a number of wire:40 production diameter (mm):φ0.1-φ0.32 max. Tinning speed (mpm):300 pay-off method:pay-off with hairbrush annealing method:tubular annealing tinning method:double-oven hot dip (horizontal plating) tinning die scraping take-up method:1.2-1.5n·m torque motor 1.2-1.5n·m annealing length (m):4.5 spool dimension (mm):pt5-pt25 electrothermal power (kw):64.5 dynamic power (kw):12 total power (kw):76.5 traversing control:decelerate motor, independent traversing machine dimension(mm):18800*2200*1600
