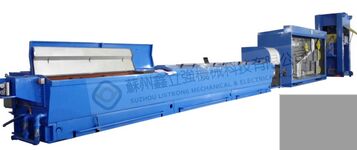

13DT Annealing Machine

Machine type:13dt-cu
max. Speed(mpm):1500
max. Number of drawing :13
inlet diameter(mm):φ8
outlet diameter (mm):φ1.20-φ3.5
die-change method:automatic rapid die-change system
control system:all alarms and parameters can be controlled and displayed on the touch screen.
Motor control:dc motor digital control
transmission method:by precision ground helical gears
mechanical reduction ratio:23.6%
drawing capstan:multi-step type, steel rim assembled with tungsten coating.
Max. Capstan :φ450
take-up bobbin :φ500-φ630
drawing motor(kw):350
leading motor(kw):55
take-up motor(kw):30
lubrication type for drawing:fully immersing
lubrication type for bearings:by enforced oil pump
subsequent equipment:continuous annealer drawing lubricant filter & cooling auto-spooler & down coiler pointing machine
