Copper Rod Breakdown Machine

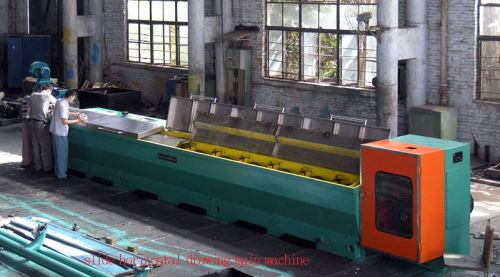

We are offering slide vertical continuous annealing copper rod breakdown machine.

The line is mainly used to draw from dia.8mm copper rod to dia.1.3-4.0mm copper wire. And it also can continuously anneal when the drawing. The products produced from this line accord with gb3953 requirements.



main data:

1) diameter of inlet wire: φ8 mm (cool rolling solid copper rod)

2) diameter of outlet wire: φ1.3-4.0mm

3) no. Of drawing mold: 13

4) diameter of drawing wheel: φ450mm x φ400mm x 65mm

5) max speed of outlet wire: 25m/s

6) annealing method: dc annealing

7) main motor: 280kw (dc), 1000r/min

8) motor z4-200-31 for capstan with fixed speed: 90kw(dc), 1500r/min

9) power of motor for take-up with double reels: z4-132-3, 22kw (dc, 2 sets)

10) annealing power: 360kva (max.)

composition of the equipment

1) pay-off frame with column and rocker 1 set

2) main machine for drawing with horizontal sliding 1 set

3) device for horizontal continuous annealing 1 set

4) device for tension controlling of accumulator 1 set

5) take-up machine with double reels 1 set

6) take-up machine in the way of loop 1 set

7) machine for crushing head through mold 1 set

8) electrical control system 1 set

9) steam generator 1 set

10) lubricating system for gear box 1 set.
