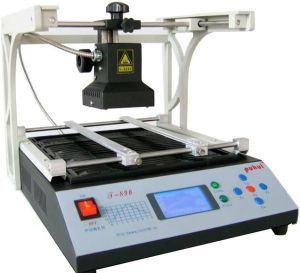

1. This machine has the strong and perfect function selection, with eight temperature waves in the memory software, you can select the right temperature wave according to the solder/unsolder request. 2. Intelligent temperature wave heating, can achieve the solder/unsolder automatically. 3. Three-dimensional adjustable lamp body, use laser light, suitable for unsoldering any-angle components. 4. Pid intelligent temperature control can avoid the ic damage due to the fast or uninterrupted warming up. 5. This machine has a super hot melt system, use infrared welding technology which is developed independently, heat is easy to pierce and distribute evenly, can suit for a variety of computer, notebook, play station’s bga components, especially in a northbridge/ southbridge chipset of computer. 6. Friendly human-machine operation interface, perfect lcd display, you can watch the whole repairing process very clearly. 7. Ergonomic design, practical and easily operated. Good build quality but at the same time light weight and a small footprint allows the t-890 to be easily bench positioned, transported or stored.

We are offering infrared reflow oven t-962a and soldering size is 300*320mm. The t962a is a micro-processor controlled reflow oven. The device is powered by standard 110vac 50/60hz (220vac model is available). User interface is implemented by way of t962a input keys and an lcd display. Pre-set heating modes are selected by user interaction with thermal cycle progress observed on lcd display. This self-contained reflow station allows safe soldering techniques and the manipulation of smd、bag and other small electronic parts mounted on a pcb assembly. The t962a may be used to automatically “re-flow” solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes. a windowed drawer is designed to hold the work-piece. Thermal cycle accuracy is maintained by closed loop micro-computer control with infrared heaters, thermocouple and circulating air. the t962a is simple to use, the soldering process is completely automatic defined by pre-defined thermal cycles.

We are offering bga rework station t-870a which can repair the chips under 50*50mm. Unlike air re-work systems, the t-870a uses an infrared source and optics to target heat to individual components without dislodging other smt parts by way of eddies air currents. infrared soldering technology with independent exploration capabilities via focus lenses which is included in the package. technician focused infrared heat is easy to target most component removal/replacement and re-work. The workstation has a 180x240mm a 800w controlled pre-heating system. Infrared heat source bulbs are long-lived, in-expensive and easily replaced. processor controlled set-point regulated temperatures with thermocouple feed-back. integrated and adjustable infrared (ir) eye protection. Can suitable for the entire component, especially micro bga component. Extra soldering tools are not necessary. It can solder/unsolder and re-work surface mount technology (smt) components 35-50cm in size training is illustrated in factory provided video. It can satisfy the maintain of computer, the notebook, the electricity swims and so on. Especially to the request of bga sealing off/repairs, and computer north/south bridge.
