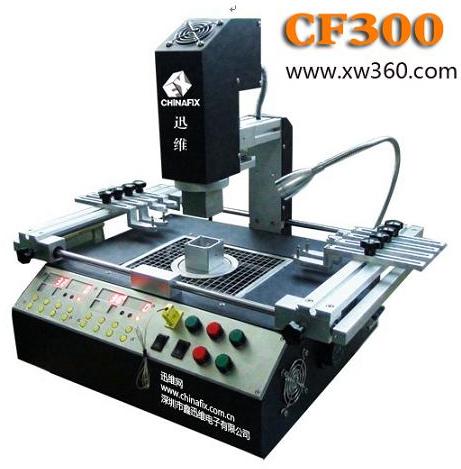

Chinafix Cf300 Mini Ir Bga Rework Machine

we offer chinafix cf300 mini ir bga rework machine.
cf300 working parameter:
model
chinafix cf300
solder type
leaded solderlead free
smd type
micro bga,bga,csp,qfp
pcb thickness
0.5mm~4mm
pcb size
80mm×80mm 415mm×325mm
heating mode power (upper)
hot-blast air 650w
heating modepower(bottom)
hot-blast air 650w
preheating mode power
ir 700w
pcb location mode
shape or tongs
driving mode
driving by stepping motor
control mode
temperature control instrument
temperature range
room temperature ~400°c
main power
2000w
supply voltage
110v220v
machine dimension
530mm(l)*385mm(w)*500mm(h)
machine weight
18kg
machine characteristic
1. hot air parts adopt exported ceramics heating chips which heats uniformly and
wears well.
2. the support design of three heating area,fine turning to support, in case of
welding area to sink
3. upper & bottom hot air control temperature independently, it can store 10 groups
and 16 stages temperature curve.
4. three temperature zones can be controlled independently to achieve reballing and
drying etc function
5. the third temperature zone adopts black infrared heating tube + exported
temperature switch control, heating fastly, temperature-control accurately.
6. machine part adopts high oxidation treatment, main machine chassis adopts.
thicken material in case of machine modification.
7. upper heating adopts non-labour stepping motor driver, it can be fine adjusted
to relative position exactly.
