We offer a complete product range of CGM-HH58F Automatic Folding Machine

CGM-HH58F Automatic Folding & Gluing Machine

We are offering our entire range of products in excellent quality packaging to guarantee zero damage during transit. For this, we have hired only professional packing personnel to ensure the same. We are backed by a well-structured and capacious storage unit wherein we store the entire lot in a secured manner. Moreover, we ensure complete security of the stored items.

Advantage :

Wide application to 90GSM paper, suitable to work on super-small boxes (like Gillette blade box 60*70mm) with added special parts.
High gluing accuracy Low noise, max.speed running noise is lower than 70db.

Features :

The machine consist of feeding unit, pre-fold unit, bottom lock unit, fold unit, compressing unit, conveying unit, transverse conveying unit.
Wall plates are made of hardened and tempered 20mm Q235steel plate and processed with CNC. Moving components adopt Taiwanese linear slide rail, high quality bearings, belts, resulted in stable high-speed running, high accuracy and long service life.

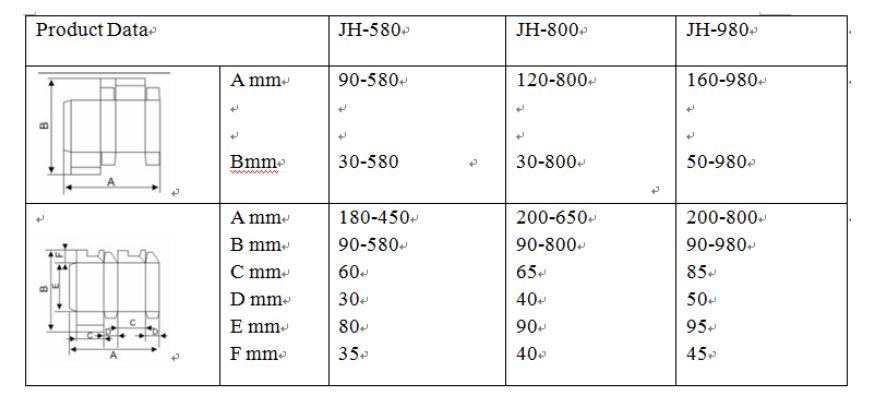

Specifications 01

Fold method	Common paste		4-fold paste		2-Side pastes	Bottom lock
Max. size(mm)	580×580		580×580		450×580	400×580
Min. size(mm)	80×80		80×80		200×100	200×100
GSM	200-800GSM
Paper feeding	Continuous feeding
Max.Machine Speed	320 Meters/Minute
Working speed	200 Meters/Minute
Width of box	80-580mm	80-580mm		200-450mm		200-400mm
Overall dimension	13m×1.3m×1.35m
Total Weight	5T	5T		5T		5T
Power	11KW	11KW		11KW		11KW
