Tangshan Credin Trading Co., Ltd

Hebei Province, China

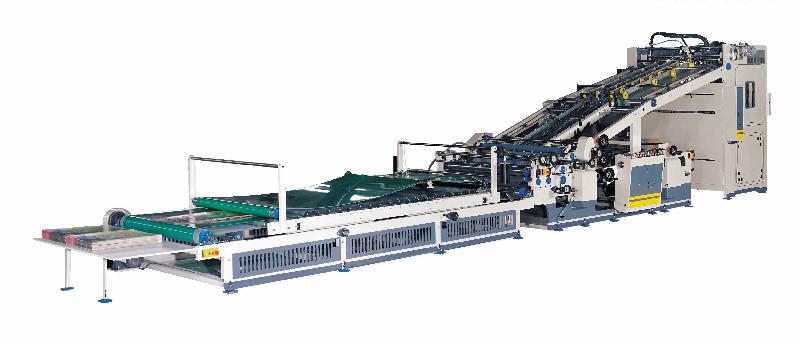

Our BZJ-1300 Flute Laminating Machine is reckoned for its impressive performance and precise engineering. Our team professionals ensure that smooth transactions are done and for that reason, we accept payments through letter of credit & money transfer. This makes us most reliable amidst the clients. Keeping the quality standards high, we make certain that prior to production, the inputs (raw material) are examined by the professionals to make the final product free from defects.

1 computerized high-speed laminating, up to 10 thousand pieces per hour; 2. Face paper feeding adopts high speed feeder, ensure paper feeding accuracy under high speed; 3 bottom paper feeding: servo motor driven sucking belts mechanism makes paper feeding accurately and smoothly. 4 high precision coating glue conveying mechanism combined with side glue baffles of gluing rollers and auto liquid level control system, realize no spill of glue under high speed running and glue can be collected and reuse. 5 more sensors control relative position between face paper and bottom paper; servo motors on both side of face paper runs independently, compensating difference and positioning face paper and bottom accurately and smoothly. 6 application of man-machine interface, monitors real time state of machine running, abnormal conditions, and record works, stable performance, ce standard. Technical parameters model gtm1412 gtm1650 max. Sheet size w×l(mm) 1400x1200 1650×1650 min. Sheet size w×l(mm) 450×450 450×450 . Gsm of bottom paper 200-500 200-500 max. Thickness of bottom paper(mm) 0.5-10 0.5-10 laminating precision ±1mm ±1mm max. Speed (sm) 140 140 total power(hp) 25 25 overall dimension (mm) 13.50×2.45×2.60 13.90×2.70×2.60 total weight(kg) 5500 6500

We are counted amid the quality-centric organizations and thus source the inputs only from the trustworthy sources. Also, these raw materials are checked against varied quality parameters. Backed by a well-established warehouse, we are able to store the products in a secured manner. Thus, we ensure complete security of the products from any kind of damage.

Features :

• Face paper elevator - To match high-speed feeding head, adopt high-strength turbine reducer.
  • Vice feeding mechanism realize non-stop feeding, saving stacking time, improving working efficiency.
  • Preloading unit adopt imported linear rail and lead screw, ensuring high precision and auto adjustment according to paper size, greatly reducing paper pile changing time.

• Top paper and bottom paper register system: adopt independent developed computer system , automatic calculating paper position and control front lay motion, realizing high-precision under high speed laminating. Side lays trace paper during the whole course, reducing idle running time and improving working efficiency.
• Bottom Paper Feeding System Servo motor driven powerful sucking belts, responding swiftly and quickly, ensuring high speed smooth feeding and avoiding paper jam for both cardboard and corrugated paper. Air volume is controlled by frequency converter.
• Gluing system
  • Adopt imported gluing pump; Stainless steel checkered gluing roller is elaborated with twice grinding, precision reaches ±0.005mm.
  • Coordinated with high precision glue coating roller, glue coating layer can be adjusted to 8 g/m², ensuring even coating for thin and think paper as well as A, B, C, E, F flute.

• Electric System Servo systems, man-machine interface, PLC coordinate together, real-time monitor working state, abnormal places. Maintenance state working record can also be checked and shown. Elaborated with CE standard, performance and security is combined perfectly.

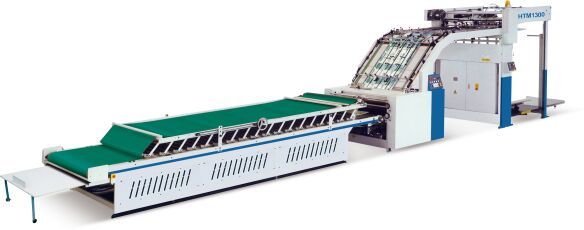

The HTM-1300 Flute Laminating Machine, we offer, is acclaimed for its make and durability. Being a blue-chip firm in this arena, we have set strong tie-ups with the leading e-commerce merchants who work for us and guarantee safe and secure transactions. Motivated by the aim to deliver nothing short of the best, we have grown as a reliable supplier of Automatic Flute Laminating Machine HTM-1300 1450 1600 in the market.
